VIPPAI New Cosmetics Skin Care Medical Face Mask Making Machine Collagen Fully Automatic Mask Maker Equipment
Product Description

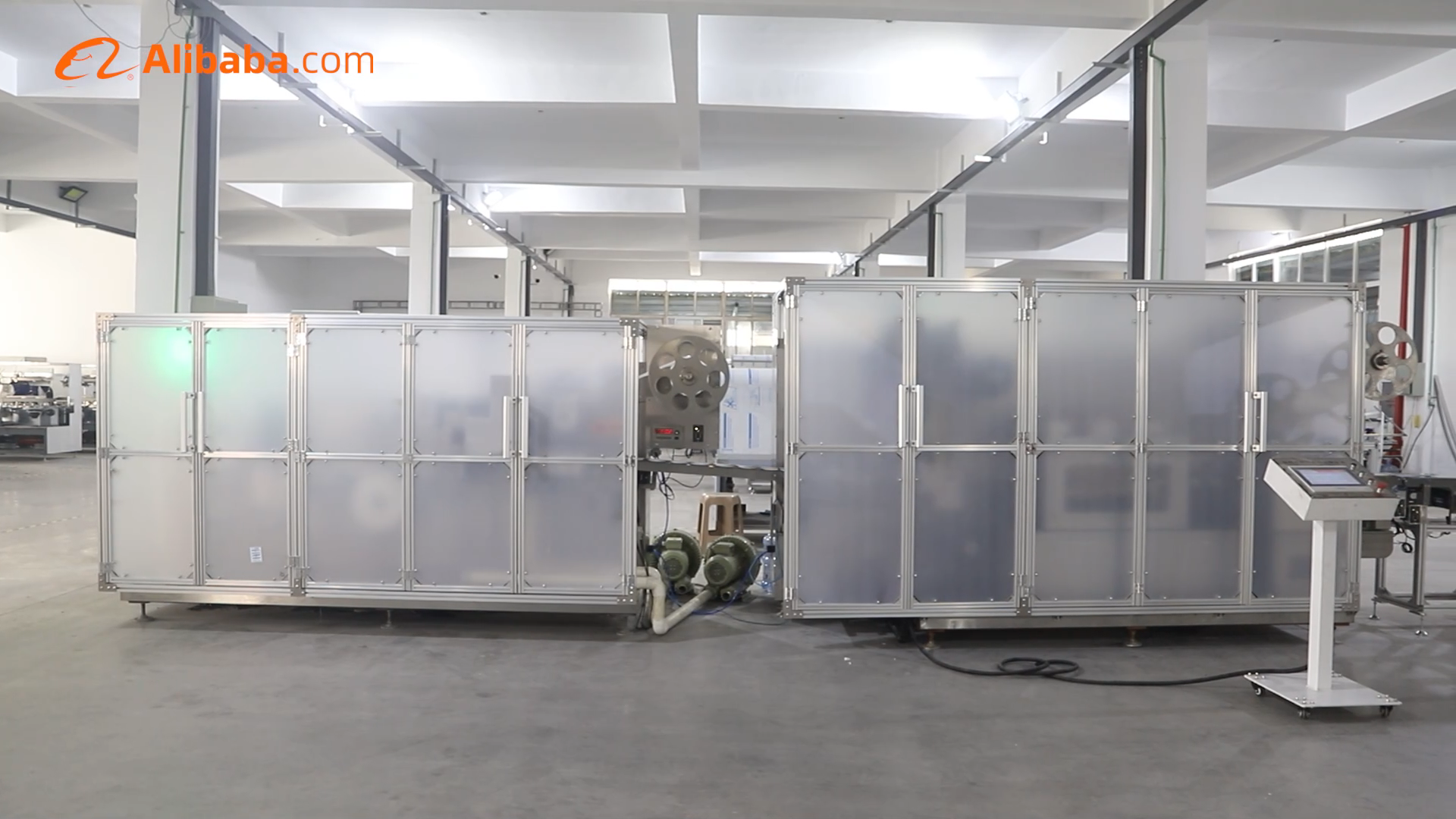

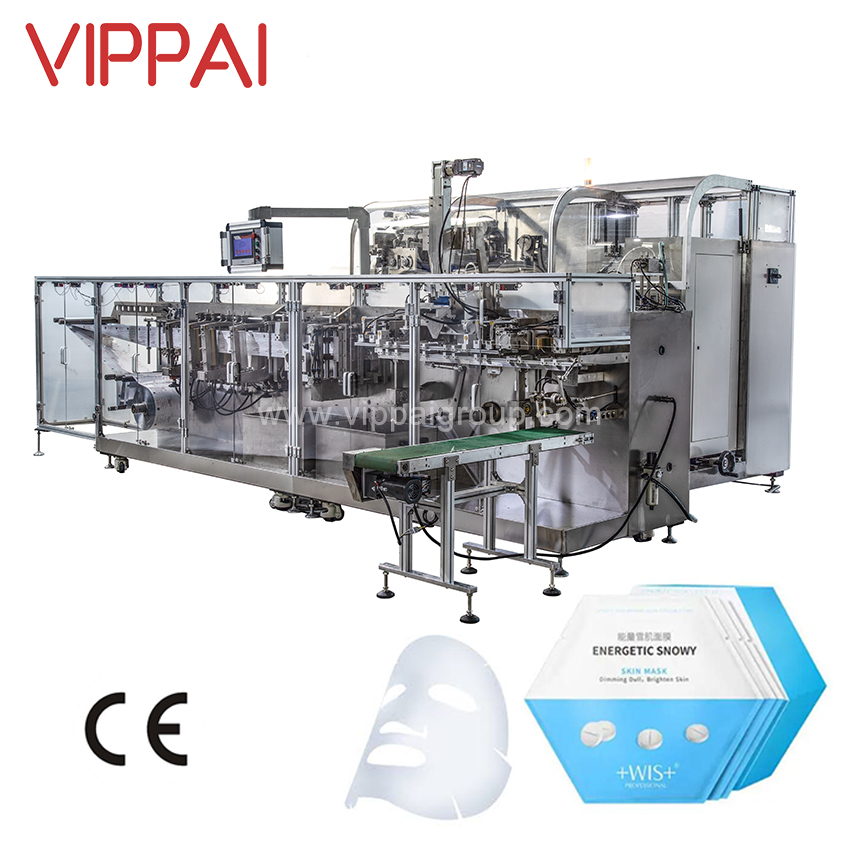

VPD400 Fully Automatic Facial Mask Packing Machine (In-Line Bagging)

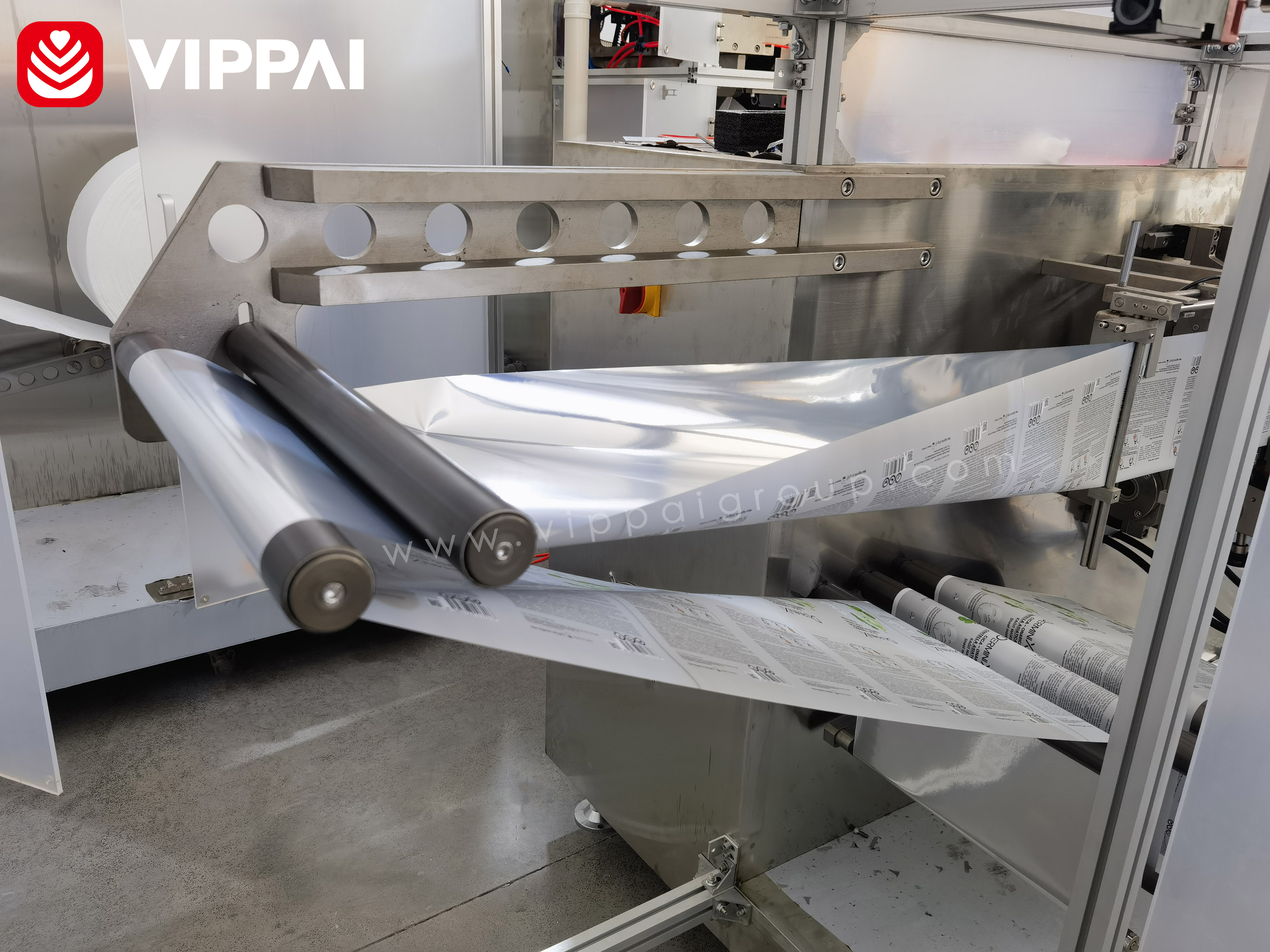

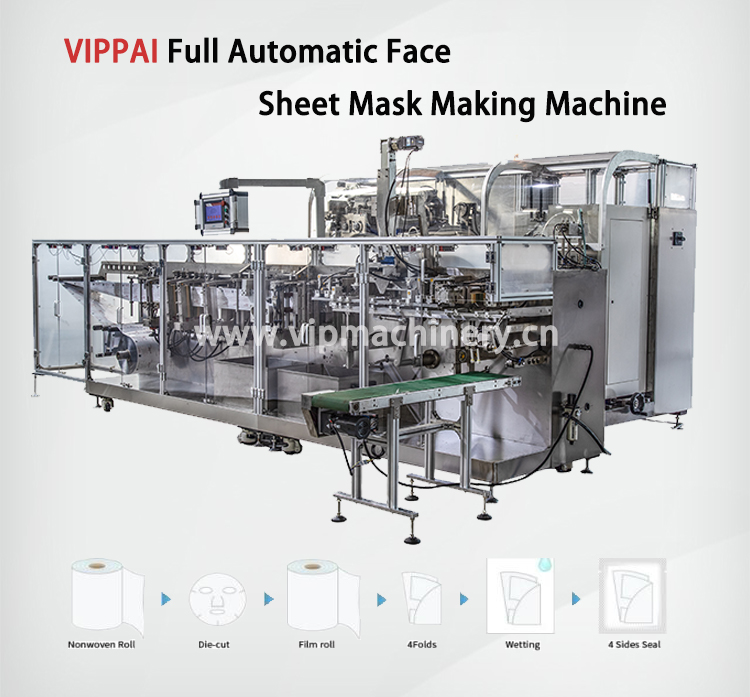

The VPD400 is a high-performance mask production packaging machine designed to fully meet the requirements of pharmaceutical-grade GMP production equipment. By utilizing roll film feeding, the machine completes the entire process: cut film forming, mask folding, online bag making (or prefabricated bag), essence liquid addition, and bag sealing.
This advanced system replaces multiple traditional units including punching, forming, folding, filling, and sealing machines. It significantly reduces the labor force by 8-15 people and optimizes workshop area usage while effectively solving secondary pollution issues during production.
Key Benefits
📊
Labor Efficiency: Saves 8-15 people's labor through automated production.
🛡️
Contamination-Free: Entire process is completed within a shield to ensure zero contamination.
🏆
GMP Standards: Fully complies with pharmaceutical grade GMP certification requirements.
💰
Cost Saving: Reduces packaging material costs by 20-30%.
⚙️
Servo Precision: Uses stable servo settings for high-end metering and easy adjustments.
🔍
Inspection Ready: Balcony design allows for easy manual or visual online inspection of black spots or unqualified products.
Technical Specifications
| Model | VPD 400 |
|---|---|
| Packing Bag Style | Flat bag, corner pocket |
| Packing Material | Composite materials (film, aluminized film, PE/PP, etc.) |
| Packing Material Size | L: 100-225 mm | W: 100-180 mm |
| Packing Speed | 50-70 bags/min |
| Liquid Filling Capacity | 0~50ml (Accuracy: ±1ml, Viscosity up to 20000cp) |
| Power Supply | 380V 50/60HZ, 18KW, Three Phase |
| Machine Dimensions | 7300 x 2860 x 2230 mm |
| Machine Weight | 7000 kg |
Production Details

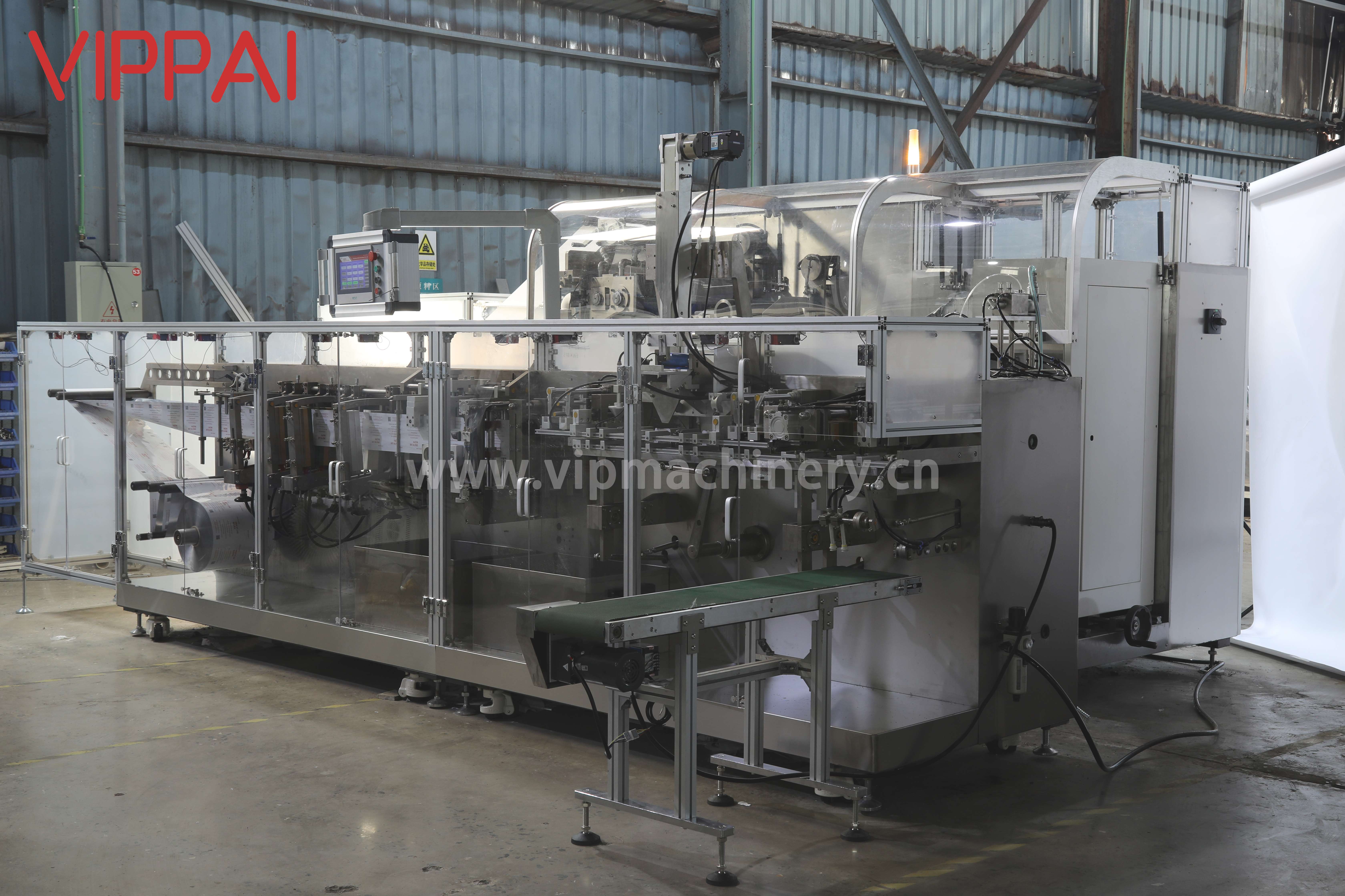

Premium Construction
The machine adopts 304 stainless steel, providing a beautiful appearance and easy cleaning, fully complying with GMP standards.

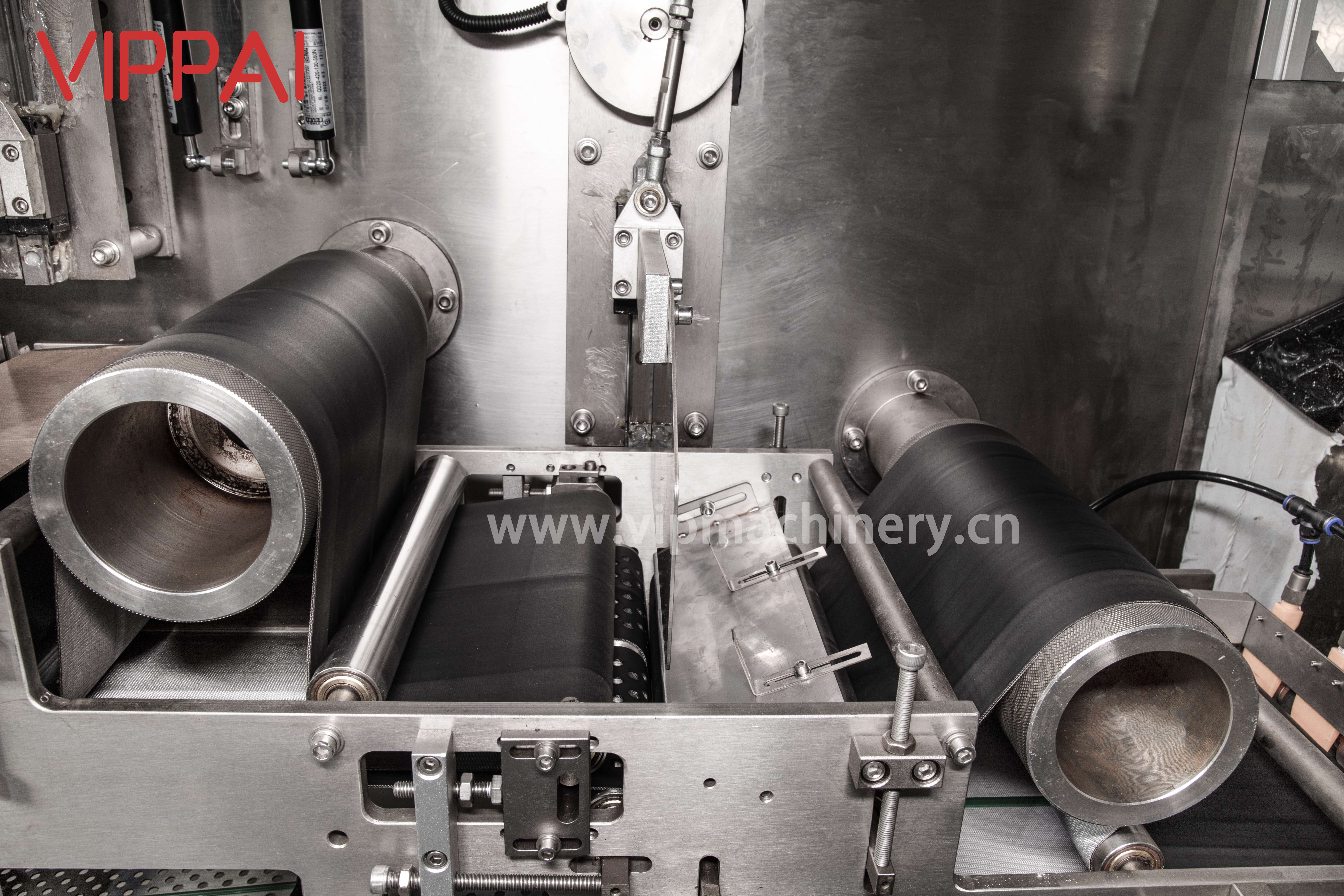

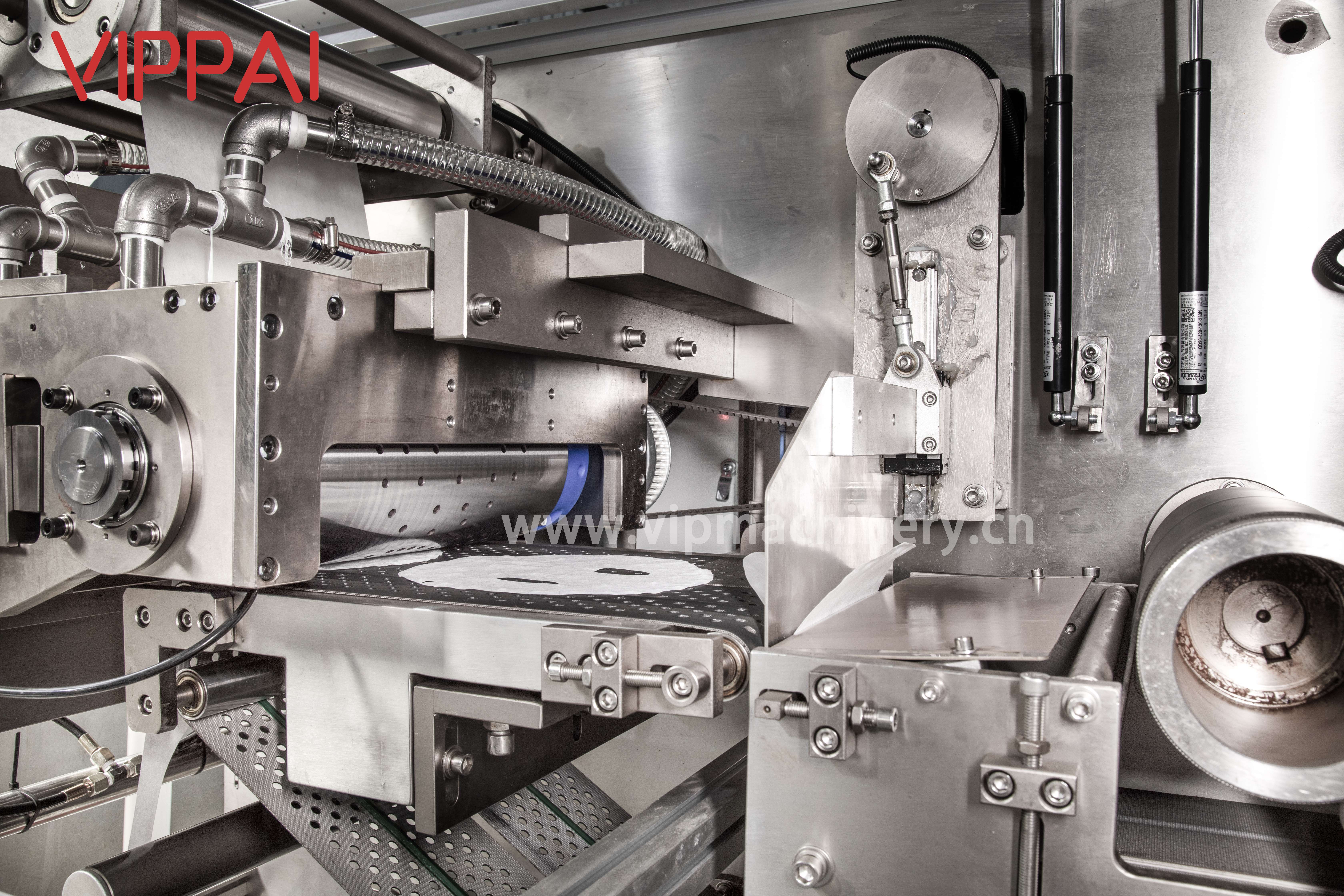

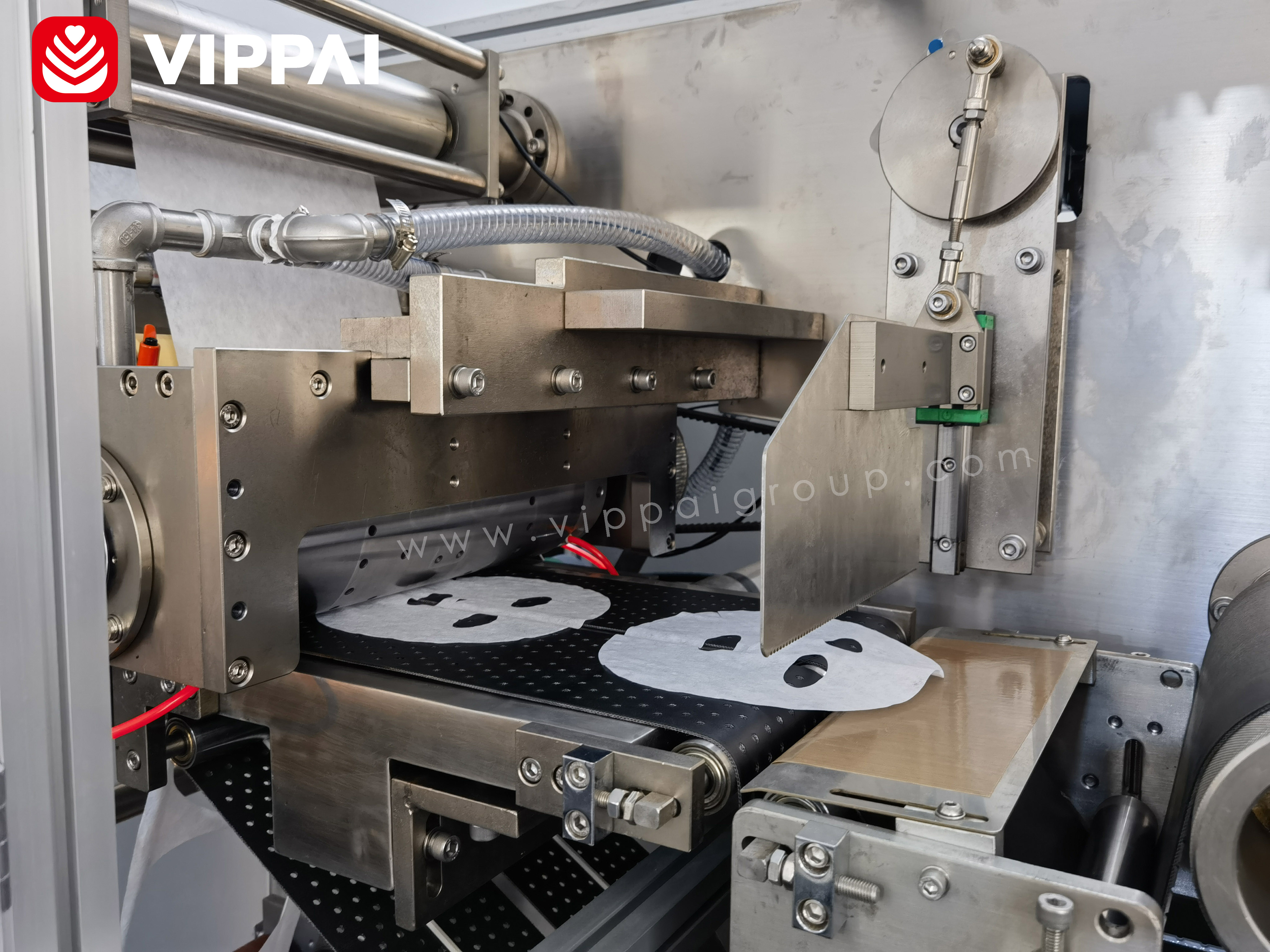

Die Cutting & First Fold

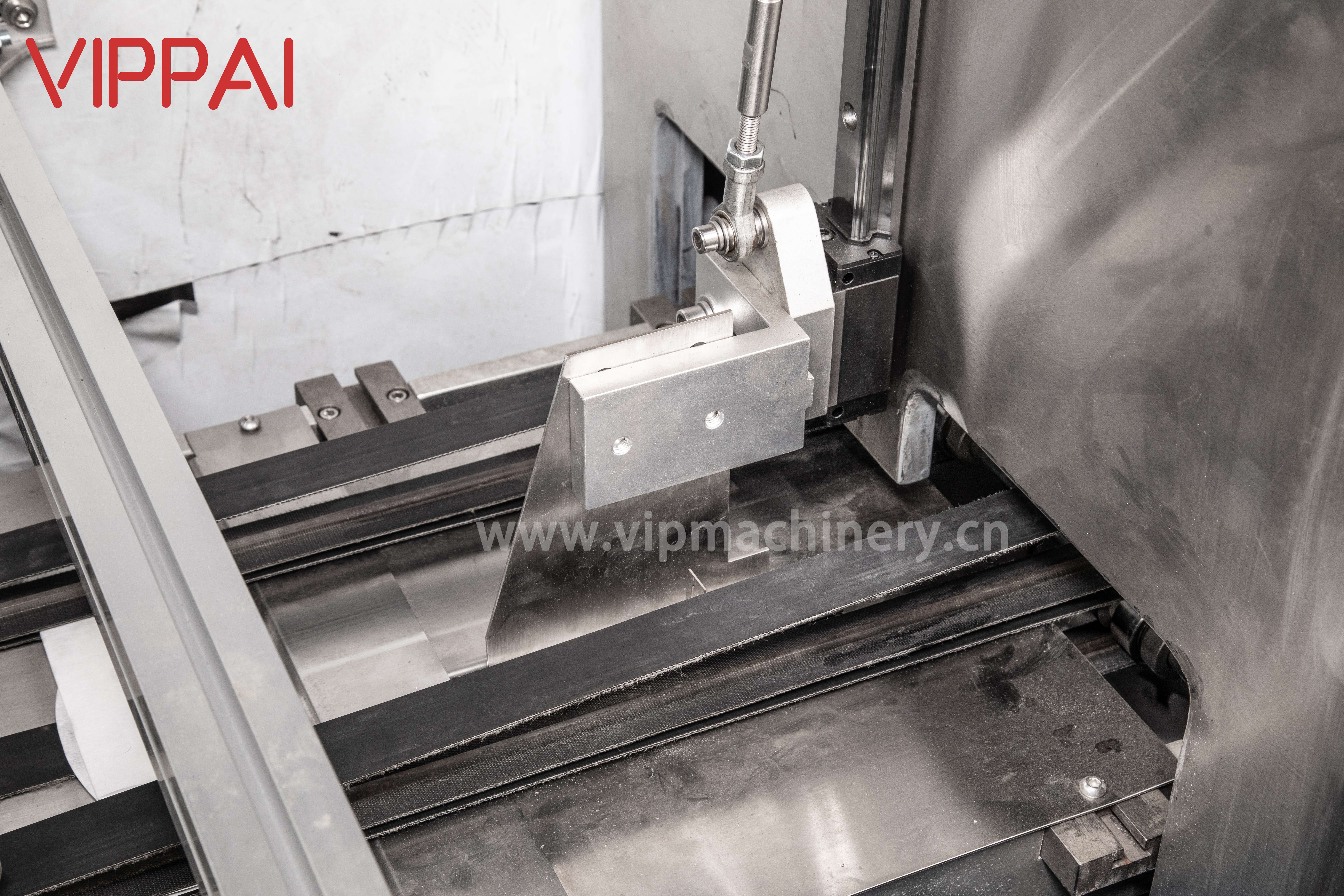

Equipped with a sheet mask die-cut device and a first-fold mechanism that precisely folds the mask in half.

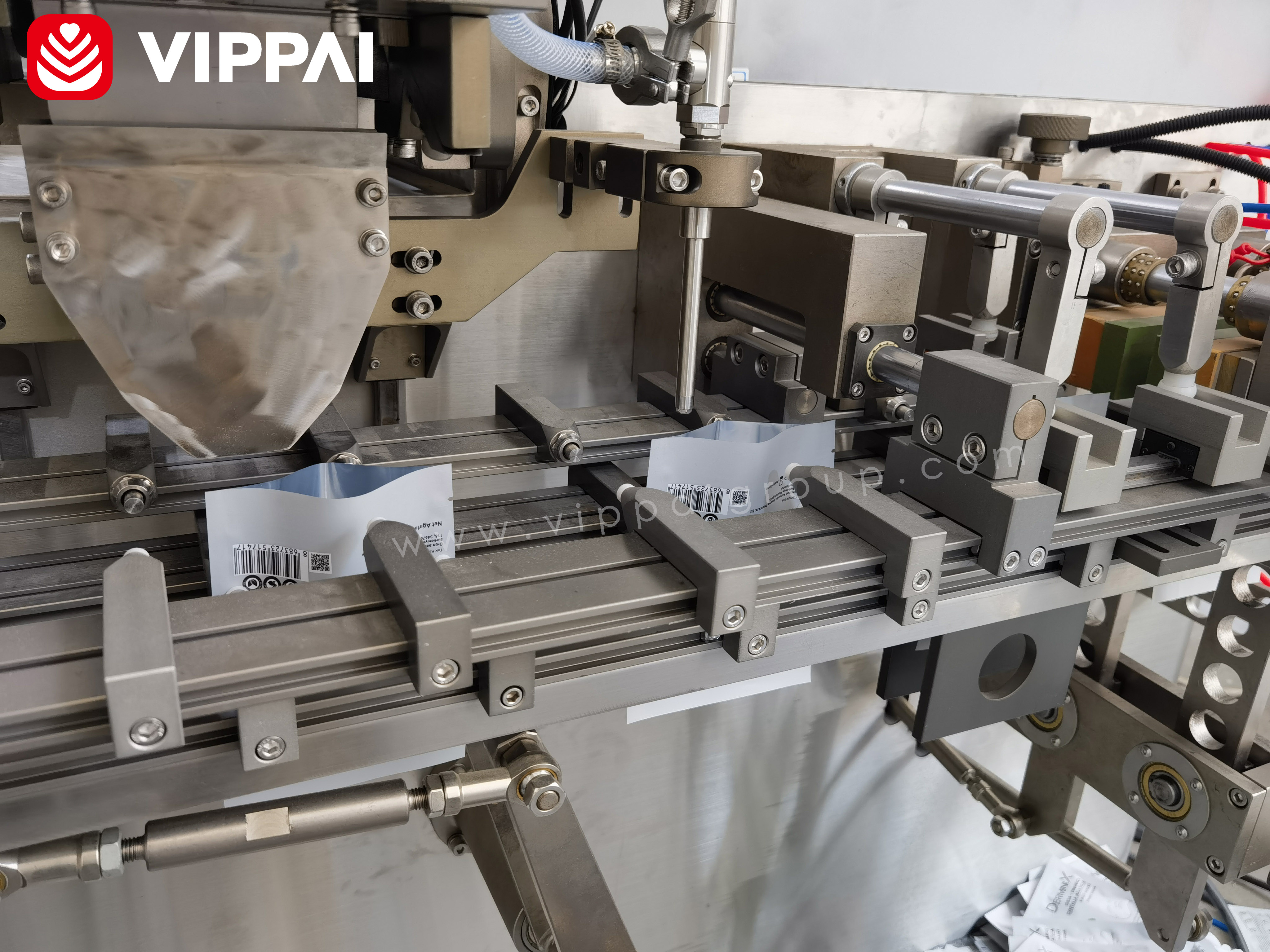

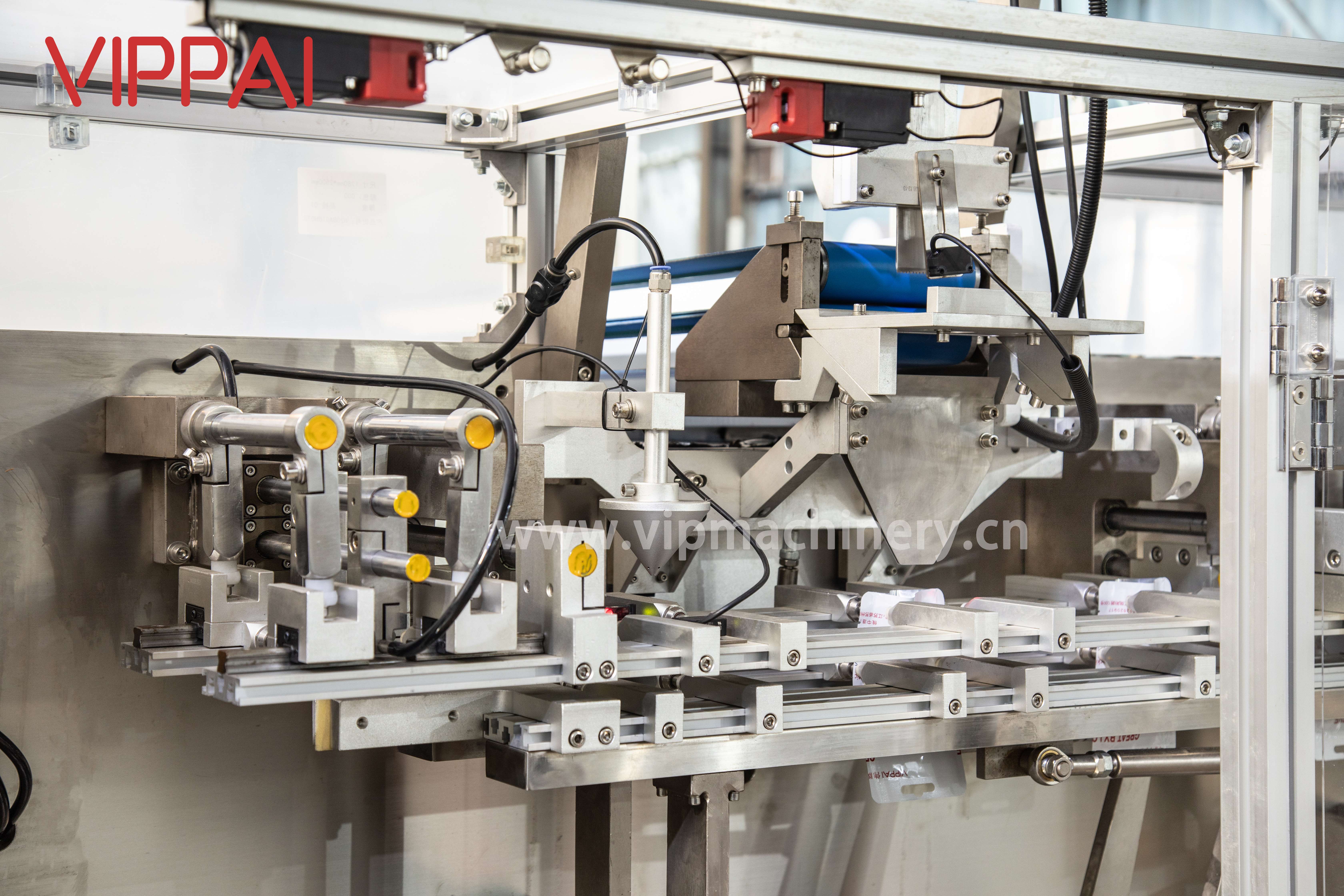

Filling & Insertion
Integrated devices for bag opening, inserting the sheet mask into the bag, and precision liquid essence addition.

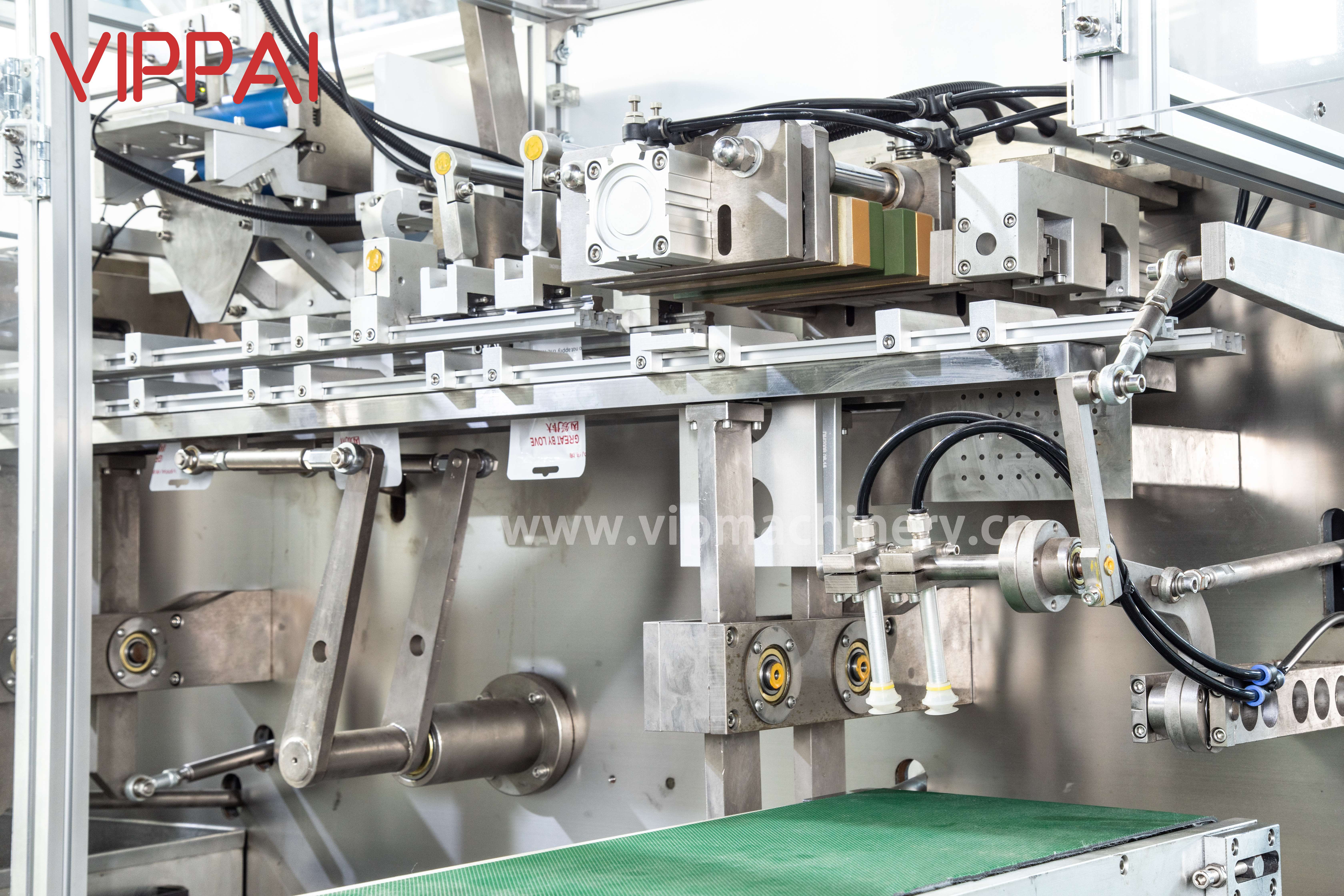

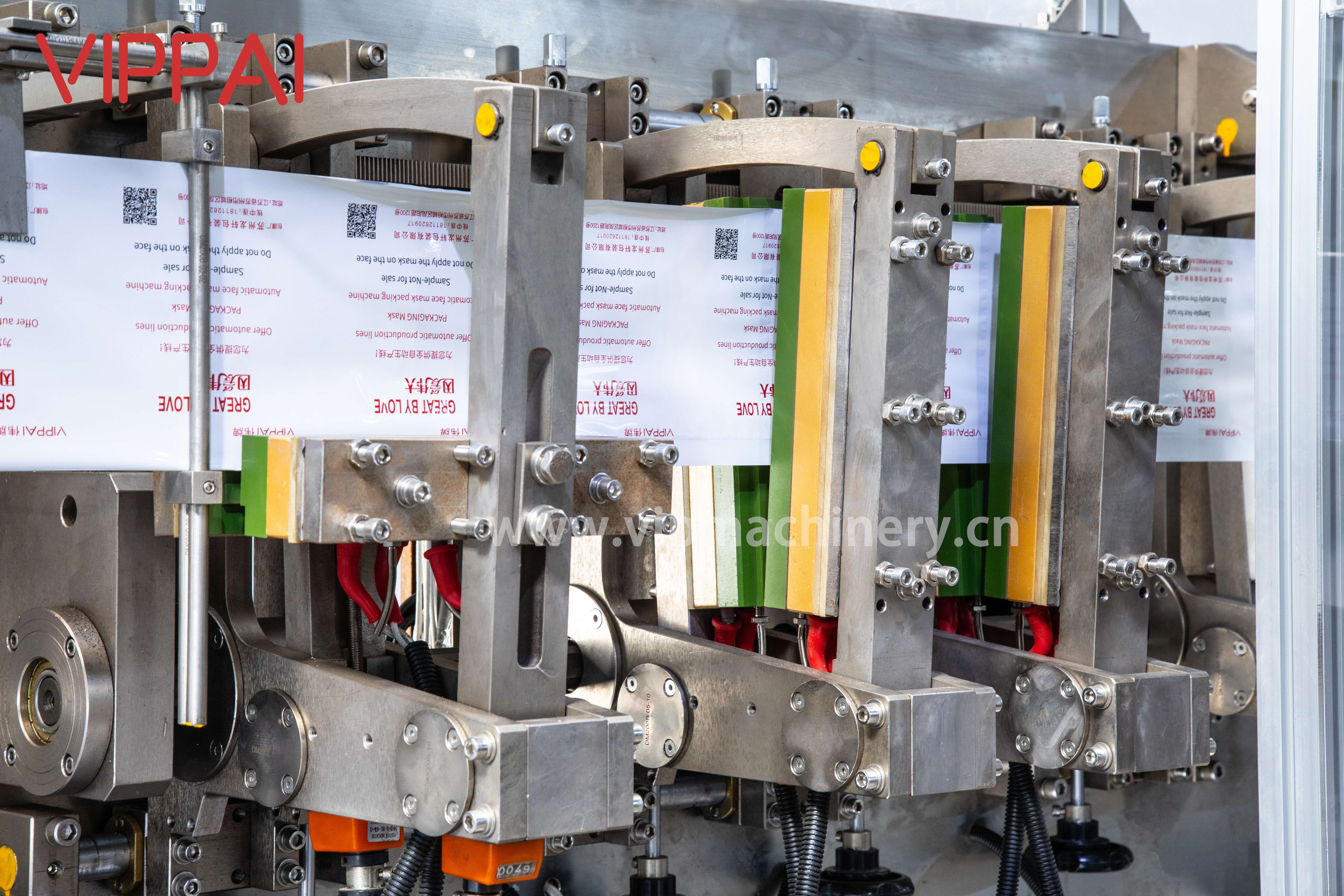

Final Sealing & Coding
Heat sealing the top of the mask bag, date printing, and final delivery of finished products.

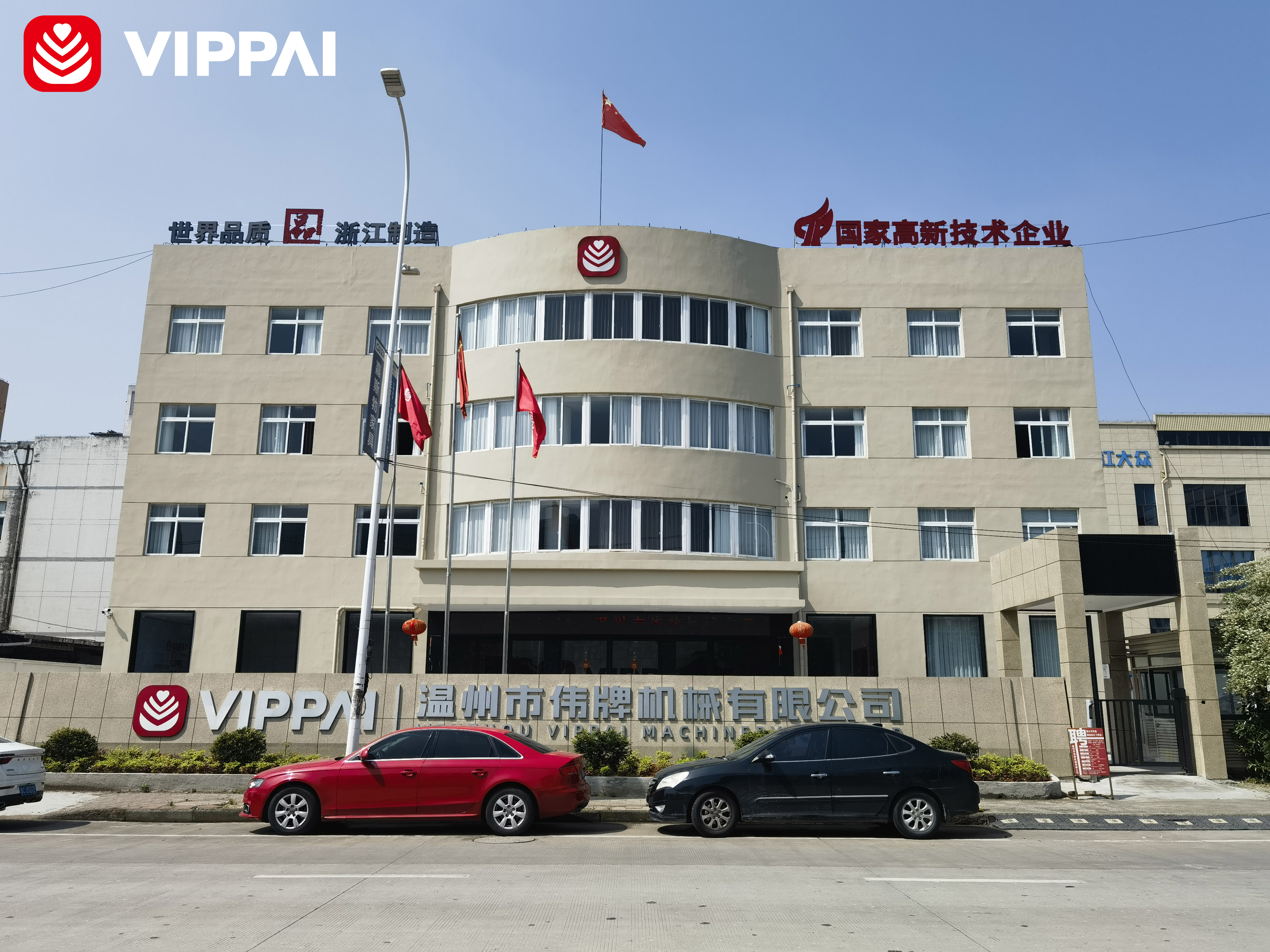

About the Manufacturer
Specialized in the Packaging Machinery Industry since 2003, we have developed into a leading brand with a senior technical team. Our expertise covers Wet Wipes Packing, Face Mask Making, Cartoning, and Bagging Machines suitable for Pharmaceutical, Food, Cosmetics, and Health Care industries.
We hold numerous national technical patents including:
- Packaging bag slitting and discharging devices
- Mask Corner Conveying Mechanisms
- Advanced folding and traction devices
- No-displacement hollow placement conveyors

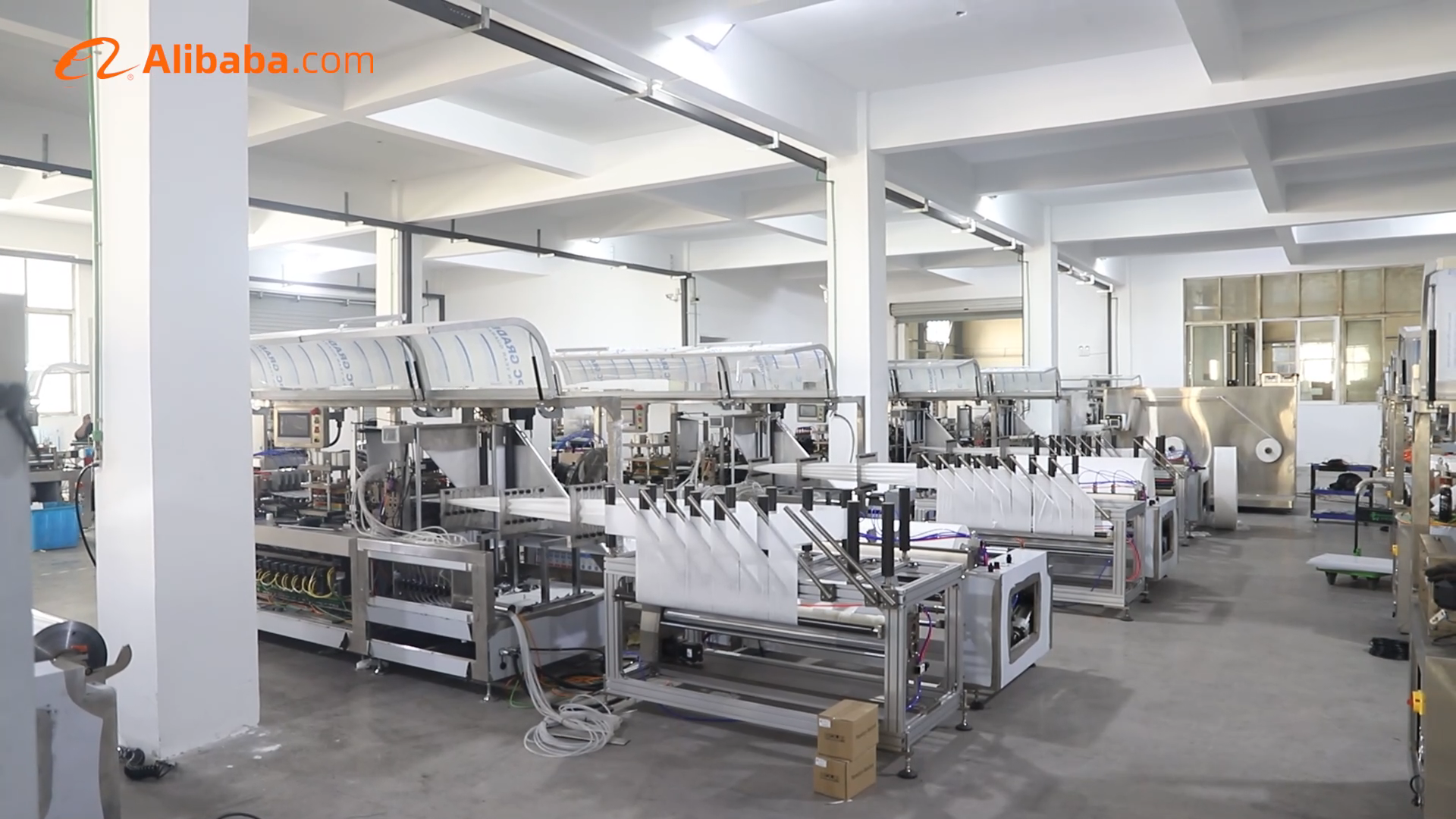

Global Presence & Quality
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a specialized manufacturer and factory in the packaging machinery industry since 2003.
What is your primary market?
Our machines are widely exported to over 20 countries, including Korea, India, Russia, Brazil, USA, UAE, and many regions across Western Europe and Southeast Asia.
How do you ensure machine quality?
Quality is our core principle. Every machine undergoes at least two tests before shipment—one by our internal team and a second together with the customer. All machinery is CE tested.
What kind of after-sales service do you provide?
We offer 24-hour online video support. Machines are sent with a full set of English manuals and instructional videos from installation to production.
What packaging materials can the VPD400 handle?
The machine is compatible with various composite materials, including aluminized film, polyethylene, and polypropylene.
Does the machine meet GMP standards?
Yes, the machine is designed with a 304 stainless steel body and a protected production shield to fully meet pharmaceutical-grade GMP requirements.
