Factory direct Vacuum Emulsifying Machine Skincare Mixing Machine Face Cream Making Equipment
Product Description
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Features and Advantages

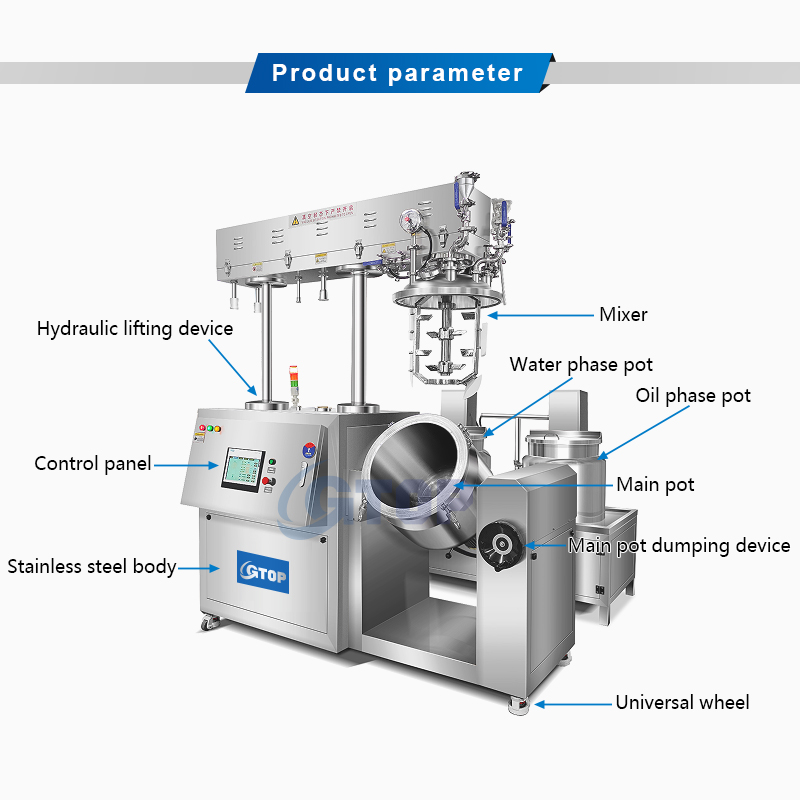

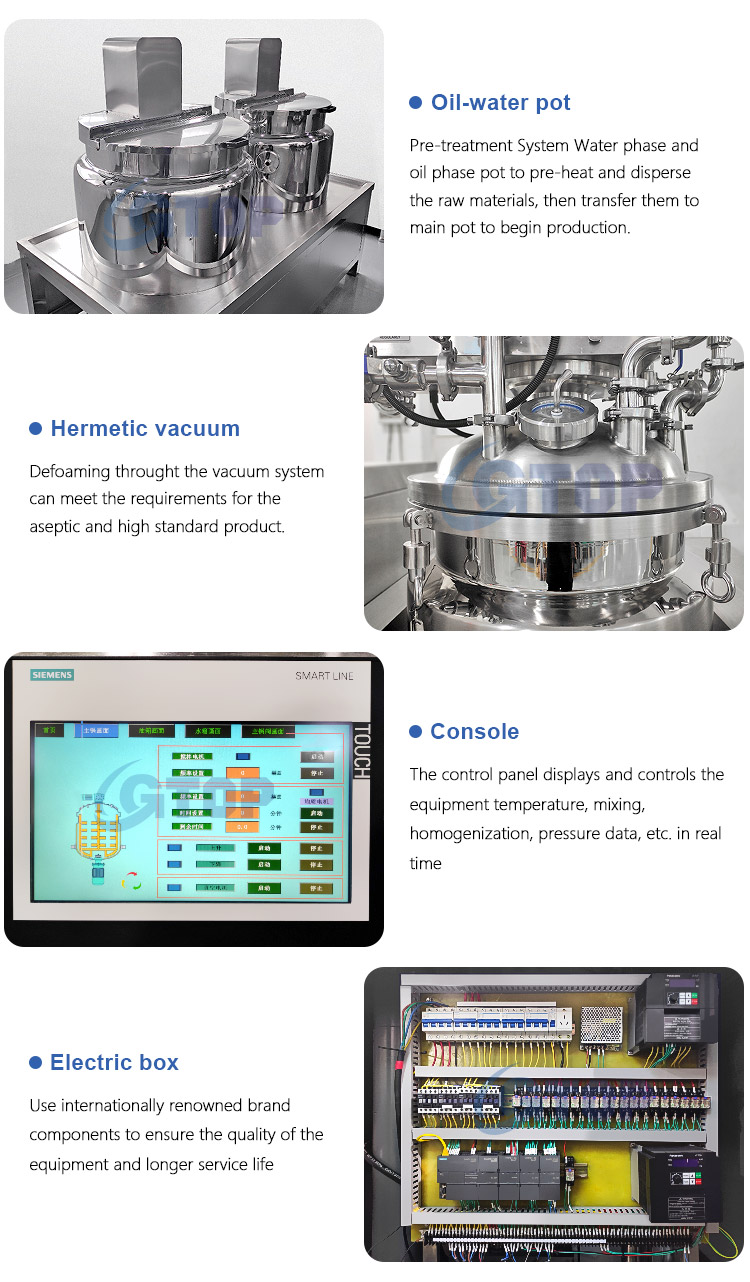

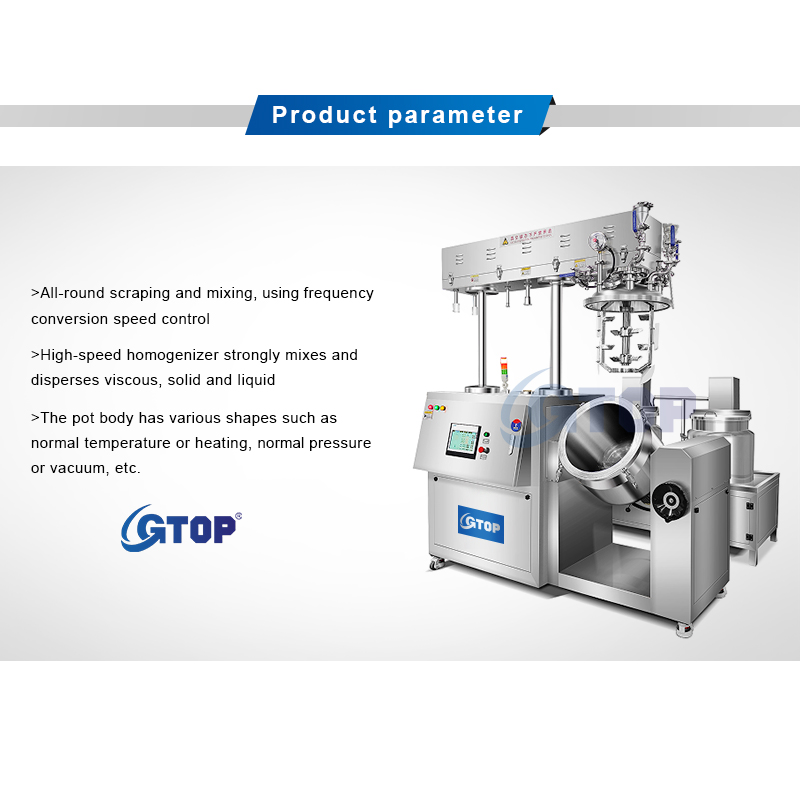

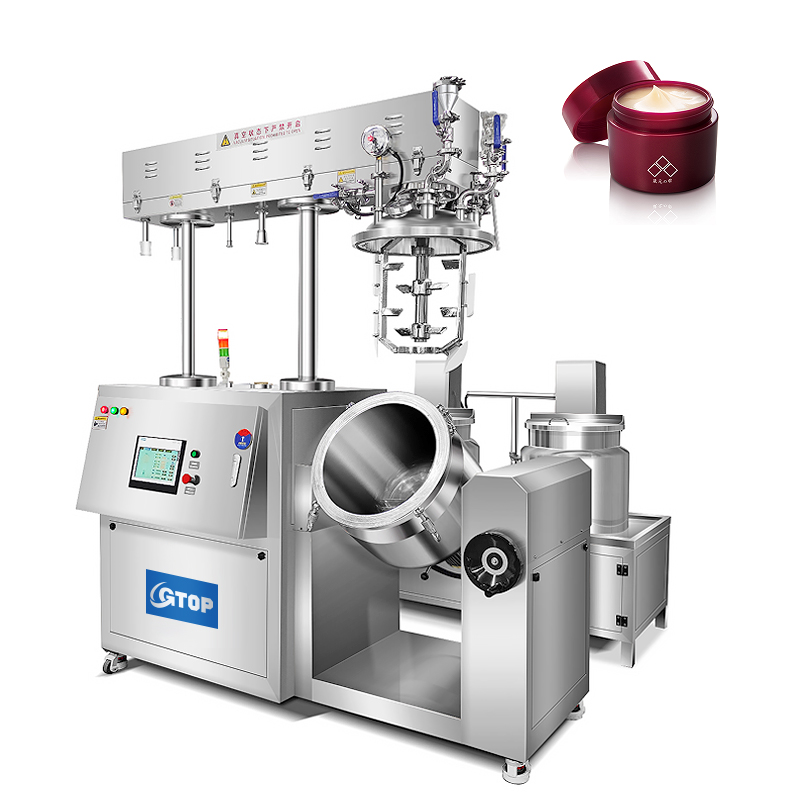

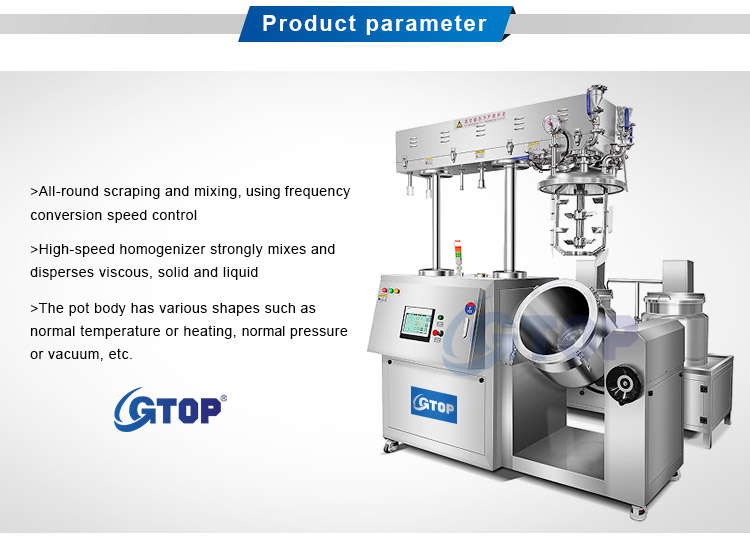

- 1 The vacuum emulsifying mixer machine is composed of water pot, oil pot, emulsifying pot, operation platform, vacuum system, lifting system etc.
- 2 Material can be heating or cooling according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer's requirements.
- 3 The tank body are made of the high quality stainless steel and all contact parts adopt the SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.

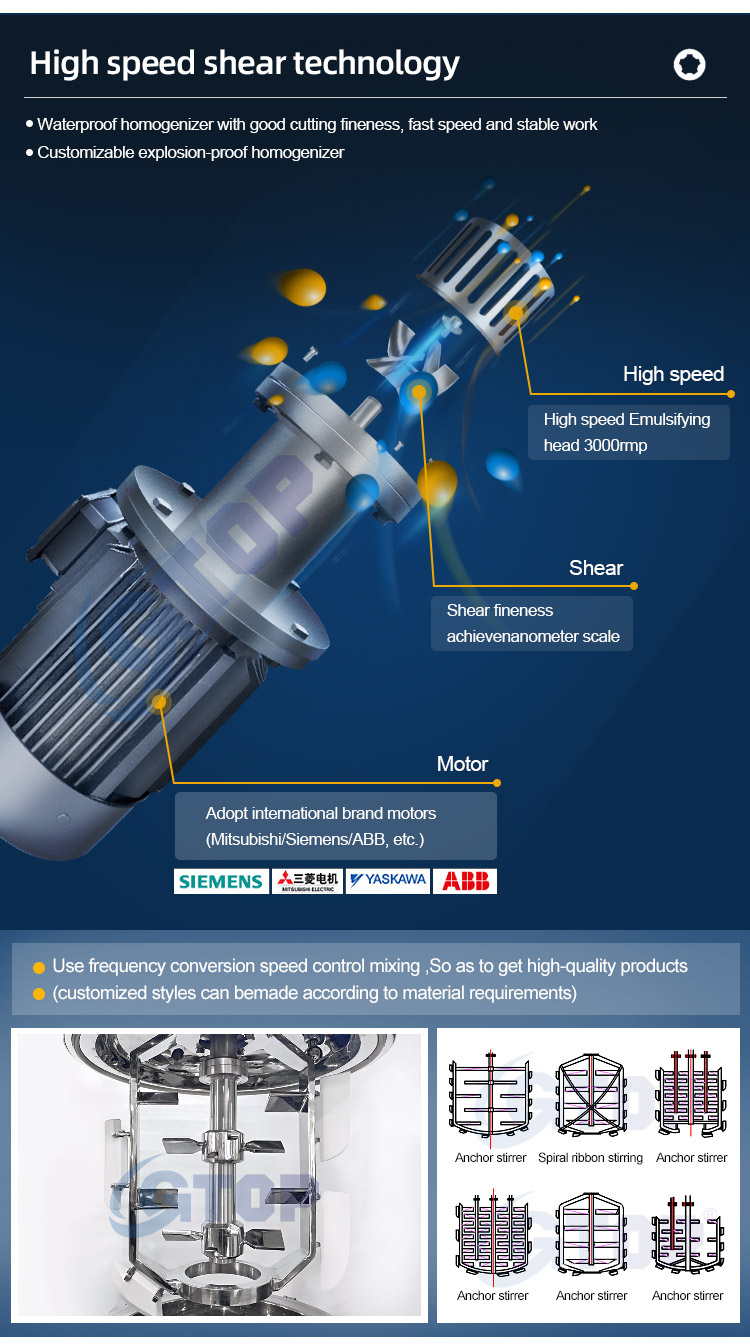

- 4 Various forms of blending vanes are suitable for production of different types of production of products.
- 5 The wall scraping mixer adopts frequency converter to adjust the mixing speed, suitable for various products based on clients' requirements.
- 6 The mixing system includes single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. According to your request, we can customized the suitable machine for you.
- 7 Vacuum defoaming can make the material reach requirement of aseptic. It adopts the vacuum to suck the material especially for the powder material, which can avoid the dust.

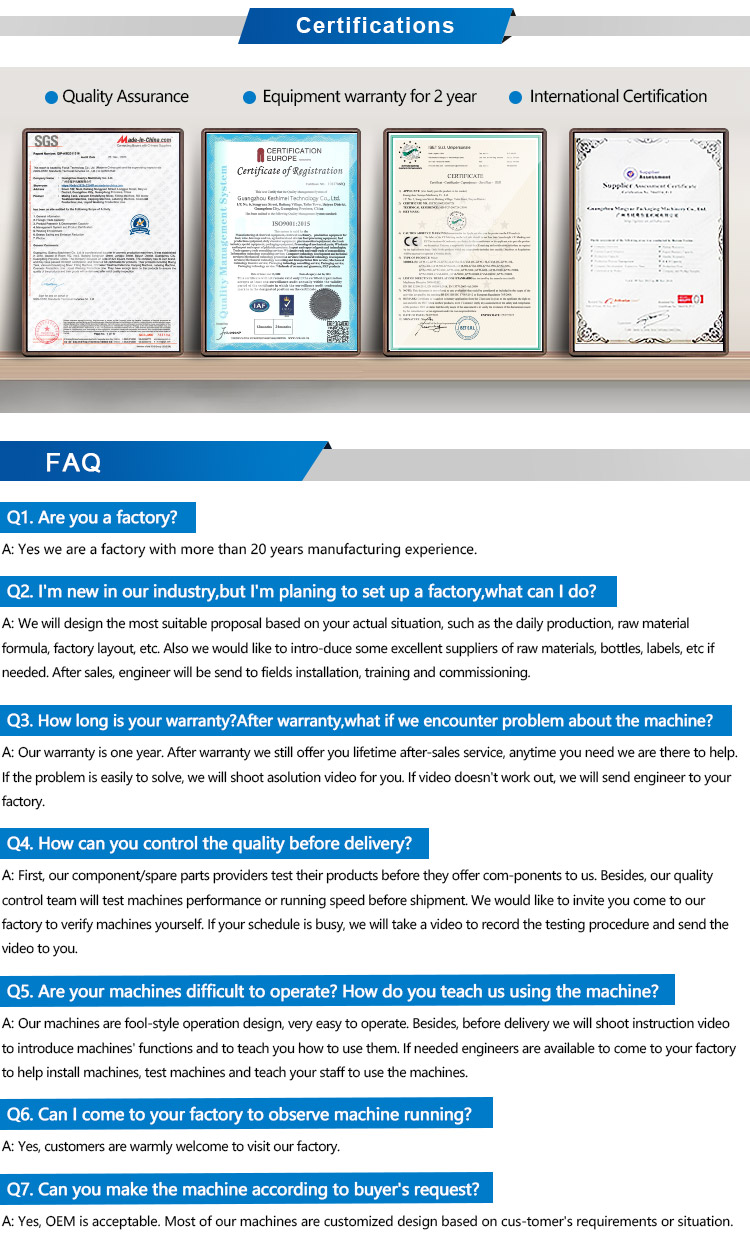

- 8 It is fully in accordance with the GMP standard production and passed CE certification.
Specification
| Model | Capacity (L) | Mixing power (kw) | Mixing speed (r/min) | Homogenizing power (kw) | Homogenizing speed (r/min) | Heating method |
|---|---|---|---|---|---|---|
| GT-E-20 | 20 | 0.37 | 0-63 | 0.75 | 0-3000 | Steam heating or electric heating (optional) |
| GT-E-50 | 50 | 0.37 | 0-63 | 2.2 | 0-3000 | |
| GT-E-100 | 100 | 1.5 | 0-63 | 3 | 0-3000 | |
| GT-E-150 | 150 | 1.5 | 0-63 | 3 | 0-3000 | |
| GT-E-200 | 200 | 1.5 | 0-63 | 4 | 0-3000 | |
| GT-E-350 | 350 | 2.2 | 0-63 | 4 | 0-3000 | |
| GT-E-500 | 500 | 2.2 | 0-63 | 5.5 | 0-3000 | |
| GT-E-1000 | 1000 | 5.5 | 0-63 | 9 | 0-3000 | |
| GT-E-2000 | 2000 | 5.5 | 0-63 | 11 | 0-3000 |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Frequently Asked Questions
Q:
What types of products can be manufactured using this vacuum emulsifying mixer?
This machine is specifically designed for producing stable emulsions, creams, milk, gels, balms, lotions, ointments, and toothpastes. It is widely applied across the chemical, cosmetic, pharmaceutical, and food industries.
Q:
What materials are used in the construction of the mixer?
To guarantee hygienic standards and durability, all material contact parts are made of high-quality SUS316L stainless steel. The tank body and external piping undergo a thorough mirror-polishing process.
Q:
How does the vacuum defoaming system function, and what are its benefits?
The vacuum defoaming system removes air bubbles from the mixture during processing to meet strict aseptic requirements. Additionally, the integrated vacuum system allows for clean, dust-free suction of powder materials directly into the pot.
Q:
What heating and cooling options are available for the mixing process?
The material inside the main tank can be heated or cooled dynamically according to your technological recipe. You can select either steam heating or electric heating depending on your factory's utility specifications.
Q:
Are custom configurations available for different capacities and operations?
Yes, customized solutions are available. We offer multiple blending vane configurations, single-way/double-way/helical ribbon mixing options, and single-cylinder or double-cylinder lifting structures to fit your production volume requirements.
Q:
Does the equipment comply with international manufacturing standards?
Yes, the manufacturing of this vacuum emulsifying mixer is fully in accordance with the GMP (Good Manufacturing Practice) standards and has passed CE certification for compliance and safety.
