220V Full Automatic Perfume Capping Machine Crimping And Lid Pressing For Perfume Bottles Industrial Machinery Equipment
Product Description

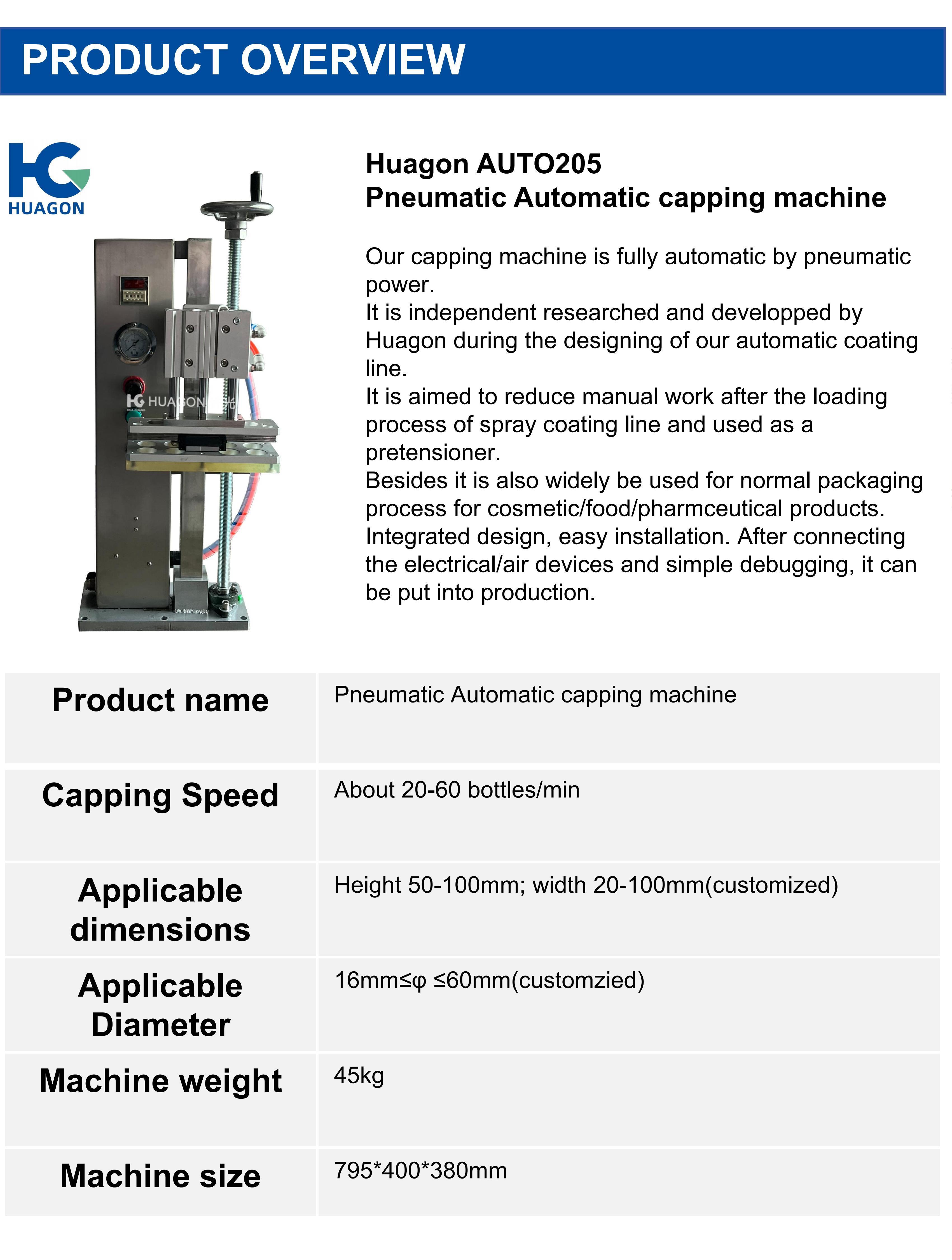

Product Overview

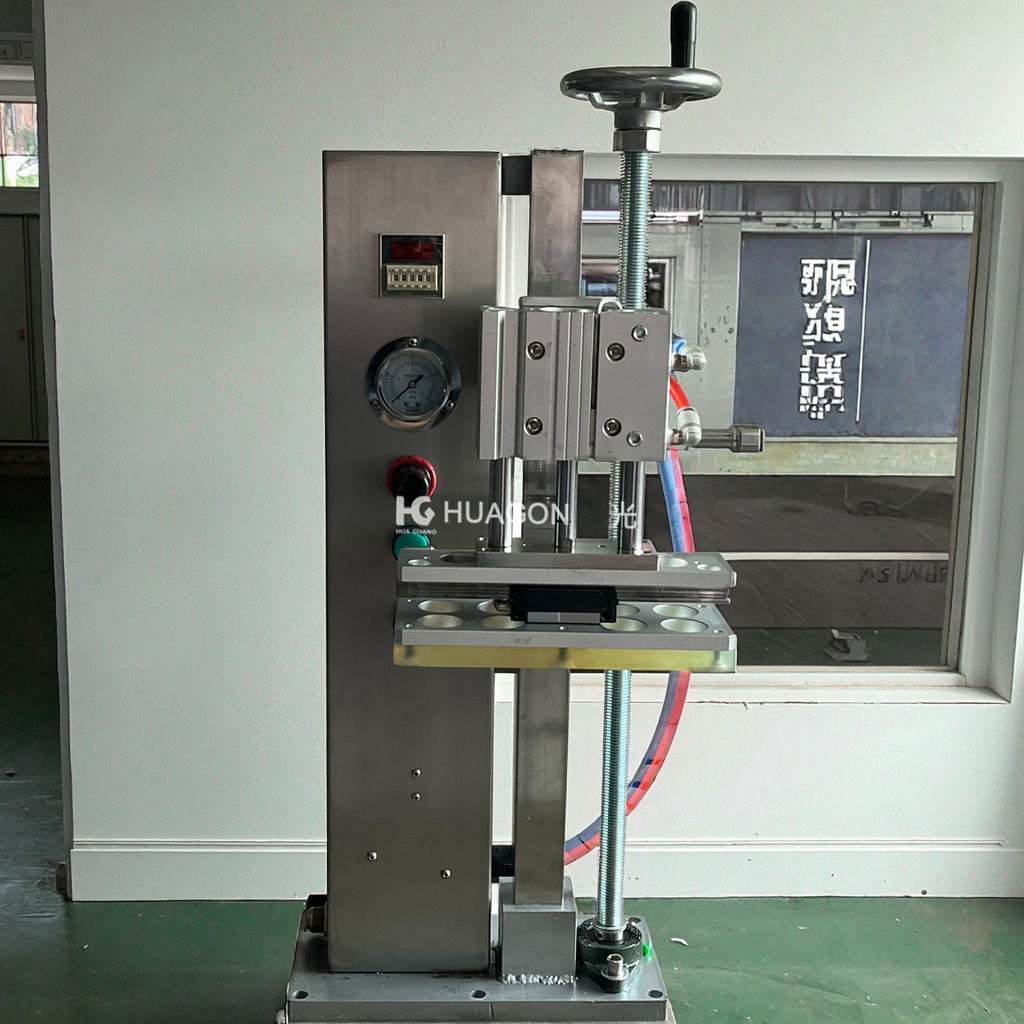

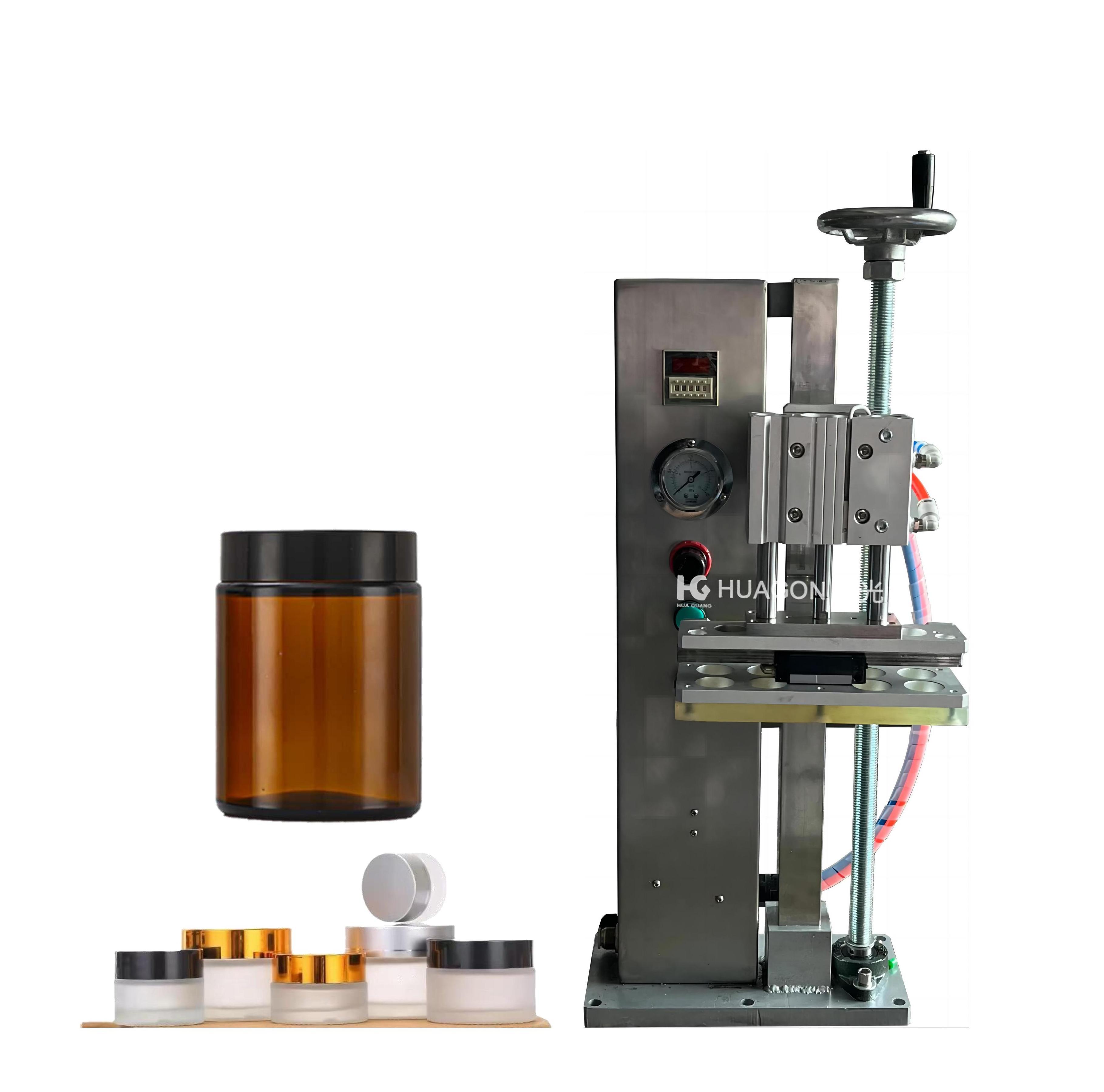

Capping Machine Also Known as Glass Bottle Locking Machine or Aluminum Cap Sealing Machine, It Is a Special Capping Machine Specially Designed for Caps. It Is Generally Customized with Different Sizes of Locking Cap Devices Based on the Bottles and Caps Provided by the User. Vial Capping Machine Is a Clamping Type Closing Machine, Fastened to the Bottle Neck Flange. The entire machine consists of the main body, Countertop, Clamping Device and Pneumatic Control System.
Suitable for Sealing Caps on Glass Bottles of Various Sizes, As: Potion bottle, Powder Bottle, Perfume Bottle, Oral Liquid Bottle, Locking Packaging for Essential Oils and Other Small Glass Bottles with Aluminum Caps.
Product Advantages
1.Completing the Entire Lock Cover Process Requires Only 1-2 Seconds time.
2.The Machine Uses a Pneumatic Device as the Source of Power, Plug in the Trachea and You Can Work, Pneumatic Control, Easy to operate and maintain.
3.The Machine Works by Lifting It down and Directly Grabbing the Mouth, Uniformly Tapered, Good sealing performance, The bottle cap aligns accurately, The surface shows no signs of wear, Fast.
4.The Height of This Machine Can Be Adjusted, To Meet the Locking Lid Needs of Packaging Materials of Different Heights, Replace Glass Bottles Faster, Higher Efficiency.
5.Core components are durable and long-lasting, The Mold for the Bottle Mouth Is Small and Sturdy, The Head Is Processed Using Multiple Processes, High strength, Wear-Resistant, Long lifespan, Than Ordinary 304 Stainless Steel Durable Claw.
6.Explosion-proof Bottle Device, Can Effectively Avoid Bottle-Breaking Accidents, Reliable.
7.The Machines Are All Made of Stainless Steel, Aviation Aluminum Alloy Construction, The whole machine has a novel design, Beautiful, Reasonable Design, Lightweight, Will not rust.
8.Just Replace the Corresponding Mold for the Aluminum Cap Size of Different Bottle Diameters.
Technical Parameters
| No. | Parameter Description | Value / Details |
|---|---|---|
| 1 | Air Source | 0.3-0.4Mpa |
| 2 | Aluminum Cap Sealing Diameter | 13mm-26mm Universal (Black Head-Grabbing Mold Customized According to Aluminum Cover Outer Diameter) |
| 3 | Explosion-proof Bottle Device | 13mm-26mm Universal (White Explosion-Proof Bottle Mold Customized According to the Diameter of the Bottom of the Glass Bottle) |
| 4 | Suitable for High Bottles | 20-100mm |
| 5 | Production Capacity | 45 bottle/Minutes (Related to the Speed of Assembly line Work) |
| 6 | Air Intake Hose Connector | 8mm |
| 7 | Head Grabbing Mold | Tool steel |
| 8 | Explosion-proof Bottle Mold | Plastic King |
| 9 | Main body material of the machine | Aluminum Oxide |
| 10 | Height Adjustment | Handwheel |
| 11 | Cylinder & Components Brand | Airtac (Pneumatic components: Sophie's, Foot Pedals: Heavenly Crafts) |
| 12 | Power consumption | 1.5KW/2.2KW (User-provided) |
| 13 | Machine Weight | 45KG |

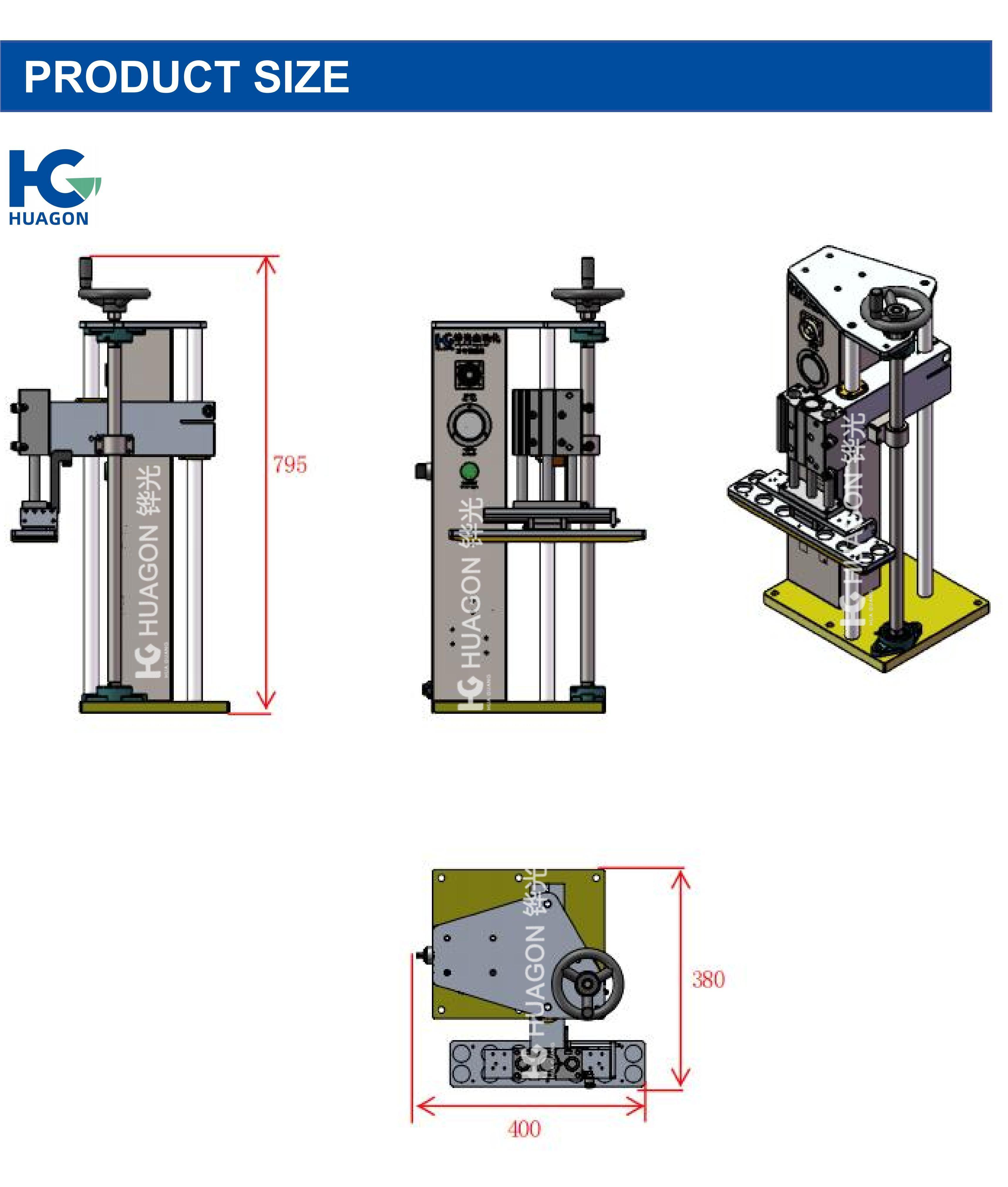

| 14 | Machine Overall Dimensions | 795*400*380mm |
| 15 | Machine Packaging Wooden Box Weight | 50KG |
| 16 | Machine Wooden Case Size | 840*450*400mm |
| 17 | Power / Voltage | Pneumatic / 220V |
| 18 | Warranty & Support | 1 Year (Video outgoing-inspection & Machinery test report provided) |
| 19 | Core components | Pressure vessel |
Installation, Operation & Adjustment
| Step | Adjustment Type | Operating Instructions |
|---|---|---|
| 1 | Replace the high bottom bottle type adjustment | Turn off the air source, the linear bearing falls to the lowest position, loosen the locking handle, rotate to increase the adjustment handle, place the bottle in the specified slot, adjust the capper head to the shoulder of the bottle, and lock the handle. |
| 2 | Card bottle strap bottle appears when grabbing head | Connect to the air source, do not place the bottle, do not release the foot switch when stepping on, use a 4mm inner hexagon to loosen the internal screw of the grab head, and rotate the grab head part (to the right). |
| 3 | The lock cap is not tight / easy to rotate after locking | Connect the air source, do not place the bottle, do not release the foot switch when stepping on, use a 4mm inner hexagon to loosen the internal screw of the grab head, and rotate the grab head part (to the left). |
| 4 | Sounds of air leakage occur | Check the air leakage joint, pull out the air pipe and cut off the air pipe 10mm. If air leakage is still available, the air pipe joint must be replaced. |
| 5 | Common regulations and maintenance | To the movable parts diligently add grease, perform a weekly cycle of motion sections with tight screws and solid inspection. |

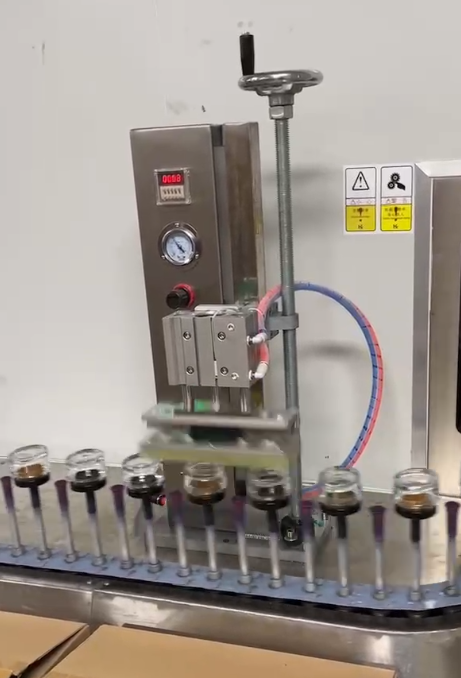

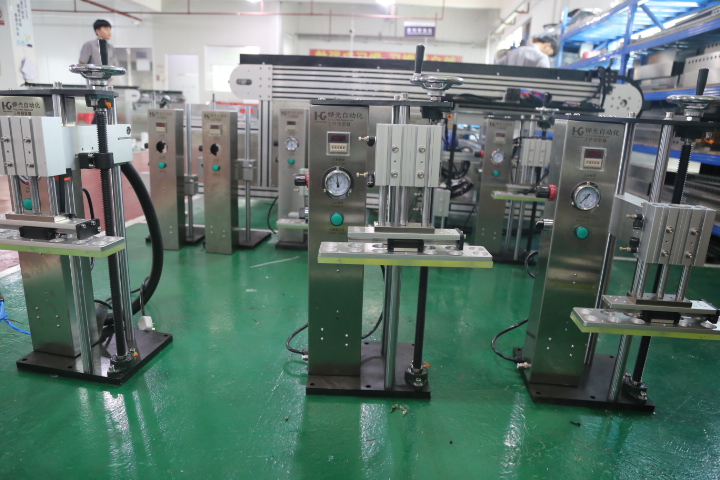

Automatic Pneumatic Lifting Type Cap Capping Machine
Frequently Asked Questions (FAQ)
1. What types of bottles is this capping machine suitable for?
It is suitable for sealing caps on glass bottles of various sizes, including potion bottles, powder bottles, perfume bottles, oral liquid bottles, essential oil bottles, and other small glass bottles configured with aluminum caps.
2. How fast does this machine complete the capping process?
Completing the entire locking process requires only 1 to 2 seconds per bottle. The overall production capacity is up to 45 bottles per minute, which correlates directly with the speed of your assembly line work.
3. What cap sizes are compatible with this capping machine?
The machine universally fits aluminum cap sealing diameters from 13mm to 26mm. The head-grabbing mold can be customized according to the outer diameter of your specific aluminum covers.
4. What power and pneumatic specifications does the machine require?
The machine is pneumatically operated and uses an air source of 0.3-0.4Mpa. It includes an 8mm air intake hose connector. The voltage setup is 220V and the user-provided power consumption ranges between 1.5KW/2.2KW.
5. Can the height of the machine be adjusted for different bottle sizes?
Yes, the machine's height can be easily adjusted between 20mm and 100mm using the integrated handwheel. This allows you to quickly adjust the capper head to suit packaging materials of various heights.
6. What materials are used to construct this capping machine?
The main body is constructed of durable Aluminum Oxide and aviation aluminum alloy, while other metal sections feature stainless steel, ensuring a lightweight design that will not rust. The head grabbing mold is made of high-strength tool steel, and the white explosion-proof bottle mold is built using "Plastic King".
