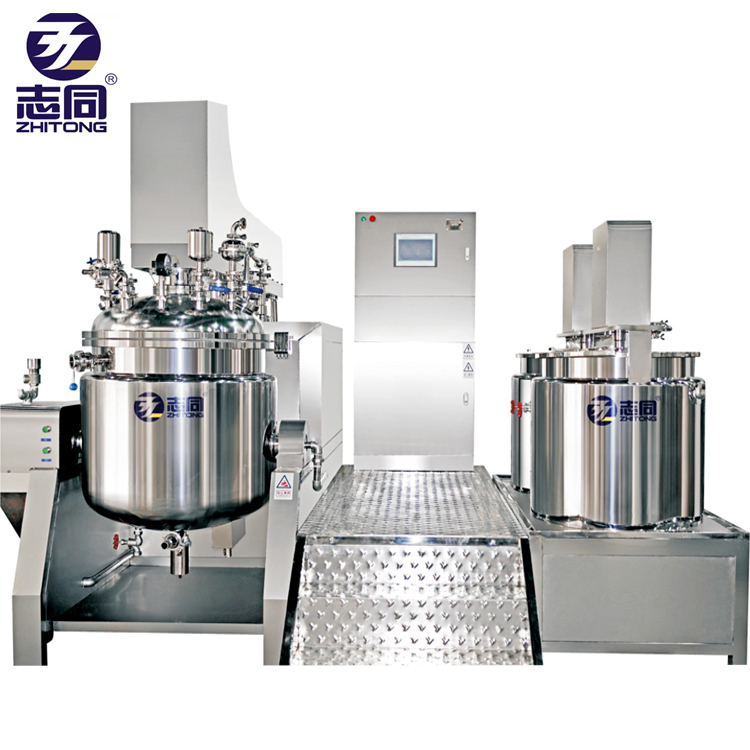

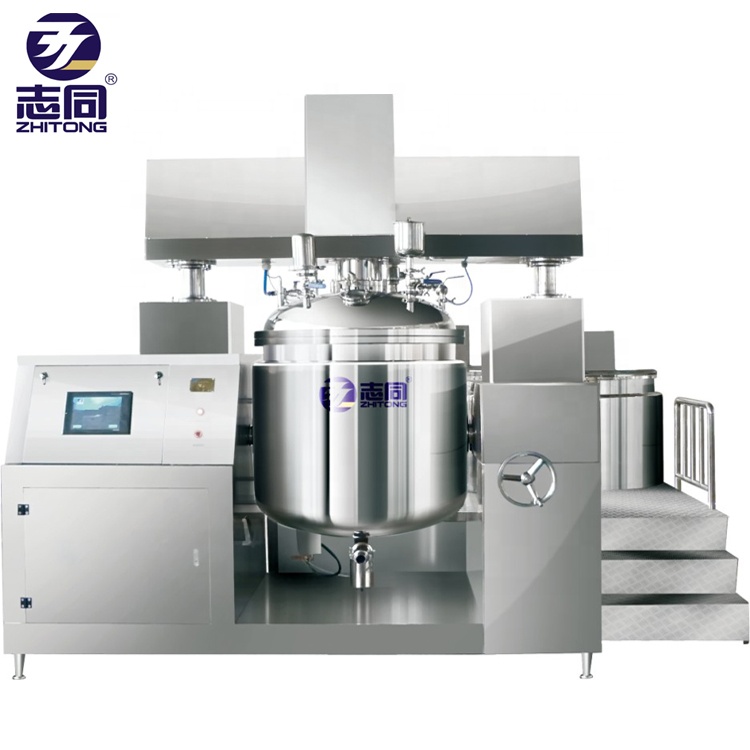

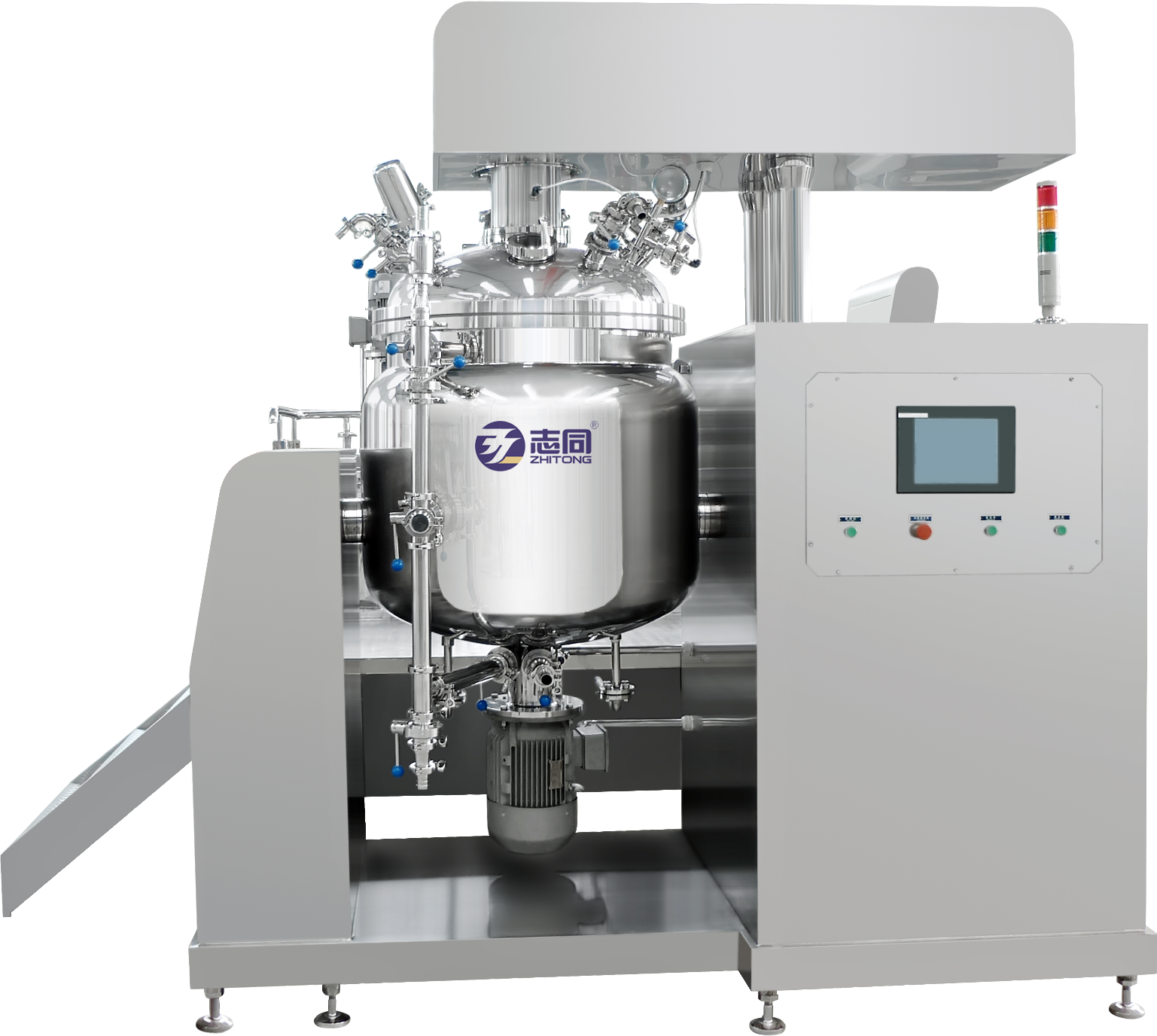

Zhitong PLC Hydraulic Liquid Mixing Machine Touch Screen Emulsification Equipment for Cosmetics Cream Lotion Skincare Production
Product Description
PLC Hydraulic Touch Screen Emulsification Equipment
Machine Features

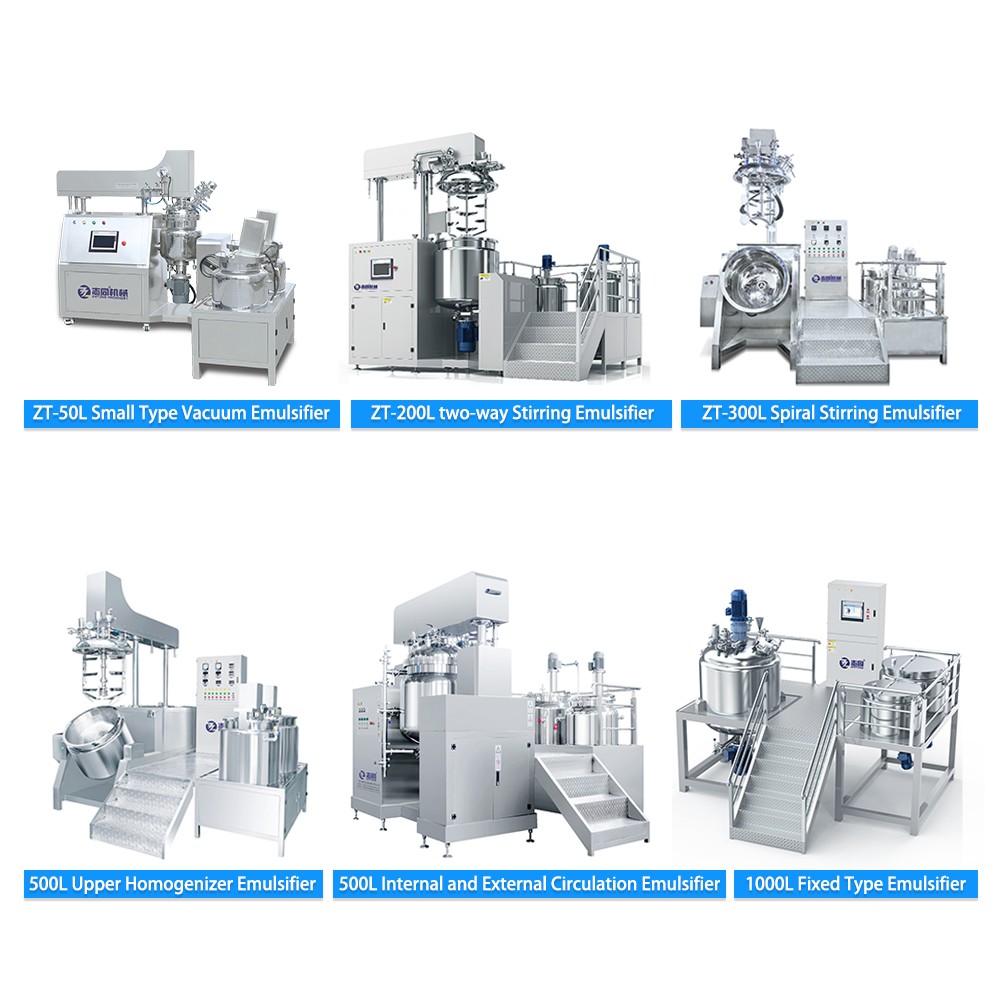

- The vacuum emulsifiers include many varieties. The homogenizing systems include upper homogenization, lower homogenization, internal and external circulating homogenization.
- The mixing systems include single-way mixing, double-way mixing and helical mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting.
- The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
- The homogenizing structure made through advanced technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
- The vacuum defoaming can make the materials meet the requirement of being aseptic. Vacuum material sucking is adopted, especially for powder materials, to avoid dust.

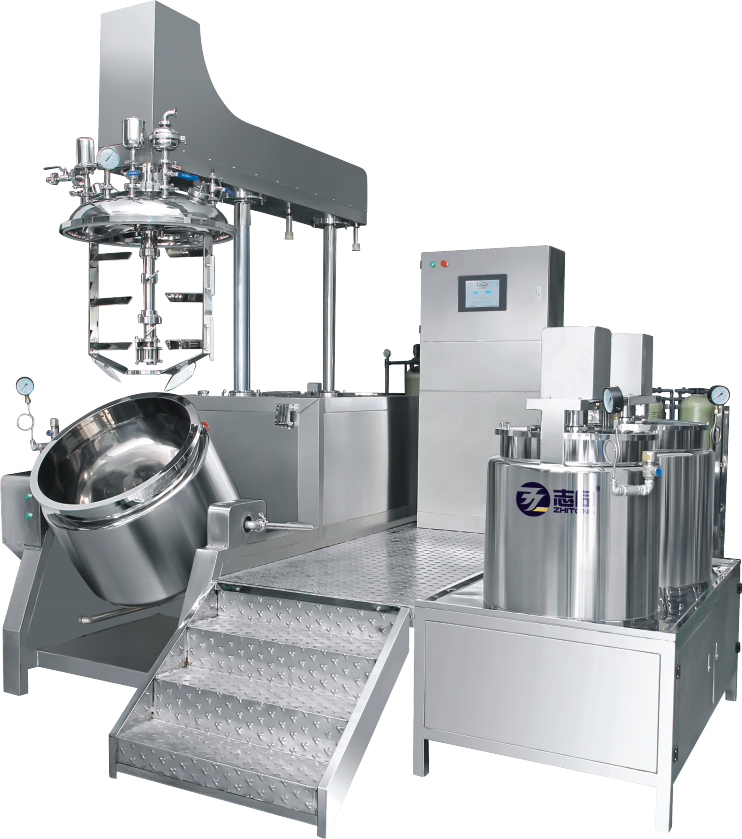

- The emulsifying pot lid can adopt a lifting system, making it easy to clean with a more obvious effect. The emulsifying pot can adopt tilt discharge.
- The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
- Heating modes mainly include steam heating and electric heating according to technological requirements.
- Electric appliances adopt imported configurations to ensure the control of the whole machine is more stable and meets international standards.
Technical Parameters
| Model | Effective | Stirring Power & Speed | Homogeneous Power & Speed | Heating Power | |||
|---|---|---|---|---|---|---|---|
| Capacity (L) | KW | R/MIN | KW | R/MIN | Electric | Steam | |
| ZT-50 | 50 | 0.75 | 0-65 | 3 | 3600 | 6 KW | Steam heating energy conservation selected according to need |
| ZT-100 | 100 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | |
| ZT-150 | 150 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | |
| ZT-200 | 200 | 1.5 | 0-65 | 3 | 3600 | 18 KW | |
| ZT-300 | 300 | 1.5 | 0-65 | 3 | 3600 | 18 KW | |
| ZT-500 | 500 | 2.2 | 0-65 | 4 | 3600 | 27 KW | |
| ZT-1000 | 1000 | 4 | 0-65 | 7.5 | 3600 | 36 KW | |
| ZT-1500 | 1500 | 4 | 0-65 | 11 | 3600 | 45 KW | |
| ZT-2000 | 2000 | 5.5 | 0-65 | 11 | 3600 | Recommended steam heating | |
| ZT-3000 | 3000 | 7.5 | 0-55 | 15 | 3600 | ||
| ZT-5000 | 5000 | 11 | 0-55 | 22 | 3600 | ||

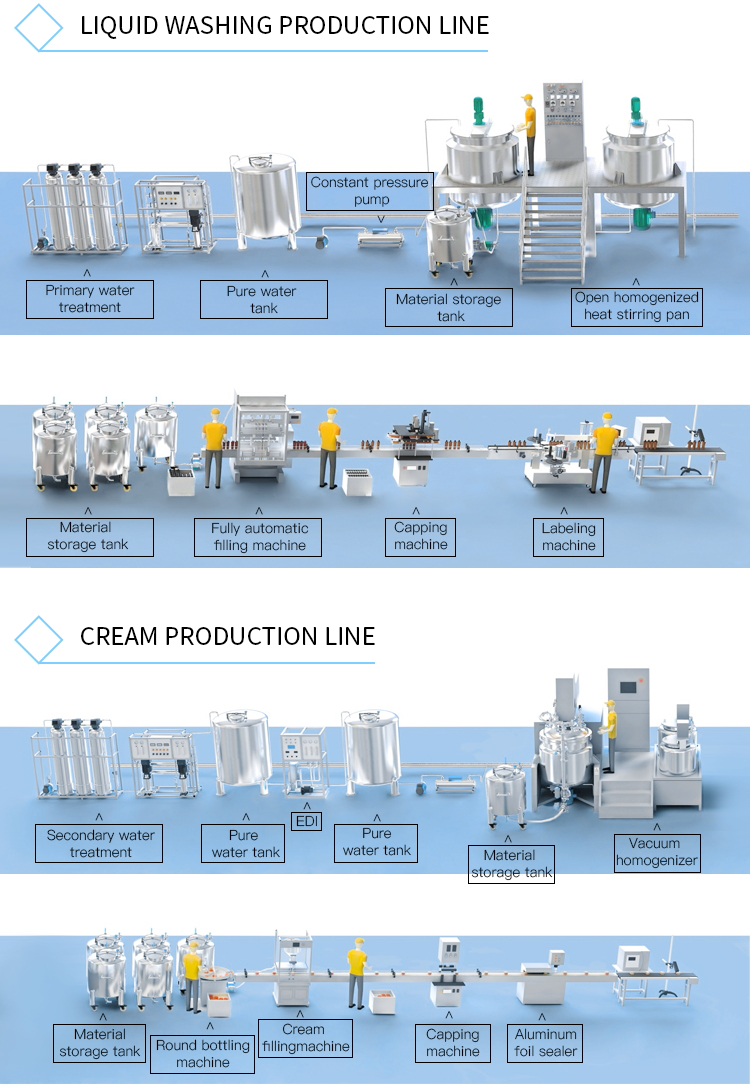

Applications

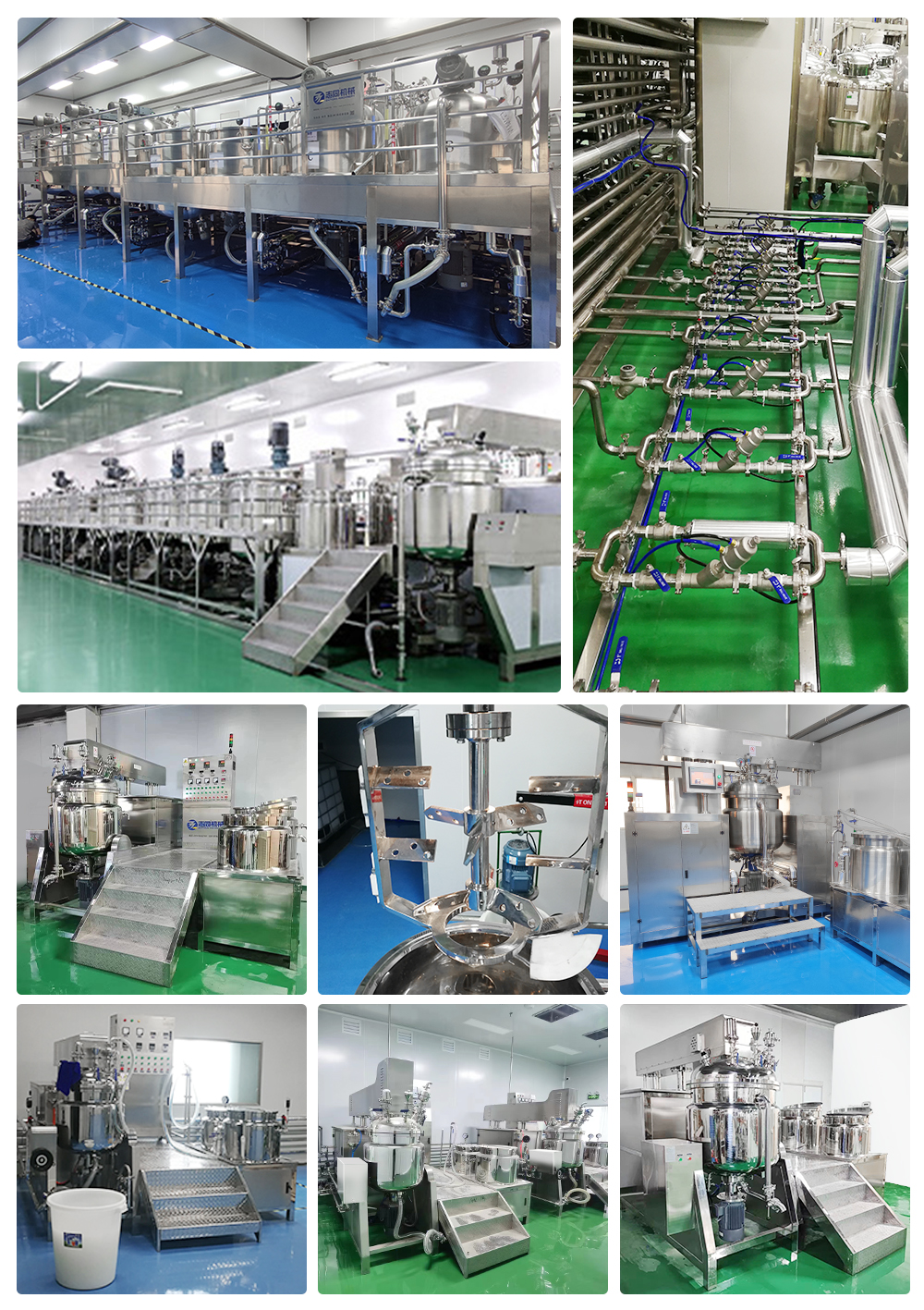

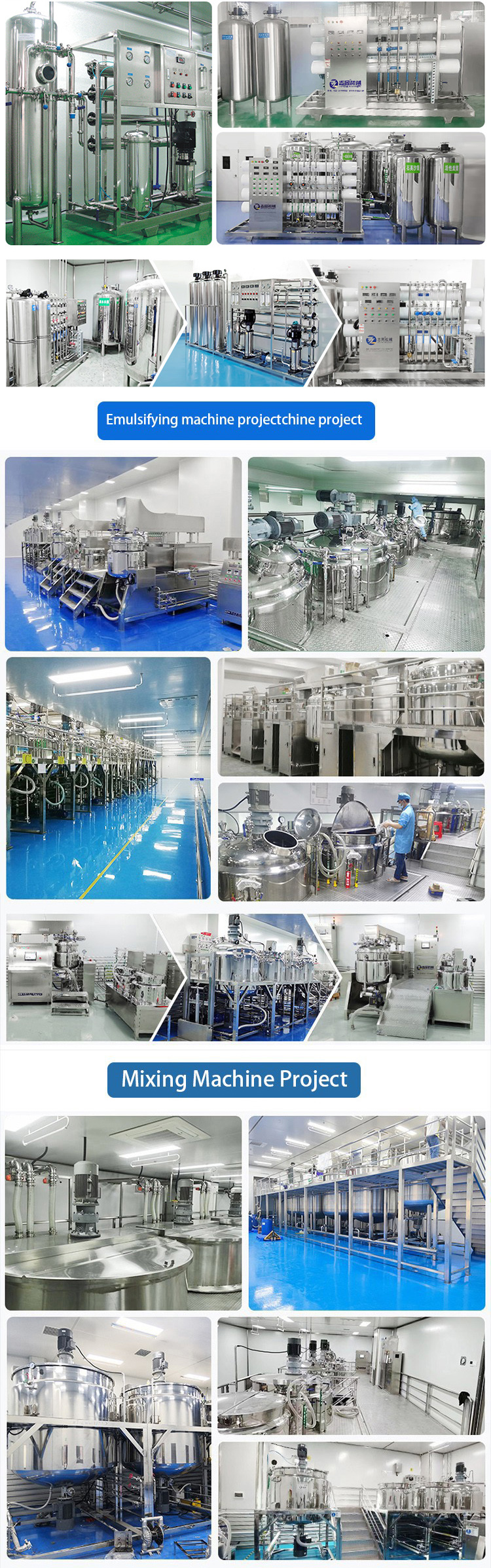

Machine Display
Frequently Asked Questions
Q1: What materials are suitable for this emulsification equipment?
A: It is ideal for cosmetics, cream, lotion, and skincare production, as well as pharmaceutical and food processing requiring high-fineness emulsification.
Q2: Does the equipment meet GMP standards?
A: Yes, the tank body and pipes feature mirror polishing and are constructed with three-layer stainless steel, fully conforming to GMP requirements.
Q3: What are the available heating methods?
A: The equipment supports both electric heating and steam heating, which can be selected based on your production needs.
Q4: What is the maximum rotation speed of the homogenizer?
A: The homogenizing structure can reach a maximum rotation speed of 4,200rpm, achieving a shearing fineness of 0.2-5um.
Q5: How does the vacuum system benefit the production process?
A: The vacuum defoaming ensures aseptic conditions, and vacuum material sucking prevents dust pollution, especially when handling powder materials.
Q6: Is the mixing speed adjustable?
A: Yes, the triple mixing system utilizes an imported frequency converter for precise speed adjustment to meet various technological demands.
