Product Description

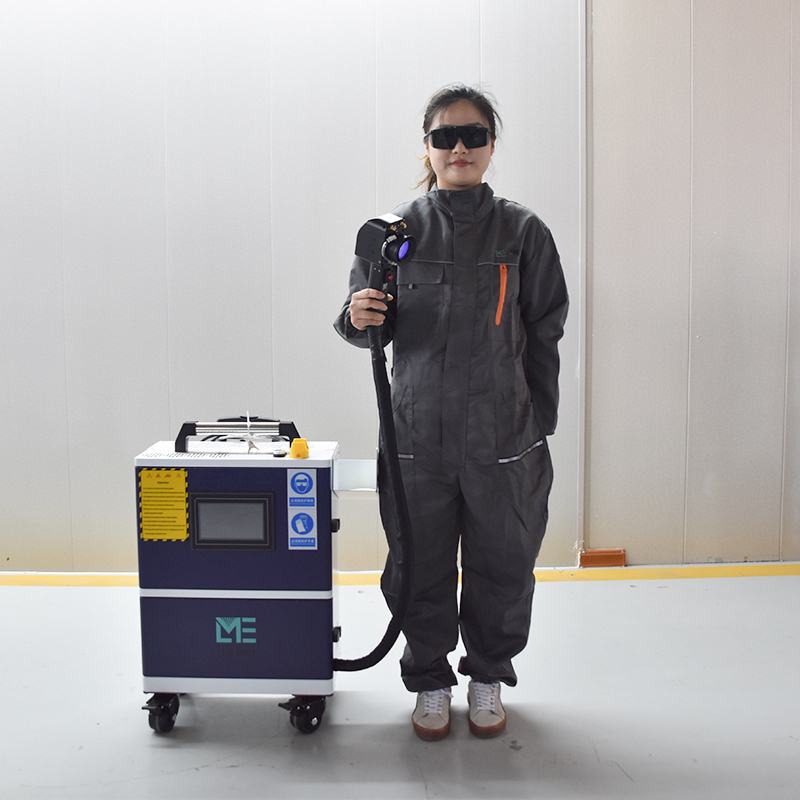

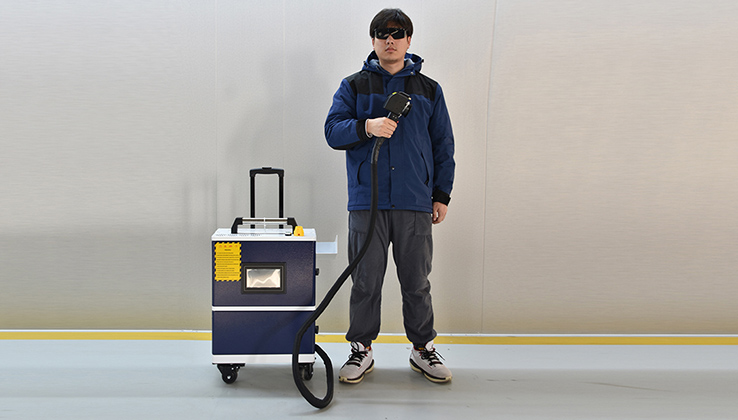

High Speed Handheld MOPA Pulse Fiber Laser Rust Cleaning Machine
This is a Mini pulse laser cleaning machine, small and light, easy to carry. Available in 100w, 200w, 300w, and 500w power options. It features a simple operation system, making it the best choice for various construction sites and industrial applications.
Mainly used in rust removal, paint removal, glue removal, coating removal and plating removal. It’s suitable for cleaning the rust layer and thick paint layer, as well as surface roughening, welding seam cleaning and other process links, with extremely high efficiency. Widely used in aviation, ships, cultural relics protection, automobile peripherals, food industry, rails, rubber molds and other industries.
Technical Parameters
| No. | ITEM | DATA |
|---|---|---|
| 1 | Product Name | Pulse fiber laser rust removal machine |
| 2 | Laser power | 100W / 200W / 300W |
| 3 | Wavelength type | Pulse |
| 4 | Power stability | Better than 5% |
| 5 | Power adjustment range | 10-100% (gradient adjustable) |
| 6 | Repetition frequency | 1-4000 KHz (gradient adjustable) |
| 7 | Fiber length | 1.5m - 10m |
| 8 | Cooling method | Air-cooling |
| 9 | Scanning range | 5mm ~ 200mm, Continuously adjustable |
| 10 | Focal length | 160mm (Optional 160mm-500mm) |
| 11 | Depth of focus | Max 10mm |
| 12 | Overall size | 600*400*800mm |
| 13 | Total Weight | 37KG |
| 14 | Cleaning head weight | About 1kg |
| 15 | Voltage | 220V / 380V, 50 / 60HZ |
| 16 | Working temperature | 5℃ ~ 40℃ |
Key Product Details

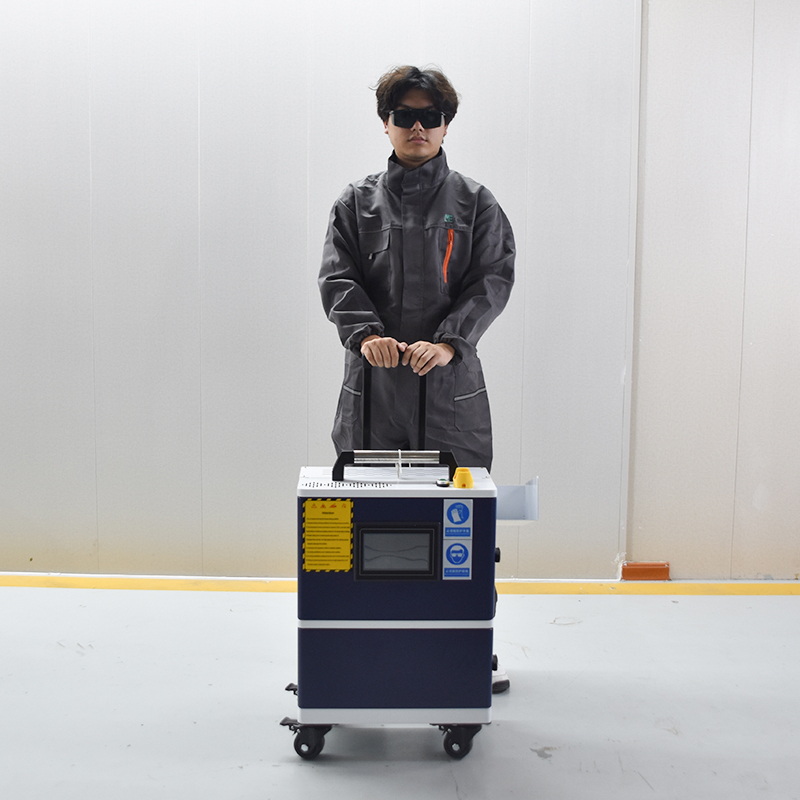

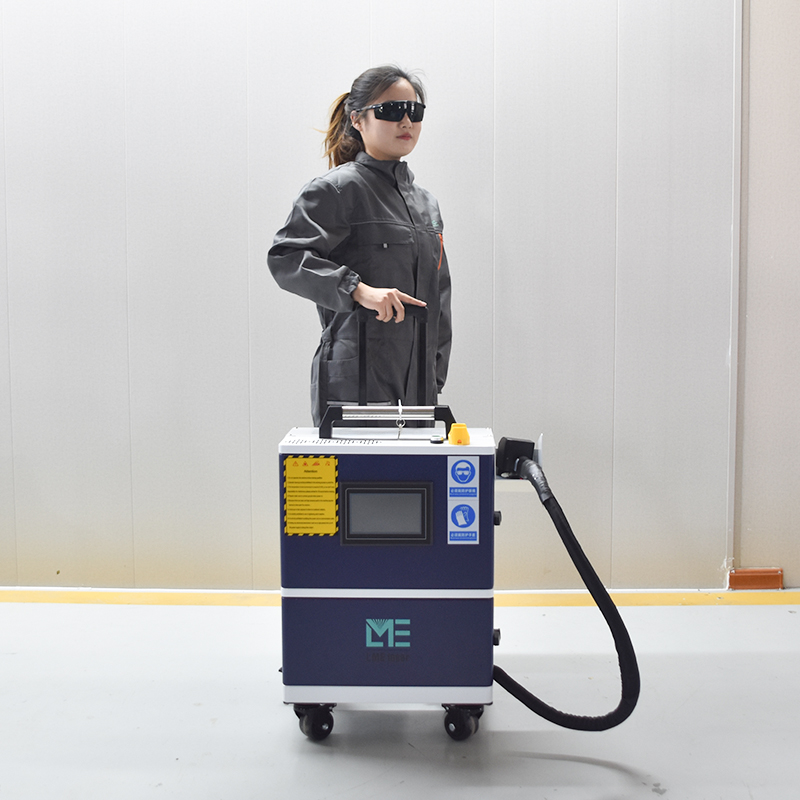

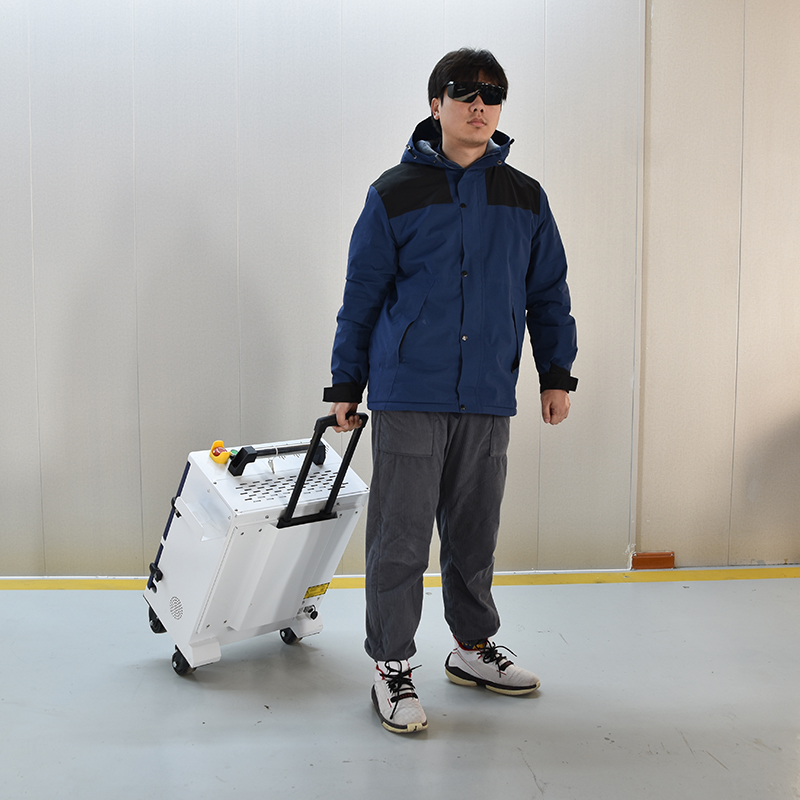

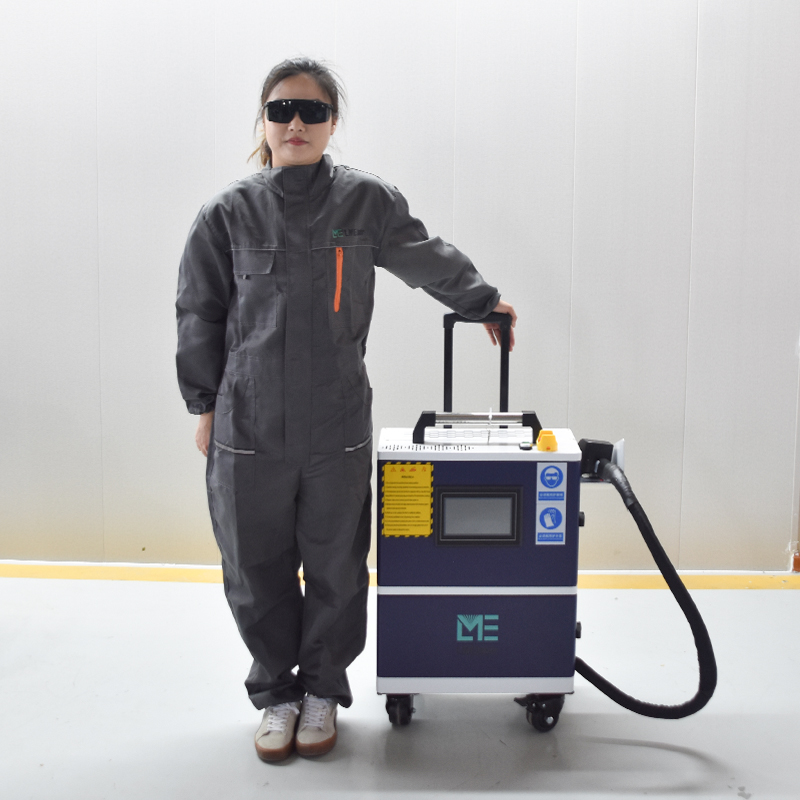

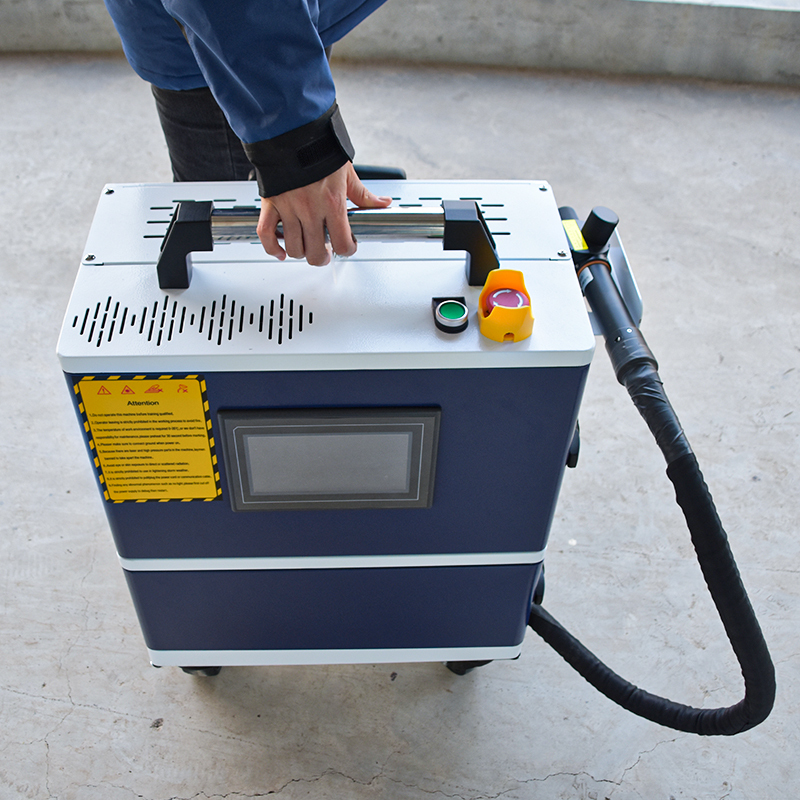

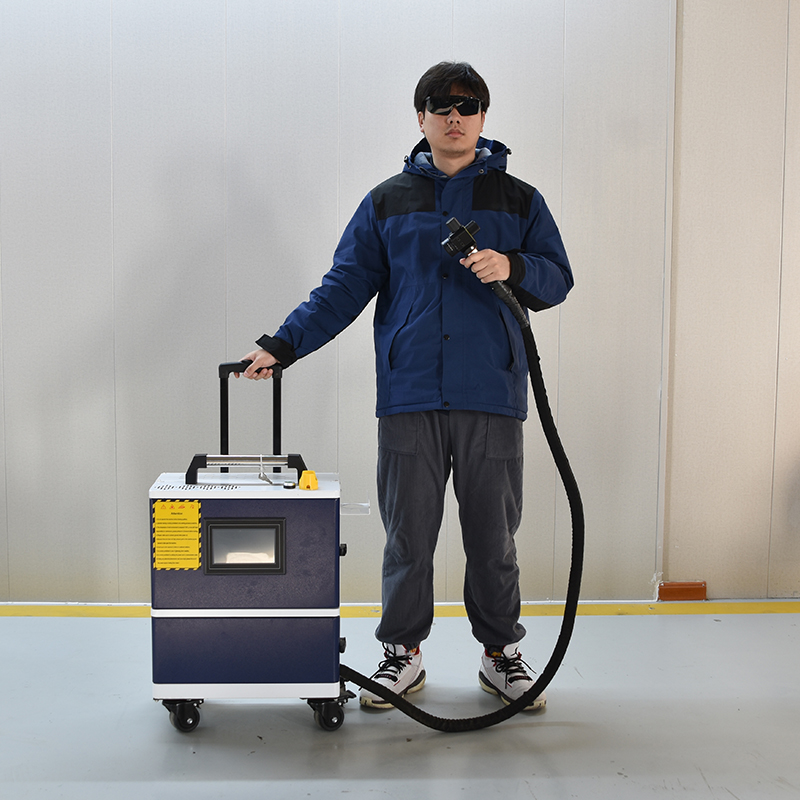

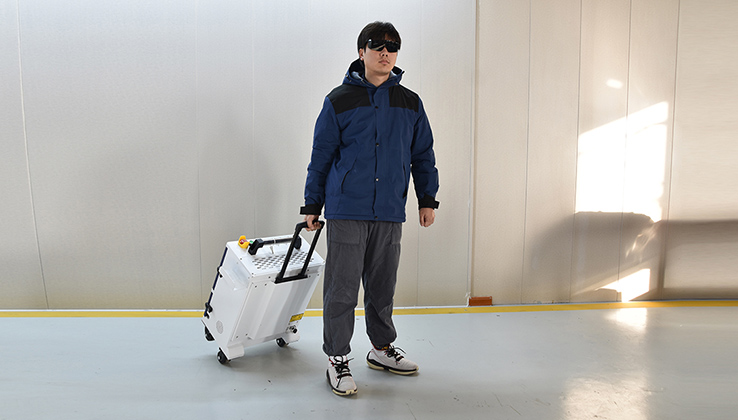

Trolley Case Design
Small box design, compact structure, small and light. Can be carried to any office or site with ease.

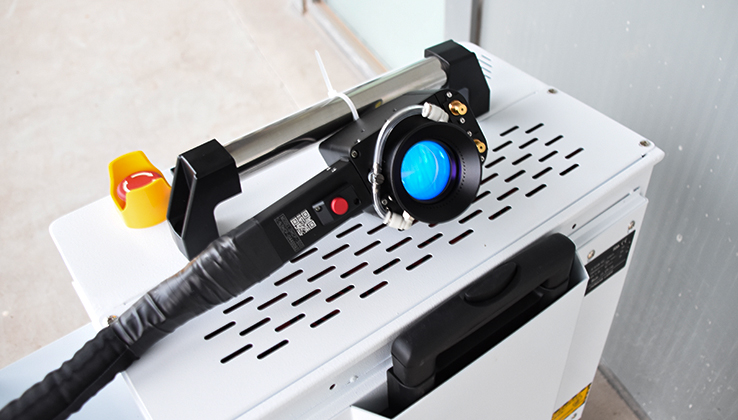

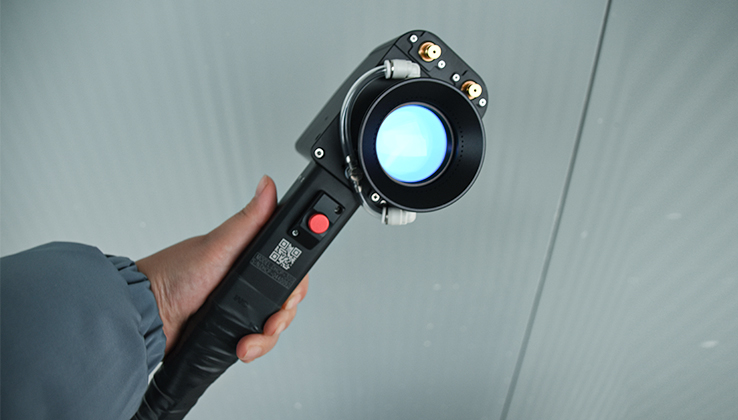

ZBTK Cleaning System
Stable and reliable system with a compact structure, accurate optical path, and excellent sealing.

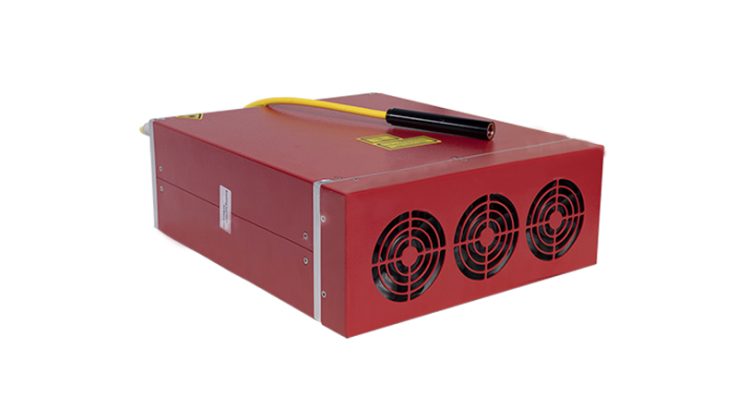

JPT Laser Source
High power fiber laser using MOPA solution, featuring perfect laser characteristics and pulse shape control.
Quality Assurance
Comes with a 2-year warranty. Built with famous brand parts and subject to strict quality inspection.
Global Certification
Certified by ISO9001, CE, and FDA. A popular design trusted worldwide.
High Speed Cleaning
Fast operation and deep cleaning, perfect for automotive printing parts and heavy rust removal.

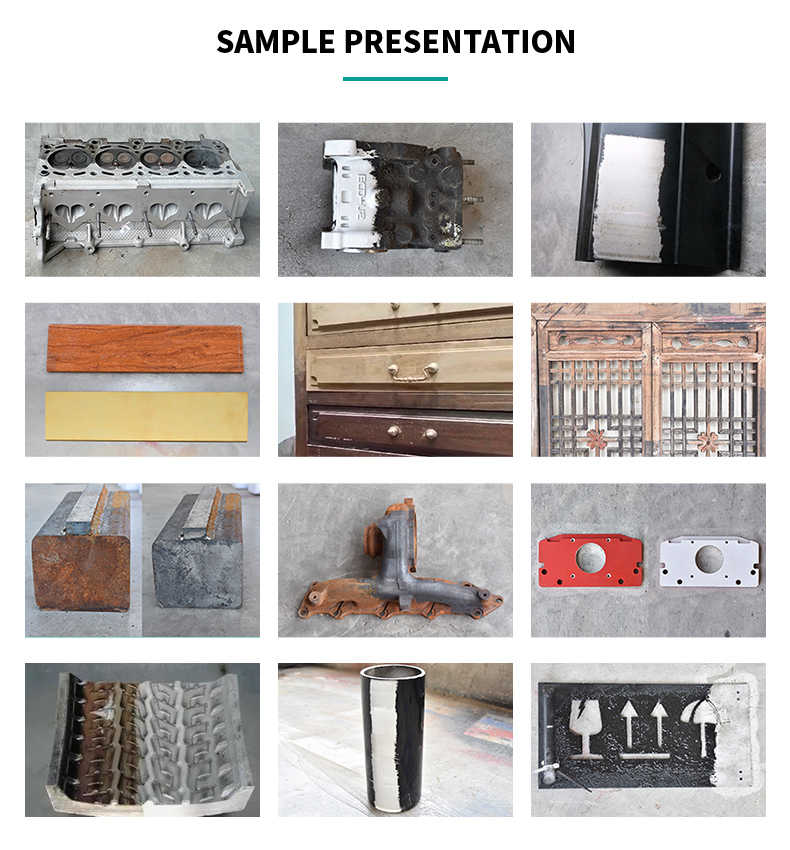

Cleaning Sample Show
Our pulse fiber laser cleaning machine is highly effective for removing rust, paint, and coatings across industries including aviation, cultural relics protection, and the food industry.

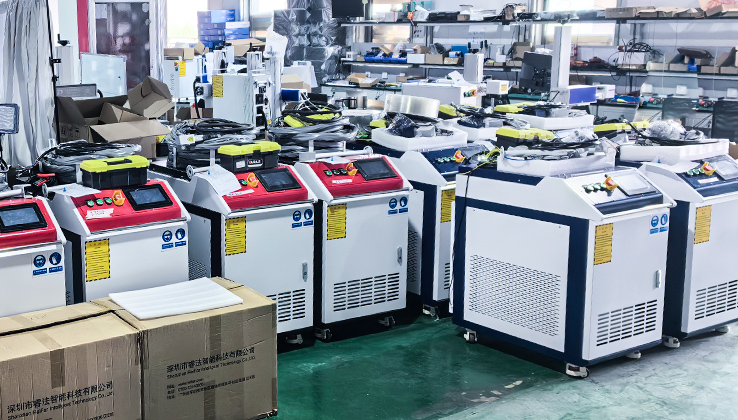

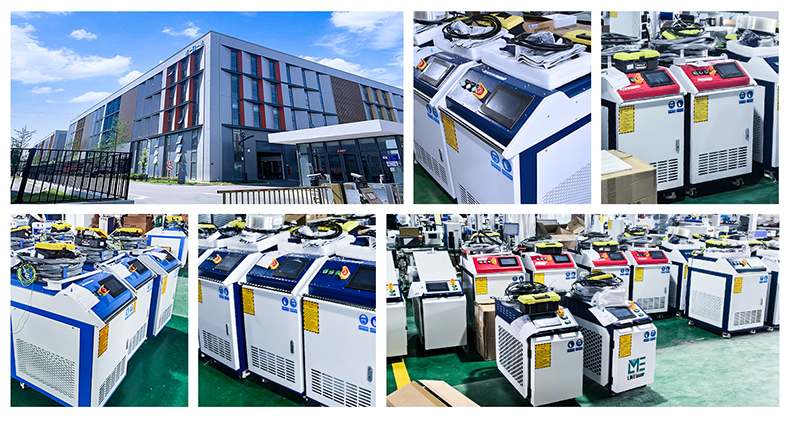

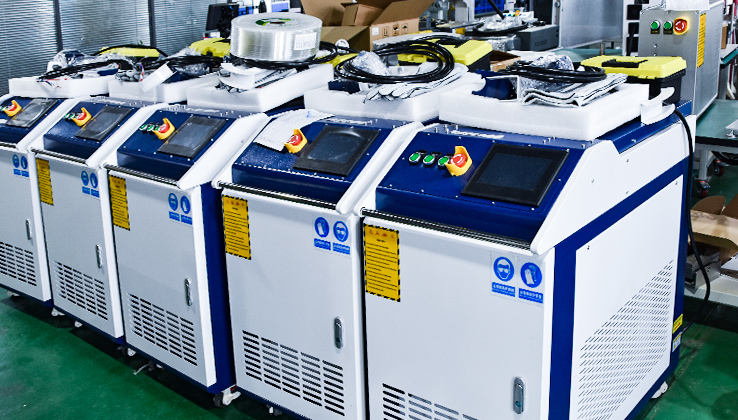

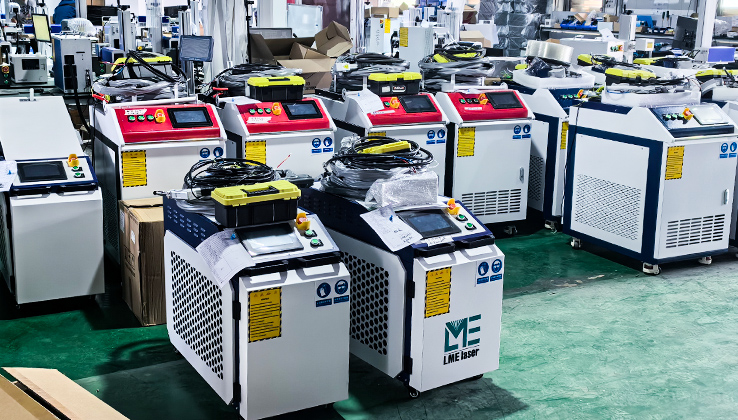

Production & Packaging
Professional Packaging
Frequently Asked Questions
How do I choose the right machine for my needs?
Please consider the material you need to clean and the exact application (repair, production, or restoration). Our team can help you select between 100W and 500W based on these details.
Is the machine difficult to operate?
Not at all. We provide a full operation video and manual. Additionally, we offer online training or on-site engineer training if required to ensure you are comfortable using the equipment.
What is the warranty and after-sales service?
We provide a 2-year warranty for the machine. During this period, replacement parts are free of charge (excluding artificial damage). We also provide lifetime maintenance and technical support.
What materials can this pulse laser clean?
It is ideal for rust, paint, glue, and coating removal. It works effectively on metals for aviation, ships, automotive parts, and even delicate cultural relics.
Does the machine require a special cooling system?
No, this machine is designed with an efficient air-cooling system, making it more portable and easier to maintain compared to water-cooled models.
What is included in the delivery package?
The delivery includes the adjusted machine, an operation disk with guiding videos, manual instructions, and necessary software for installation and use.
