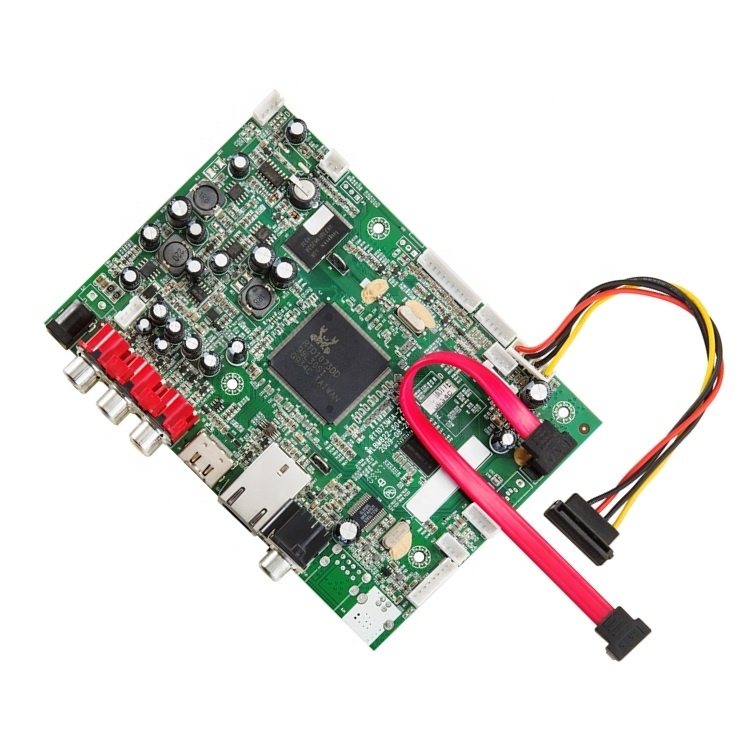

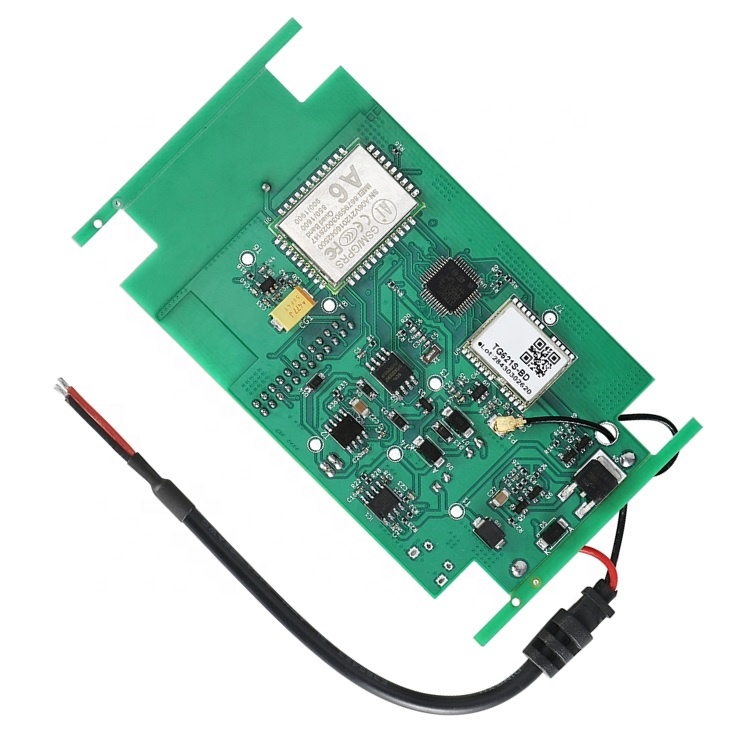

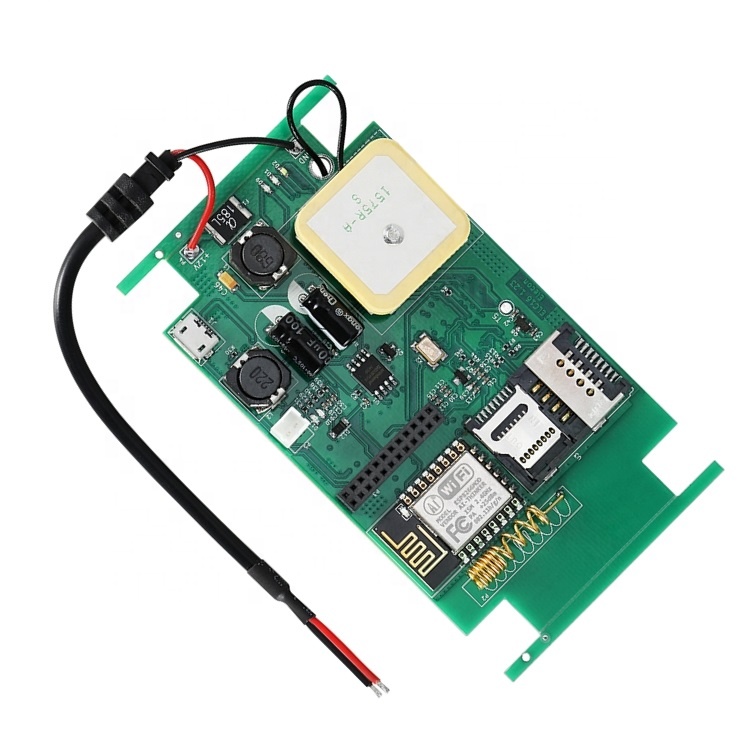

Micro Current Massor Pcb & Pcba Home RF Beauty Instrument Pcb Lifting Anti-Cellulite Device for Facial China Pcba Manufacturer
Product Description
⚡ Professional Electronic Manufacturing Services (EMS)
We provide Electronic Manufacturing Services (EMS) for products requiring surface mount, through-hole, BGA, and mixed technology. Our core services include PCB assembly (Electronic assembly), component procurement, and PCB fabrication, ranging from quick-turn samples to volume production.

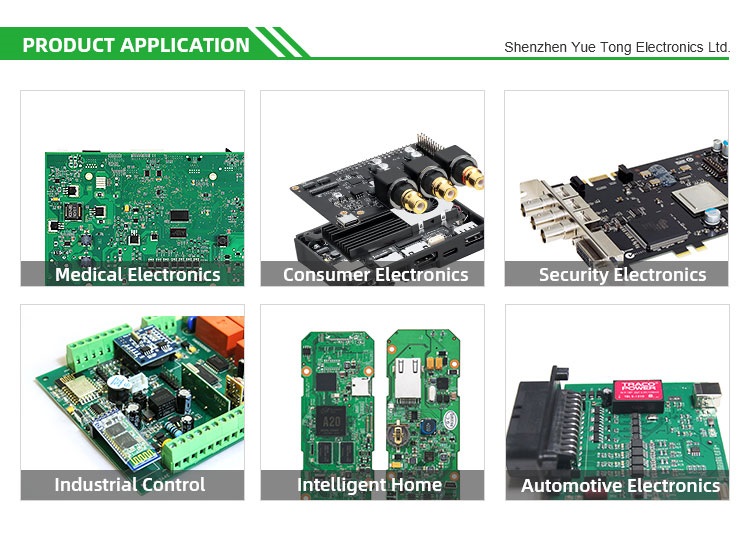

🏥Medical
🔬Instrumentation
🏠Intelligent Home
🚗Automotive
📱Consumer Electronics
🤖Robotics
We offer a full range of PCB manufacturing and assembly services designed to fit all your printed circuit board needs.
🛠 Technical Specifications
| Layer count | 1-28L, HDI |
| Material | FR-4, High TG FR4, aluminium, FPC, Teflon, PTFE (F4B, F4BK), Rogers (4003, 4350, 5880) |
| Max board dimensions | 800mm*620mm |
| Board shape | Rectangular, round, slots, cutouts, complex, irregular |
| Board type | Rigid, flexible, rigid-flexible |
| Board cutting | Shear, V-score, tab-routed, counter sunk |
| Board thickness | 0.2~8.0mm, Flex 0.1~0.25mm |
| Thickness Tolerance | ±10% |
| Min line width / space | 3mil/3mil |
| Min Drilling Hole | Mechanical: 0.1mm, Laser: 0.075mm |
| Surface finish | HASL, Lead free HASL, ENIG, Immersion Tin, Immersion Silver, OSP... |
| PCB Testing | E-test, Flying probe test |
⚙️ PCB Assembly Capabilities
| Types of assembly | SMT (Surface Mount), THT (Through Hole), Mixed Technology, Cable Assembly |
| Components | Passive as small as 01005, 0201; BGA, uBGA, QFN, POP, SOP, PLCC, LGA |
| Component Package | Reels, cut tape, Tube and tray, Loose parts and bulk |
| Max Board Size | 680 x 500mm |
| Assembly Process | Leaded / Lead-Free (RoHS) |
| Electrical Testing | X-ray Inspection, AOI (Automated Optical Inspection), Functional testing |
| Certificates | ISO13485, IATF16949, ISO9001, ISO14001 |
| Quality Standards | IPC-A-600 / IPC-A-610 compliance |

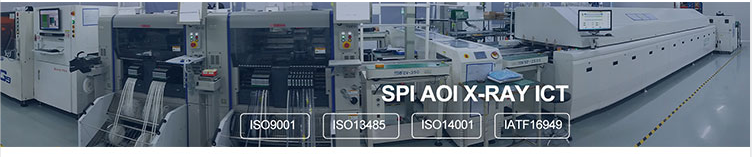

🔍 Quality Control & Inspection
AOI Test: Checks for solder paste, components down to 0201", missing components, offset, incorrect parts, and polarity.
X-Ray Inspection: Provides high-resolution inspection for BGAs, Micro BGAs, Chip scale packages, and bare boards.
Power-up Test: Advanced Function Test, Flash Device Programming, and full Functional testing.
X-Ray Inspection: Provides high-resolution inspection for BGAs, Micro BGAs, Chip scale packages, and bare boards.
Power-up Test: Advanced Function Test, Flash Device Programming, and full Functional testing.
❓ Frequently Asked Questions
What is your MOQ for PCB and PCBA?
There is no MOQ for PCB and PCBA. We can handle both prototype samples and mass production.
Are my design files safe with you?
Yes, we can sign an NDA (Non-disclosure agreement). Your files are held in complete safety and security to protect your intellectual property.

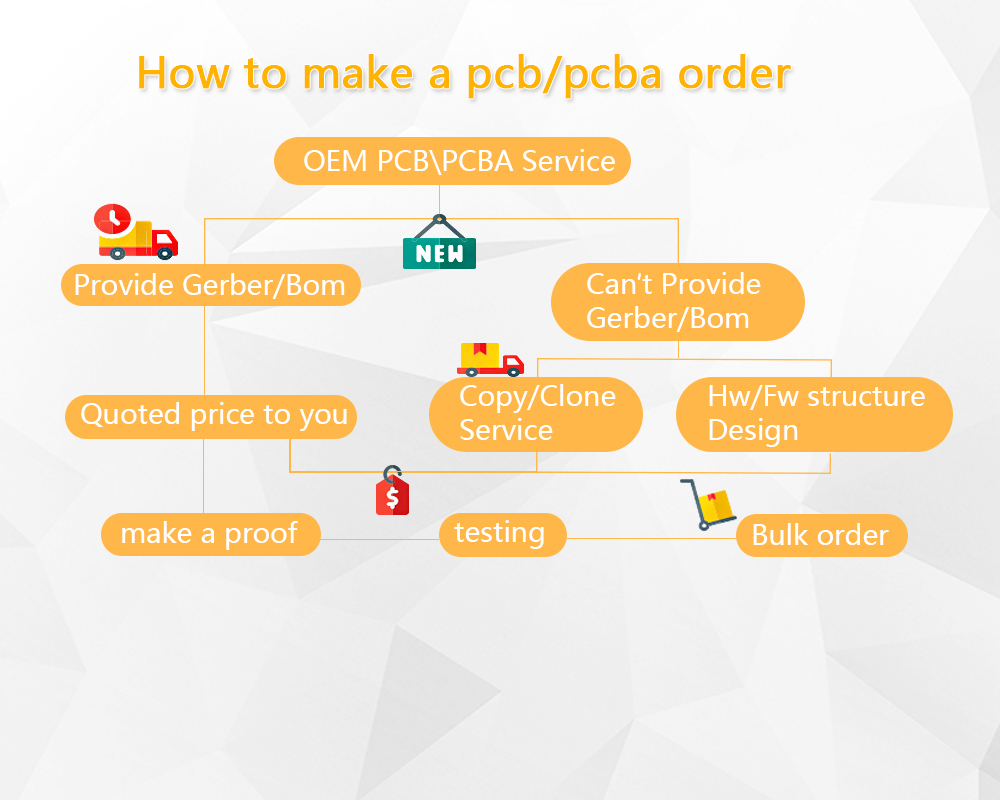

What is required for a quotation?
For PCB: Gerber file and technical requirements (material, size, finish, thickness). For PCBA: PCB info, BOM list, and testing documents.
What file formats do you accept?
Gerber (CAM350 RS274X), PCB files (Protel 99SE, P-CAD 2001), and BOM (Excel, PDF, TXT).
Can you procure all parts in the BOM for us?
Yes, we provide full turn-key services and can source all components as per your required BOM list.
Do you provide after-sales support?
Yes, for any quality issues, we take full responsibility to resolve them for you at any time.
