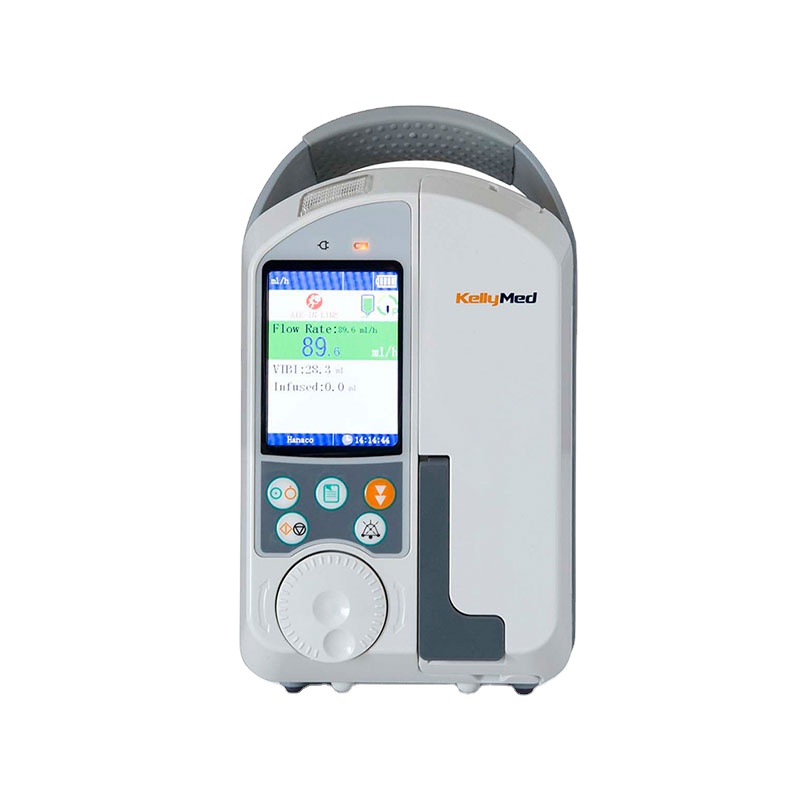

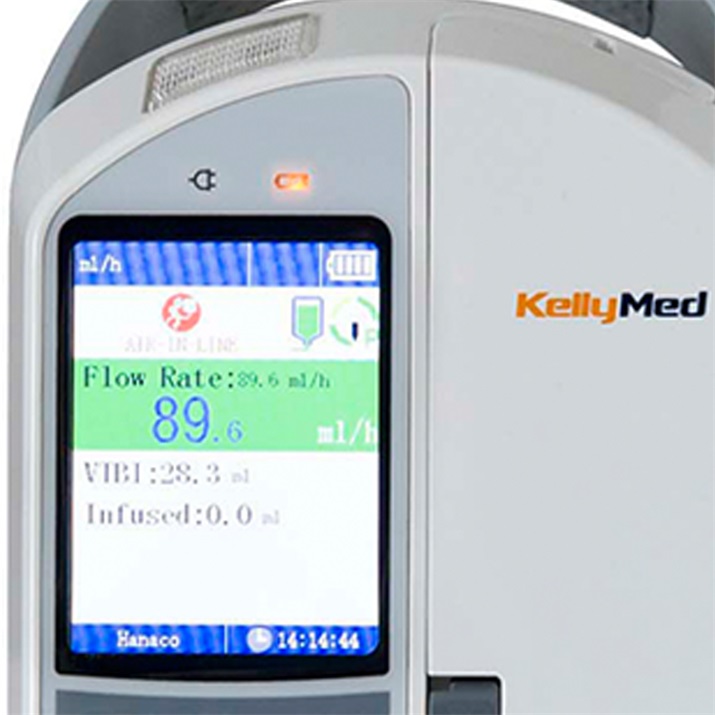

KellyMed Medical Equipment Pet Infusion Pump Portable Electronic IV Veterinary Infusion Pump With CE
Product Description
Product Parameters
| Model | ZNB-XAII |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 1-1500 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus | 100-1500 ml/h (in 0.1 ml/h increments) Purge when pump stops, bolus when pump starts |
| Accuracy | ±3% |
| *Inbuilt Thermostat | 30-45℃, adjustable |
| VTBI | 1-20000 ml (in 0.1 ml increments) |
| Infusion Mode | ml/h, drop/min, time-based, body weight, nutrition |
| KVO Rate | 0.1-5 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby |

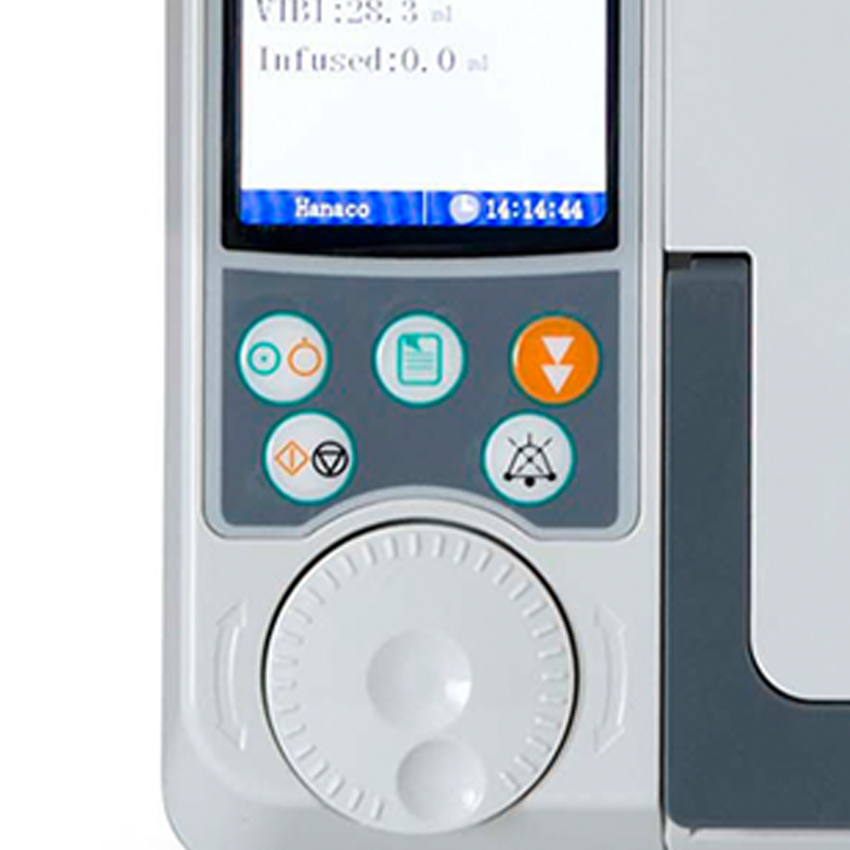

| Additional Features | Real-time infused volume, automatic power switching, mute key, purge, bolus, system memory, history log, key locker, drug library, rotary knob, change flow rate without stopping the pump |
| Drug Library | Available |
| Occlusion Sensitivity | High, medium, low |
| History Log | 50000 events |
| Air-in-line Detection | Ultrasonic detector |
| Wireless management | Optional |
| Drop Sensor | Optional |
| Vehicle Power (Ambulance) | 12±1.2 V |
| Power Supply, AC | 110/230 V (optional), 50-60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 5 hours at 25 ml/h |
| Working Temperature | 10-30℃ |
| Relative Humidity | 30-75% |
| Atmospheric Pressure | 860-1060 hpa |
| Size | 130*145*228 mm |
| Weight | 2.5 kg |
| Safety Classification | Class Ⅰ, type CF |

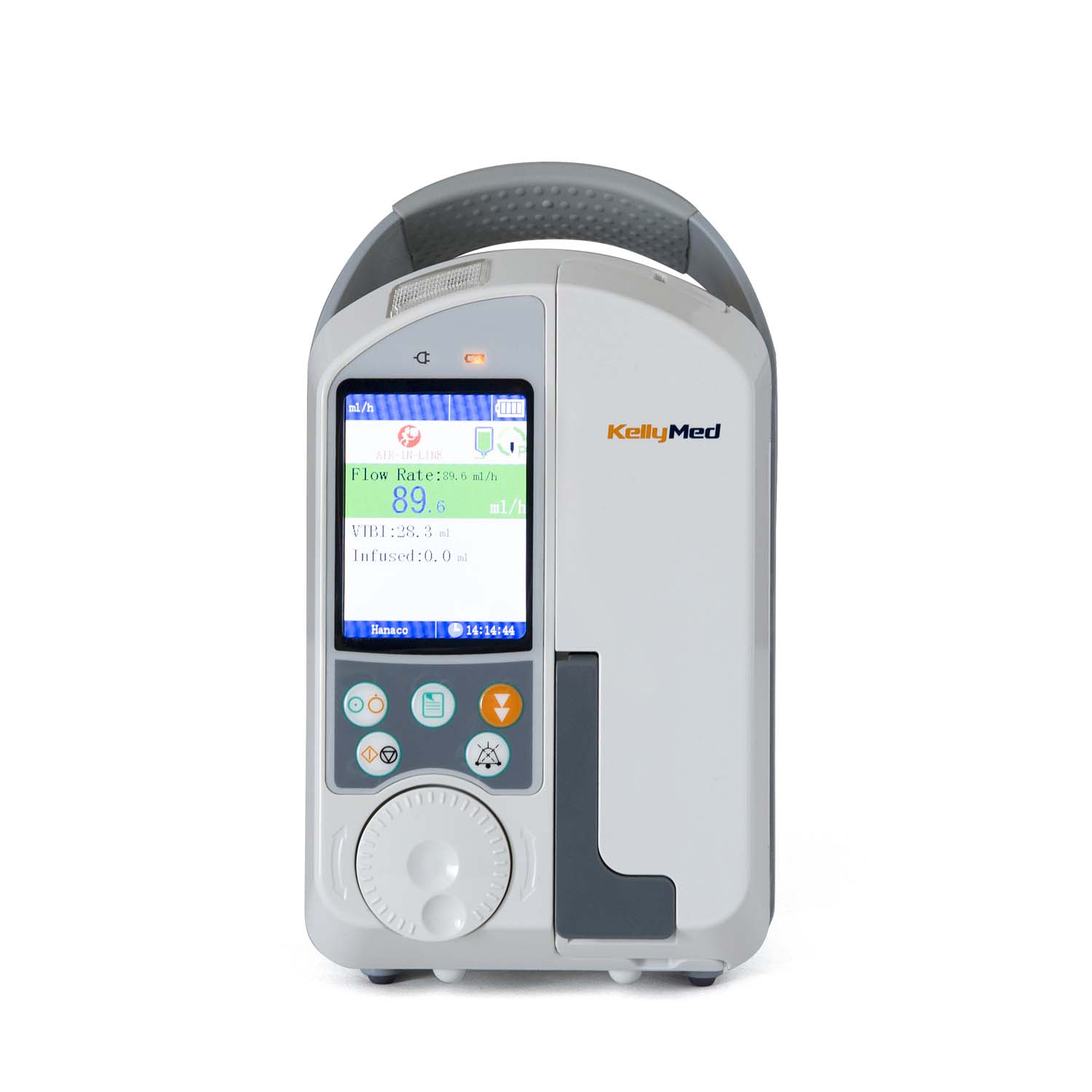

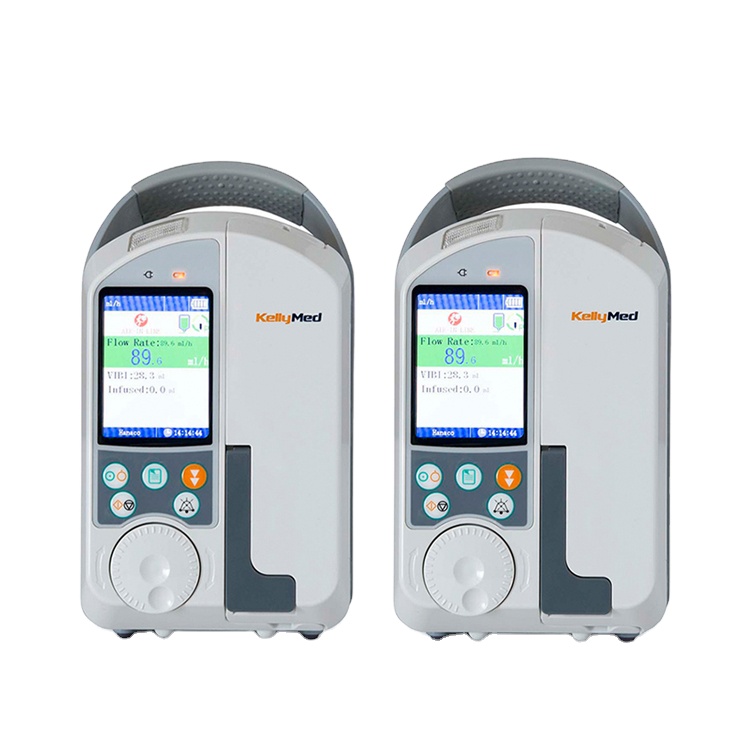

Products Display
Key Features:
01Built-in thermostat: 30-45℃ adjustable. This mechanism warms IV tubing to increase infusion accuracy. This is a unique feature compared to other Infusion Pumps.
02Wide range: High flow rate & VTBI flexibility.
03Safety: Anti-free-flow function to make infusion safer.
04Mobility: Vehicle power support (Ambulance).
05Memory: History log of 50,000 events.
06Efficiency: Change flow rate without stopping the pump.
Company Profile
Founded in 1994, the corporation is a high technology entity engaged in R&D, manufacturing, and marketing of infusion systems, supported by the Institute of Mechanics, Chinese Academy of Sciences. The facility includes a dedicated R&D Center, QC Division, and Customer Support Center.
Engineers specialize in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor, and Mechanics. With 57 patents granted by the State Intellectual Property Office, the company is ISO13485 certified and most products carry the CE mark. As a primary player in this field for 30 years, the focus remains on world-class medical equipment exported to more than 60 countries.
Engineers specialize in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor, and Mechanics. With 57 patents granted by the State Intellectual Property Office, the company is ISO13485 certified and most products carry the CE mark. As a primary player in this field for 30 years, the focus remains on world-class medical equipment exported to more than 60 countries.
Product Range of medical equipment:
- Infusion Pump
- Syringe Pump
- Feeding Pump
- TCI Pump
- Docking Station
- Intermittent Pneumatic Compression
- Feeding Set
- Nasogastric Tube
- Dedicated IV Set
Packing & Delivery
Frequently Asked Questions
What is the flow rate range for this infusion pump?
The flow rate is adjustable from 1 to 1500 ml/h in 0.1 ml/h increments.
Does the device include a warming mechanism?
Yes, it features a unique built-in thermostat adjustable between 30-45℃ to warm the IV tubing and improve accuracy.
How many events can the history log store?
The system memory is capable of recording up to 50,000 historical events.
What types of alarms are integrated into the system?
Alarms include Occlusion, Air-in-line, Door open, End program, Low/End battery, AC power off, Motor malfunction, and System malfunction.
Can this pump be used in an ambulance?
Yes, it supports vehicle power (12±1.2 V) making it suitable for ambulance use.
What is the typical battery life during operation?
The rechargeable battery provides approximately 5 hours of operation at a rate of 25 ml/h.
