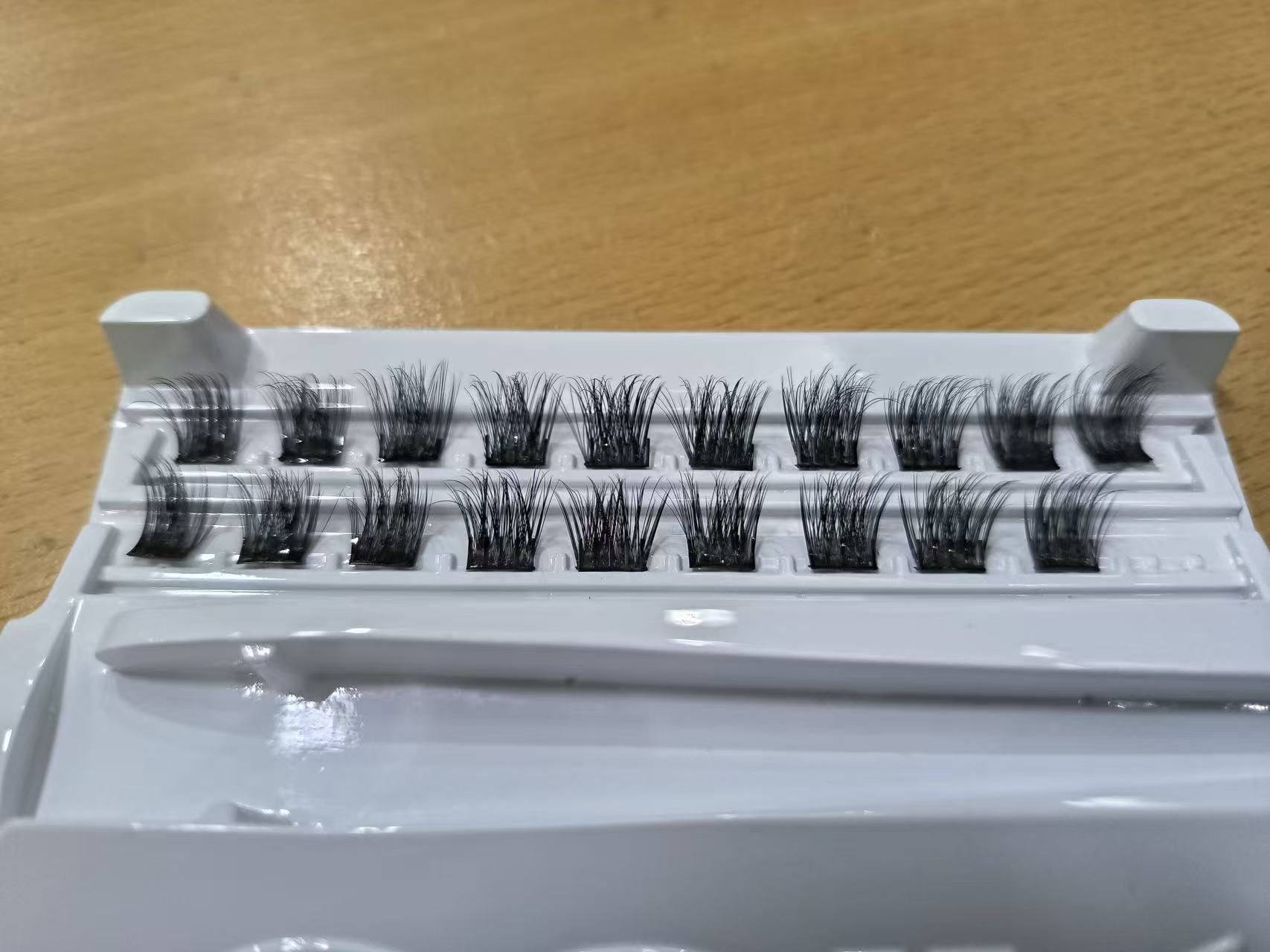

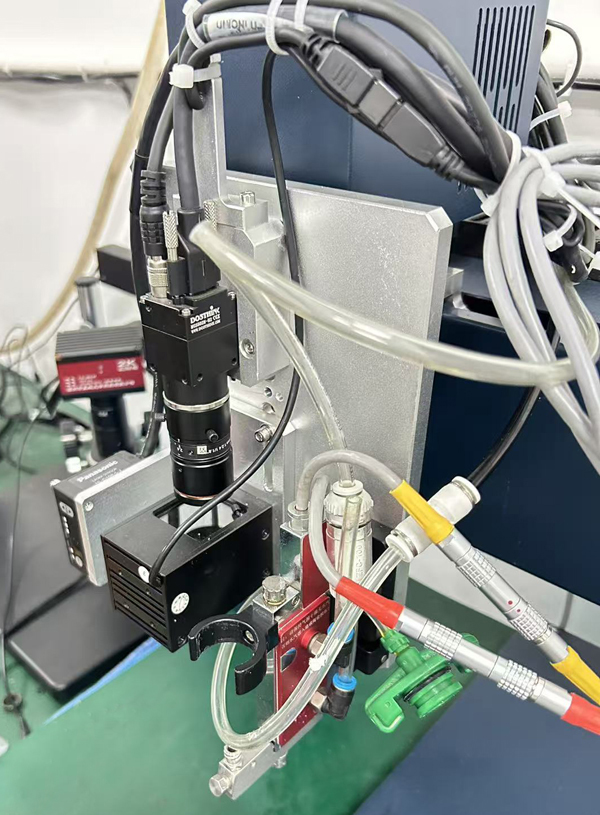

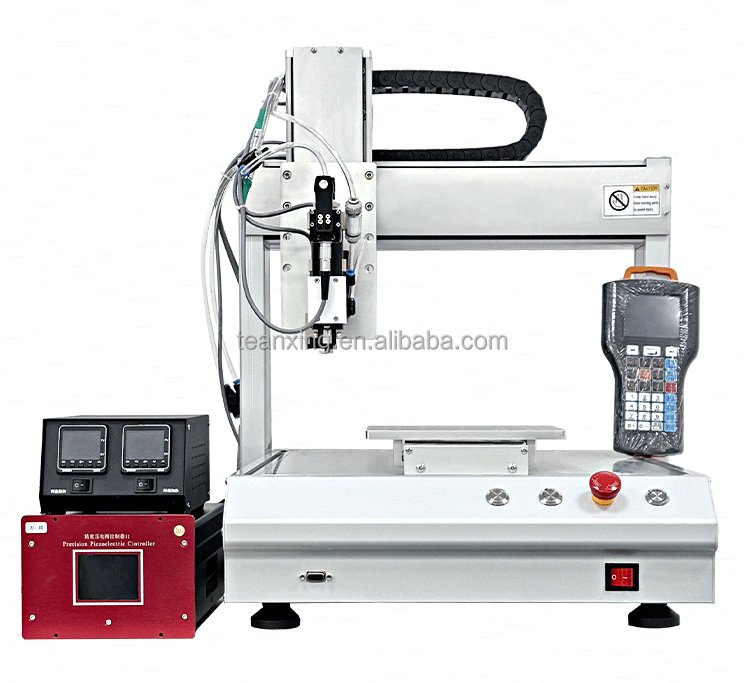

Eyelash Dispensing Machine With High Precision High Speed And Non-contact Dispensing Equipment
Product Description
Product Description
Desktop type design, which can be easily placed directly onto the production line.
Supports Grid Array copy and parameter copy functions for flexible operations.
Includes insert and delete functions for quick program modifications and production scheduling.
Highly stable glue feeding with configurable parameters for thickness, speed, dispensing time, and stop time, driven by a high-precision motor.

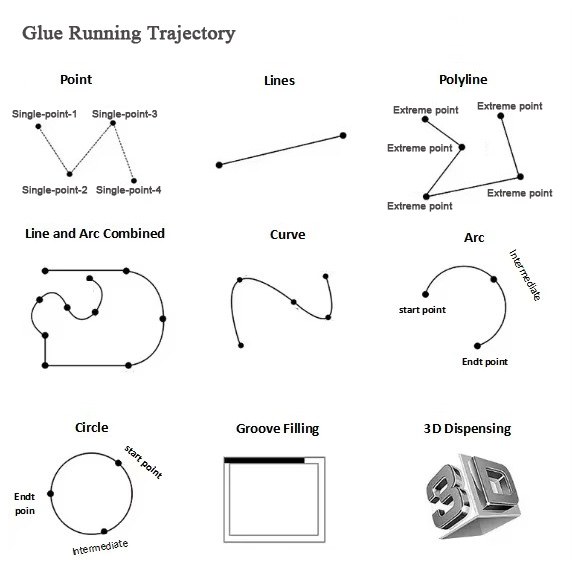

Supports single-point, part-point, or overall translation program corrections for high-precision alignment.
USB communication enables program transfers and copies between multiple machines to save editing time.
Features single-step automatic positioning to simplify production setups.
Dual-language (Chinese/English) interface displays real-time coordinates, cycle times, and output volume with intuitive parameter setups.
Non-contact spray dispensing without Z-axis movement avoids needle-to-workpiece collisions, boosting yield and production efficiency.
Specifications
| Technical Specifications Parameters | |
|---|---|

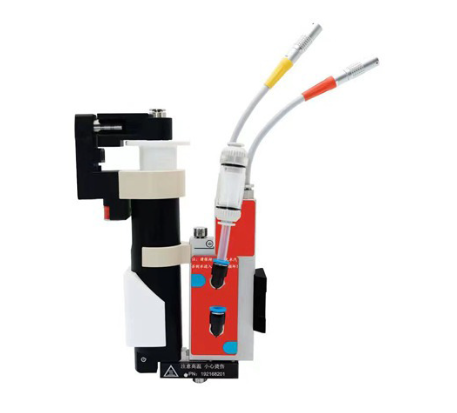

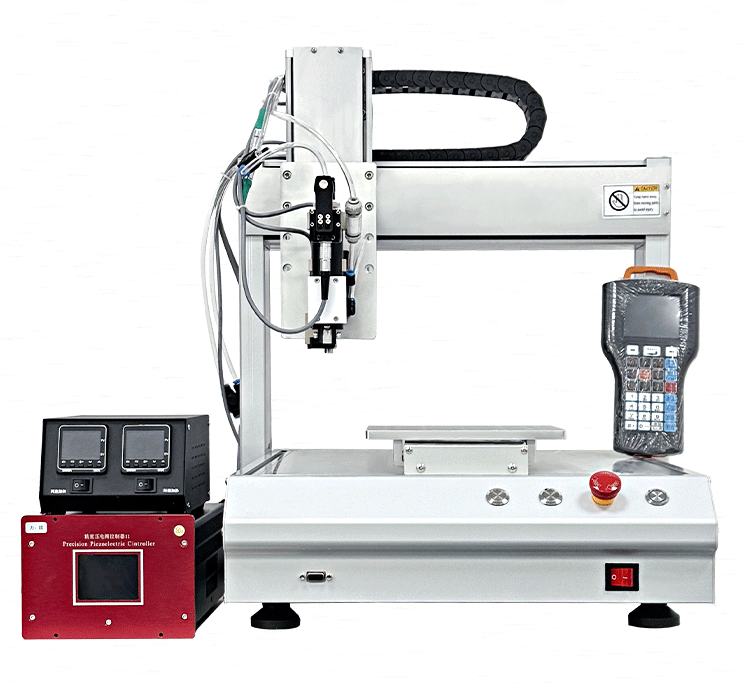

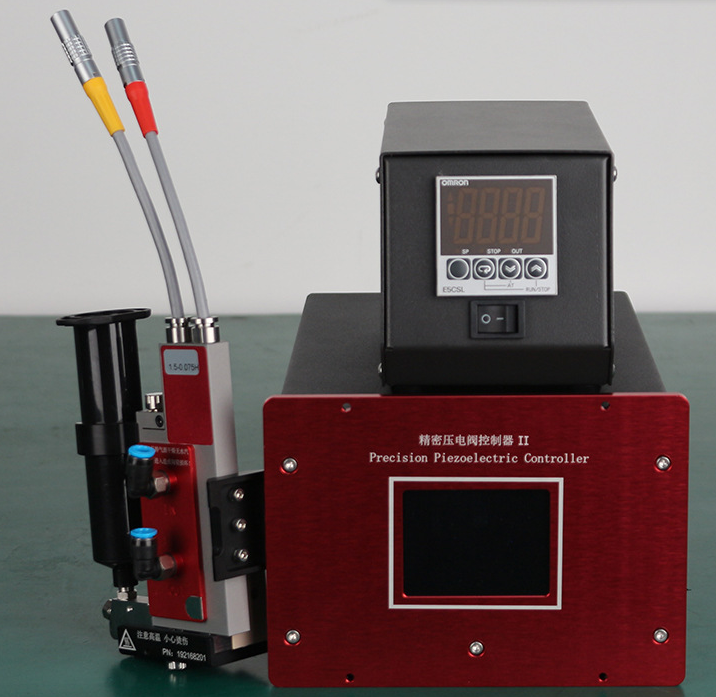

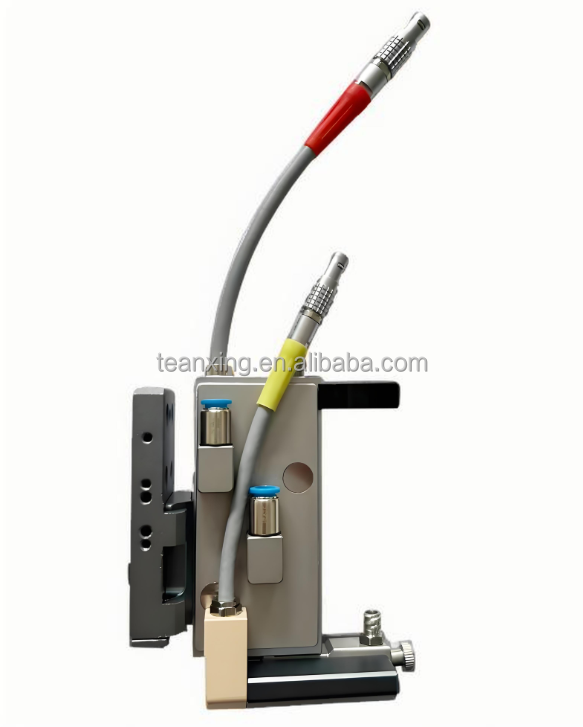

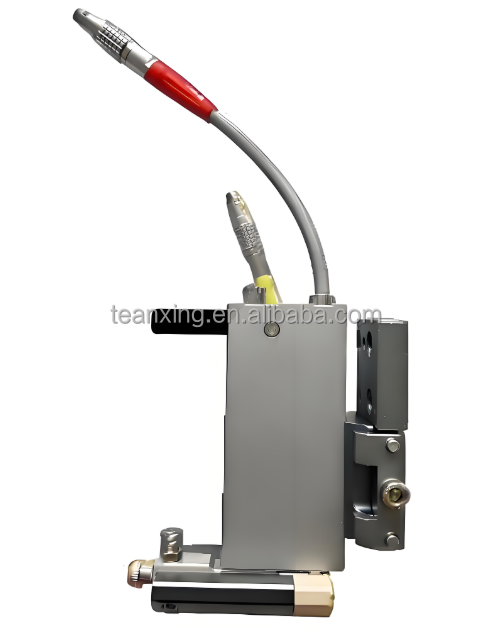

| Machine name | Automatic glue dispensing machine with piezoelectric valve |
| Model No. | TAX-DP551A |
| Working area | 500*500*100 mm |
| Moving speed | 500mm/s |
| Min. dispensing volume | 0.01ml (customizable) |
| Repeatability | ±0.01mm to 0.05mm |
| Program Storage | It can store 1,000 sets of processed data, and a single processing file can occupy up to 3M of storage space |

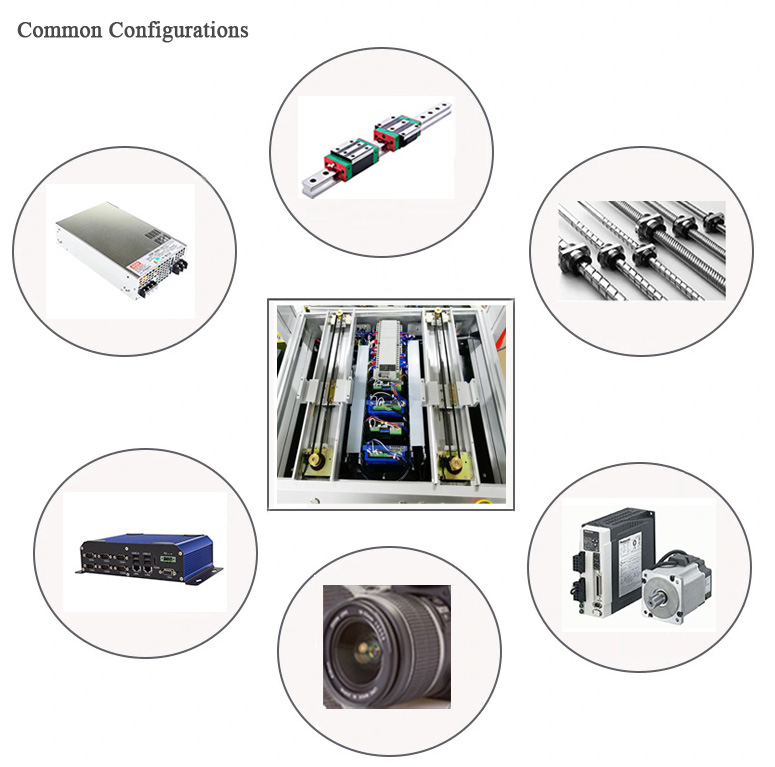

| Drive mode | Precision stepper motor+synchronous belt+linear guide rail/Servo motor+ball screw |
| Control system | Handheld teaching pendant |
| Working Temperature | 0-40℃ |
| Power | AC220/50Hz, AC110/60Hz |
| Air supply | 0.4-0.6MPA (4-6kg cm2) |
| Total equipment power | 350 W |
| Weight | 65 KG |
| Packing | Wooden box |
| Applicable glue | UV glue, AB glue, Epoxy (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, instant glue, silver glue, red glue, tin paste, cooling paste, anti-solder paste, transparent paint, screw fixation agent, etc. |

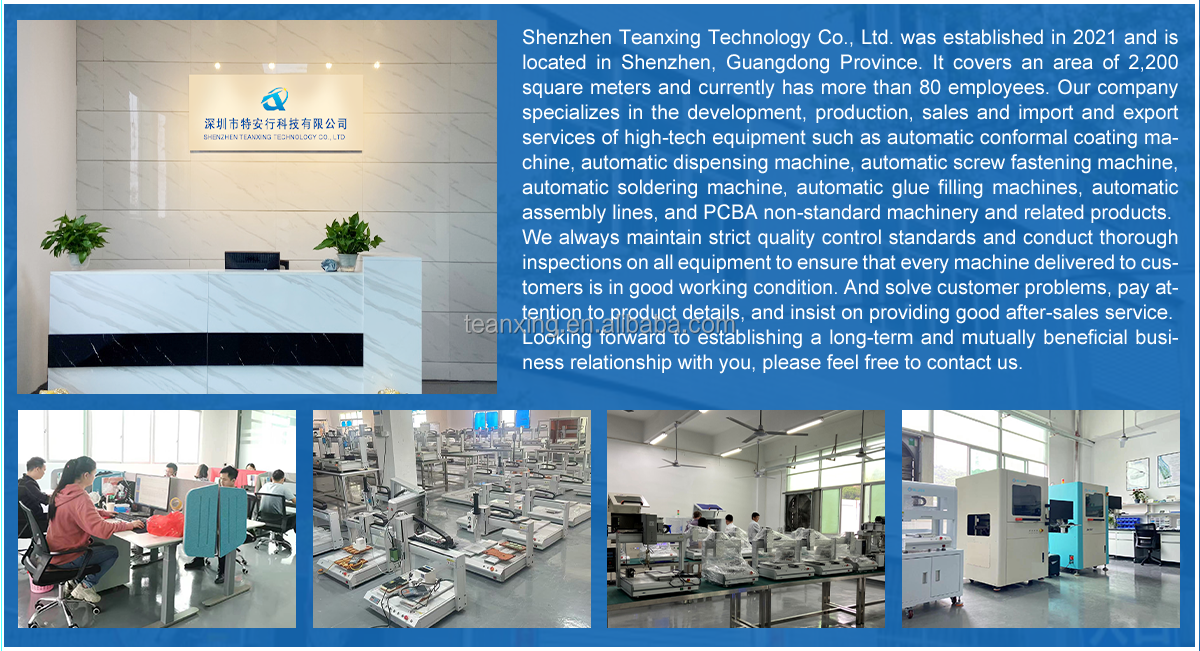

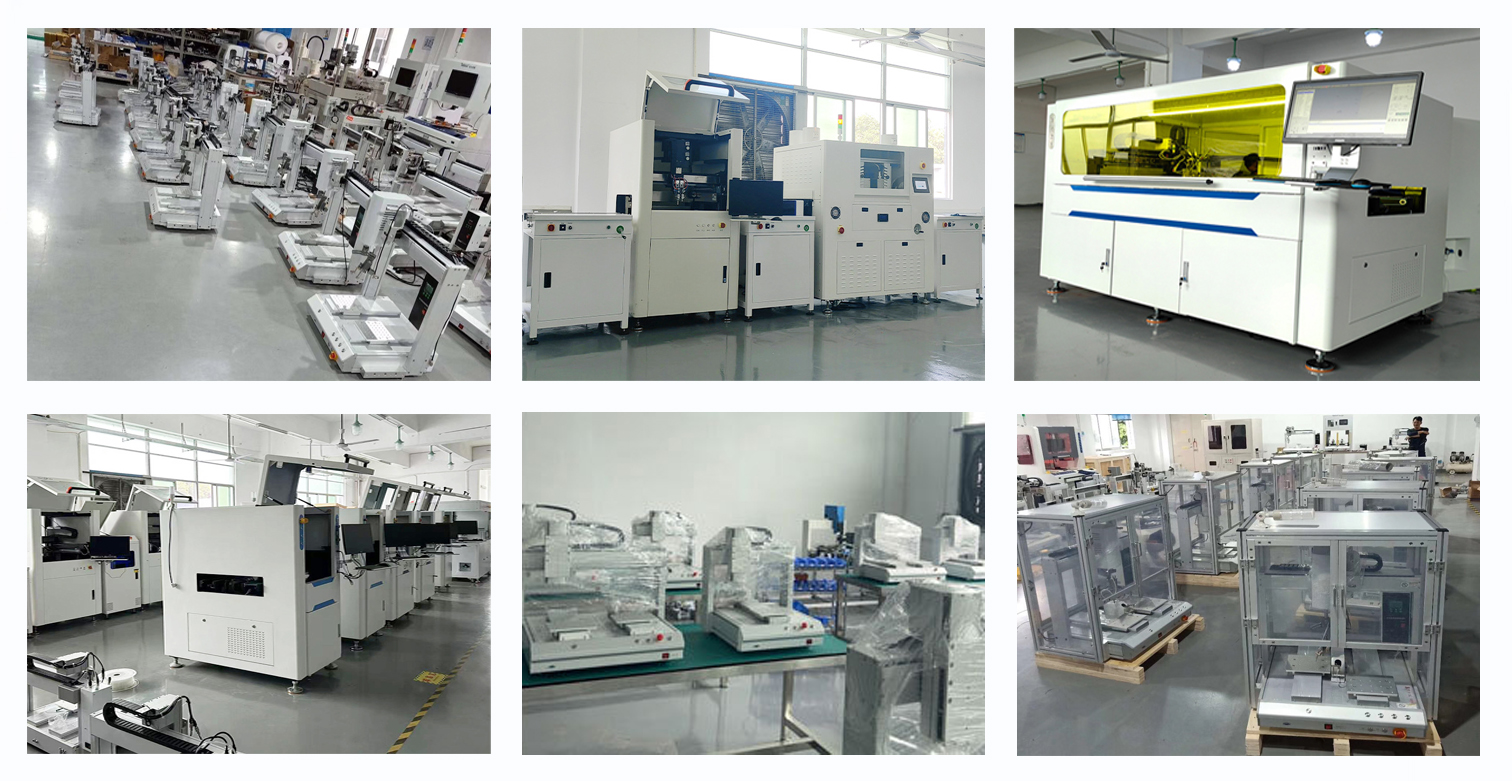

Company Overview

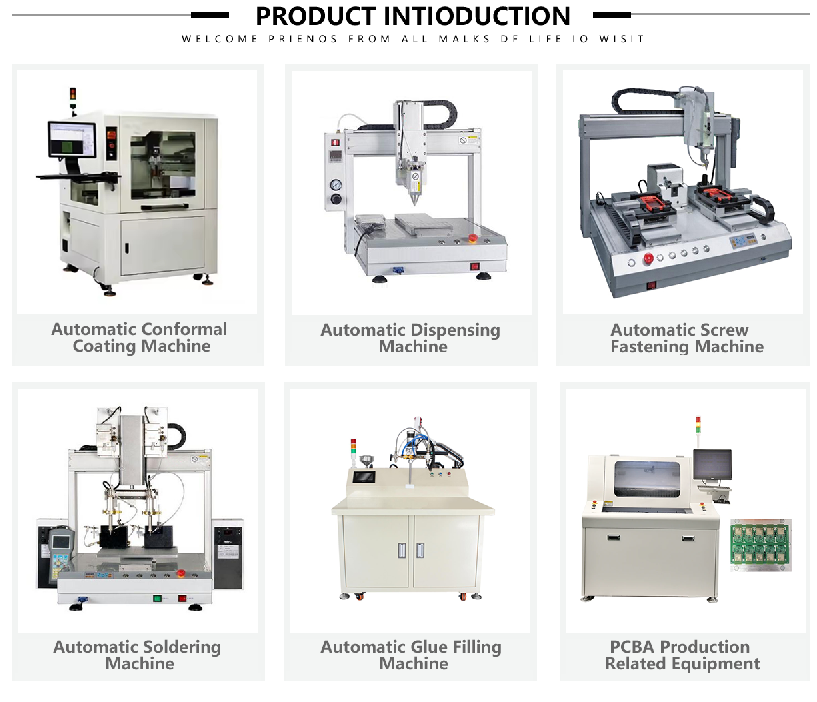

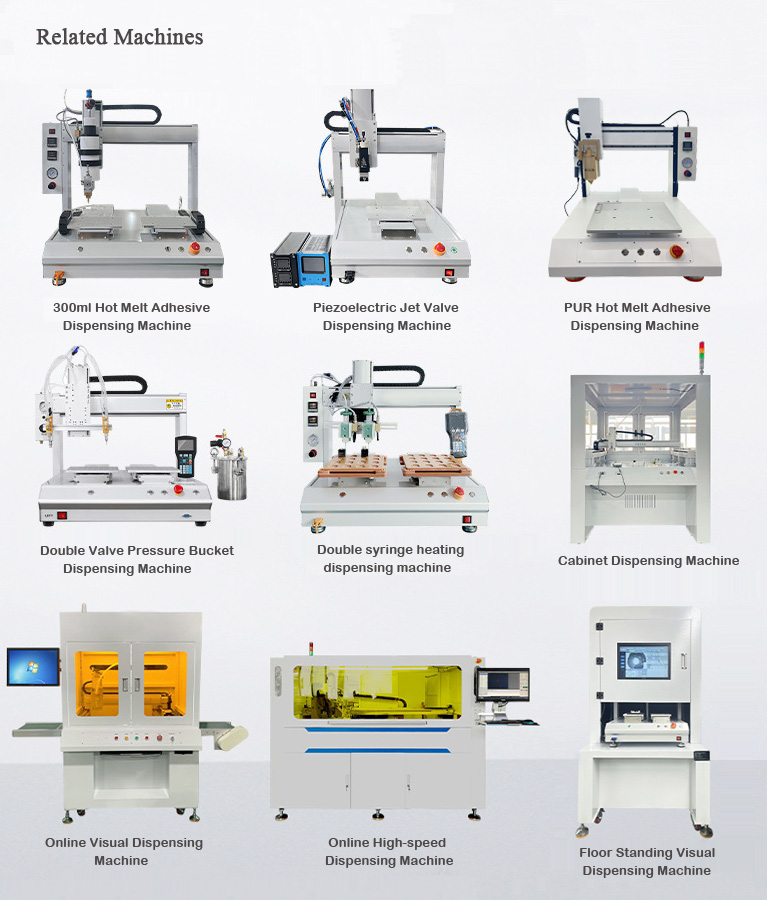

Recommended Products

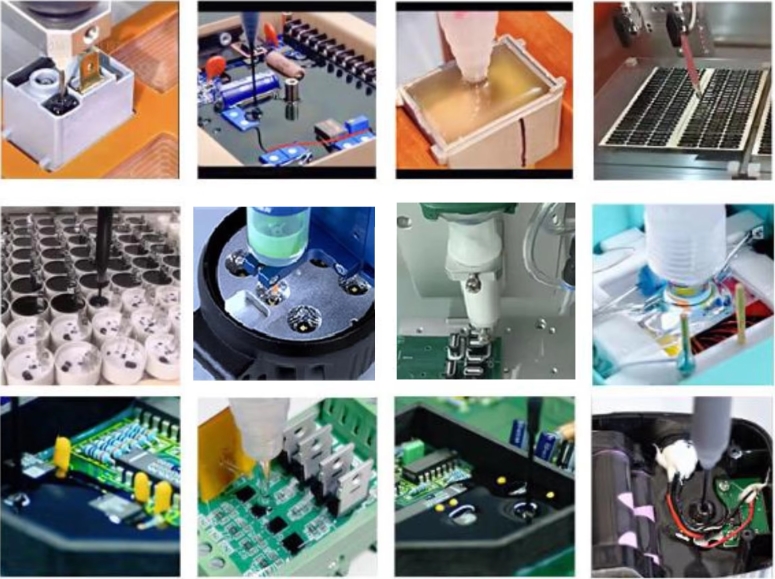

Application Scenarios

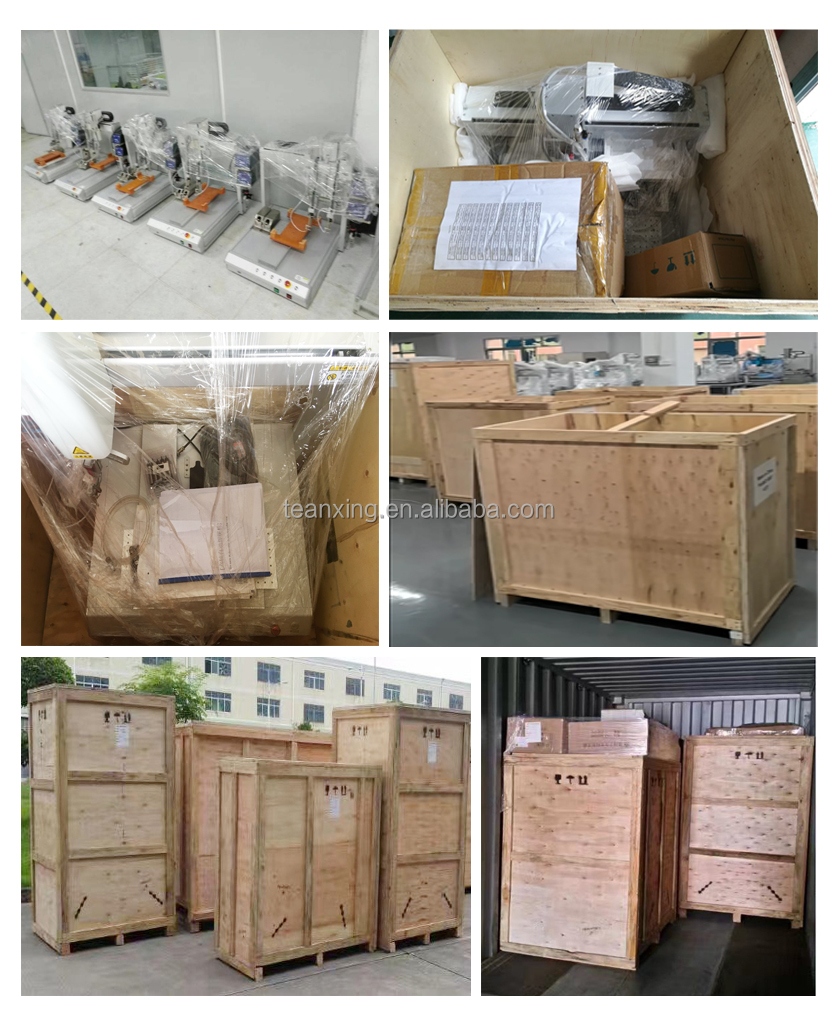

Packing & Delivery
Our Package and Shipment
* Standard Wooden Case with Vacuum Package Shipping Way: * By air, for samples and small packages via international express like DHL, UPS, EMS... * By sea, for large packages and volumes; * Other ways as requested. Delivery Time: * Within 35 Days.
