Personal Care Liquid Filling Machine Capping Automatic Pneumatic PLC Controlled High Speed Food Chemical Bottles China Factory
Product Description
Product Overview

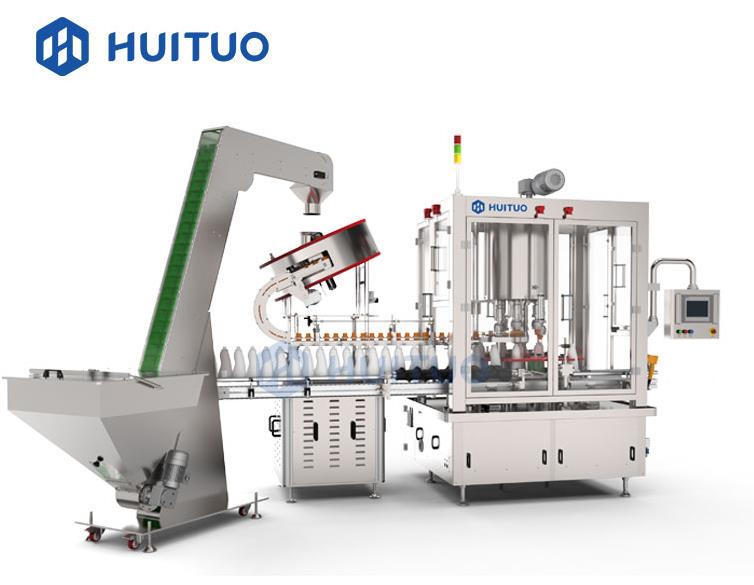

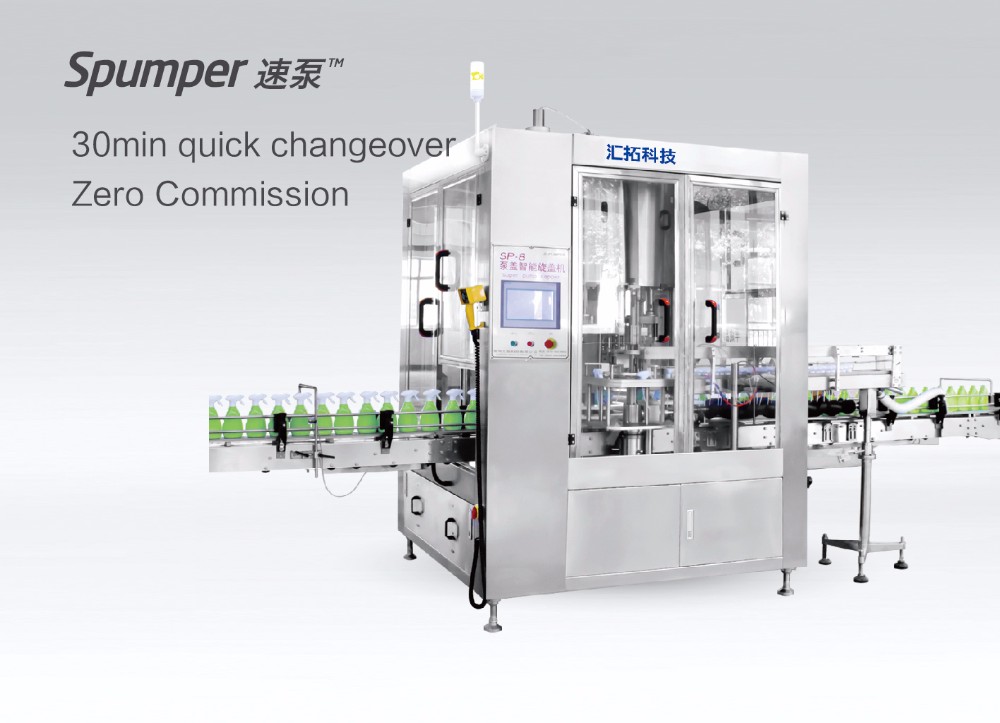

Servo Capping Machine
🌐
Wide Application
Able to deal with press-on or screw-on caps and spray, dispenser pumps and trigger and suitable for different types of bottles, whether cylinder, flat or irregular.
⚙️
Highly Customized
Customized design and manufacture based on customer requirements to ensure perfect integration with your production line.
🛡️
Performance Guaranteed
High efficiency and precision capping technology to ensure stable output and quality control.
Features At A Glance
- Working principle: continuous rotary
- Suitable bottles: cylinder, flat, and irregular shape bottles
- Suitable caps: regular pump, spray pump, foam pump, pull-push, flip-top, disc-top, Yorker and so on.
- Speed: 200bpm for pumps and 300bpm for screw-on caps
- Torque control: two types available; by servo (modify via touch screen) or by permanent magnet clutch
- Changeover parts in modular design, within 15min
- Capping efficiency 98%, and pass rate 99.9%
- Easy connection to front filling machine and later labelling machine

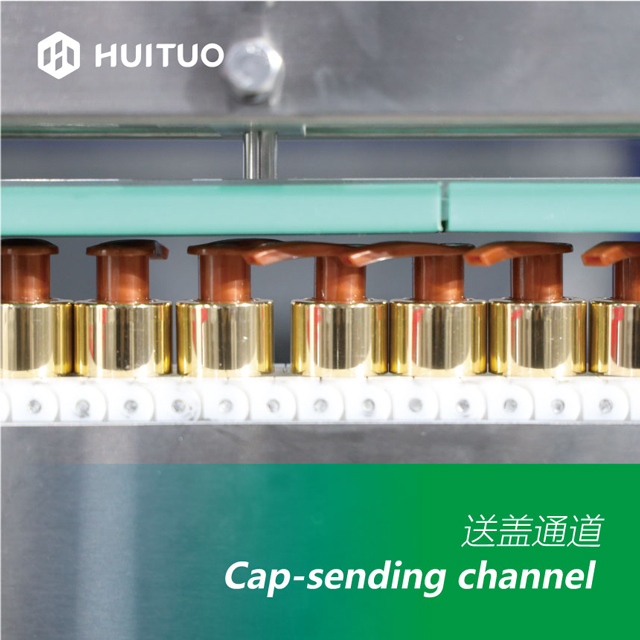

Cap-feeding by Servo Motor
Adopts servo motor for cap-feeding chain, which not only reducing noise, but also avoid cap-stuck.

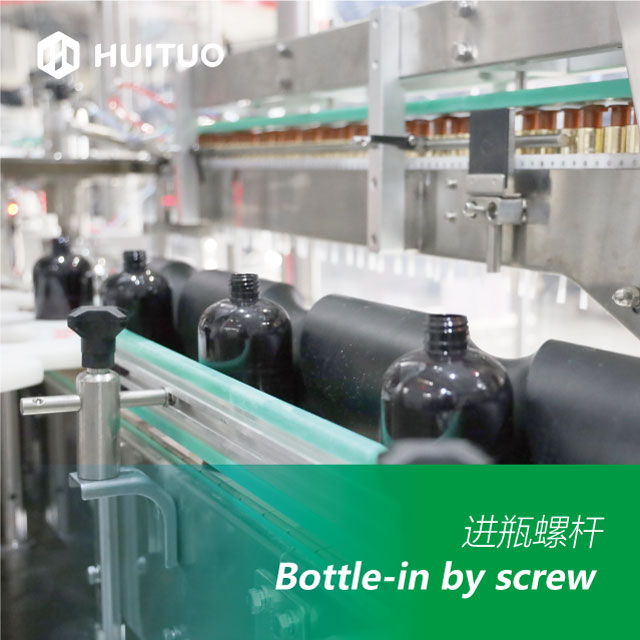

Profiled Screw Rod Feeding
The screw drive follows the main drive, whose angle can be set via touch screen to make it match with the starwheel. Integrated sensor for "no bottle, no capping".

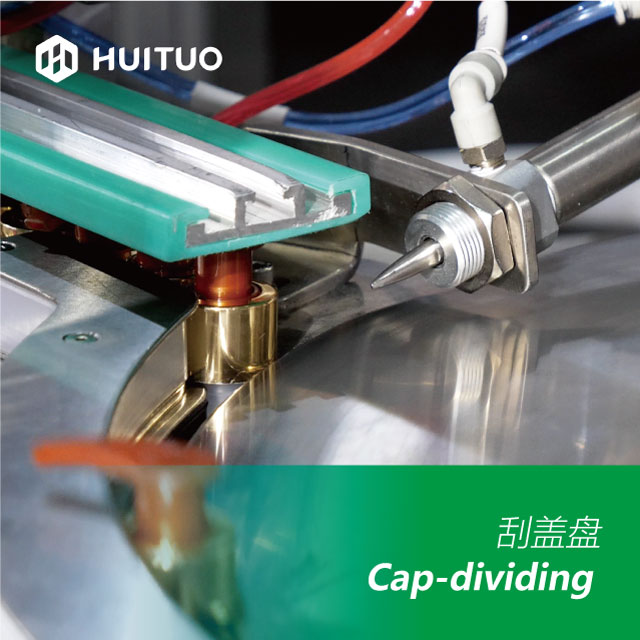

Precision Cap-dividing
Customized by cap shape. Only the parts contacting the cap need to be changed for different diameters, ensuring efficient modular transition.

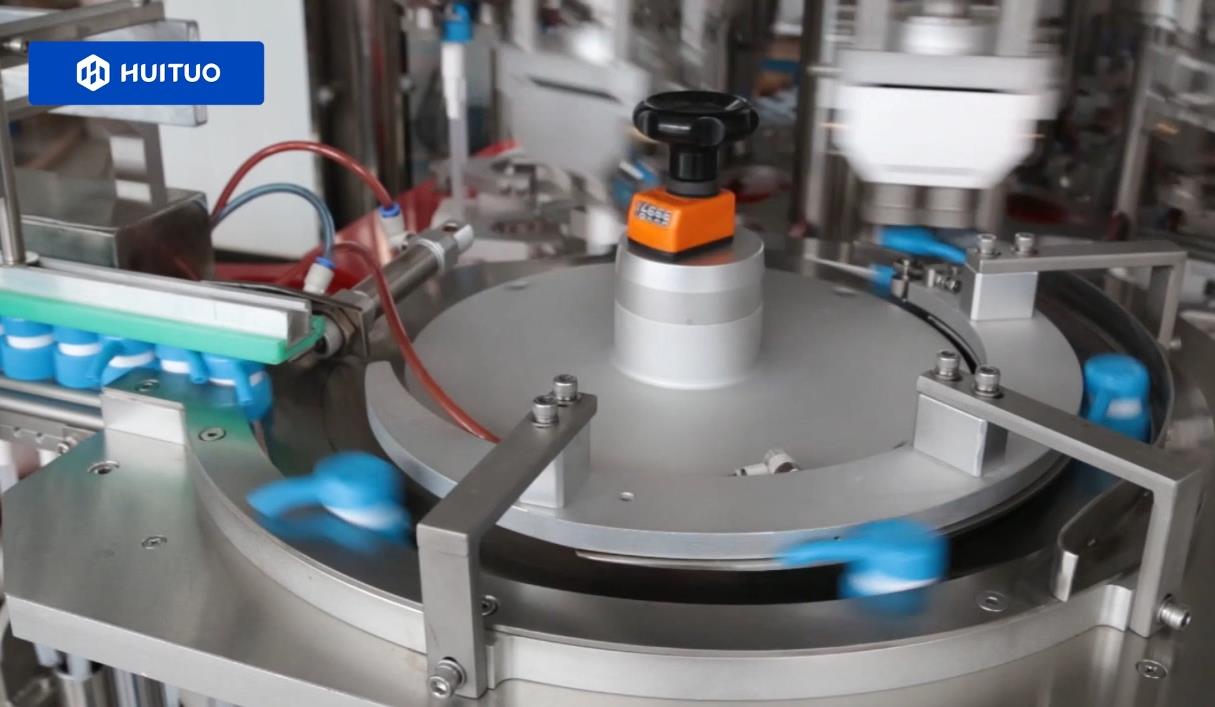

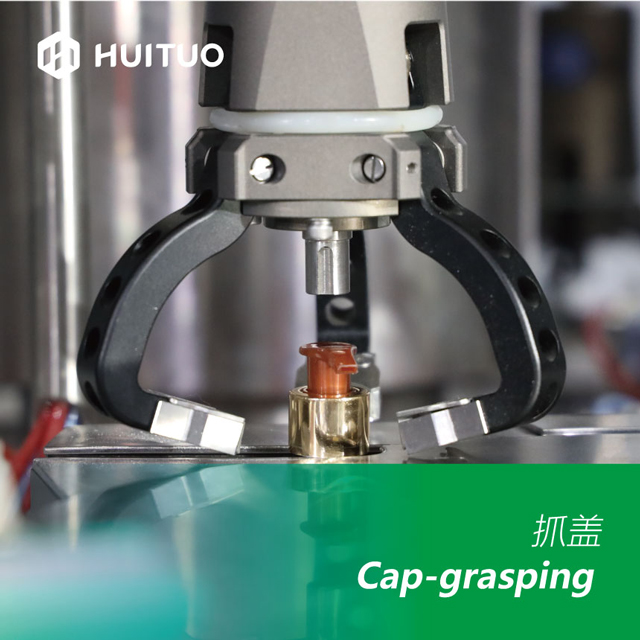

Servo Capping Control
Each capping head is controlled by one servo motor. Closed loop control ensures precise torque modification via HMI.

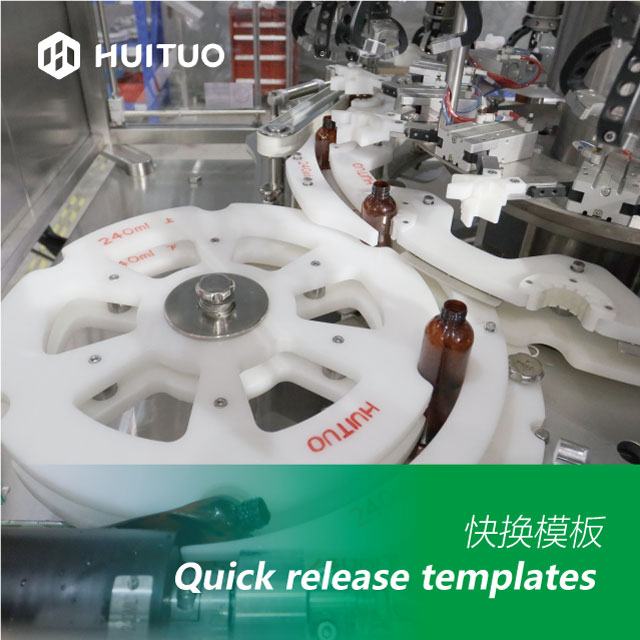

Template Changing System
Made of PP and designed by bottle shape. Stabilizes positioning and prevents scratching while allowing quick changeover.

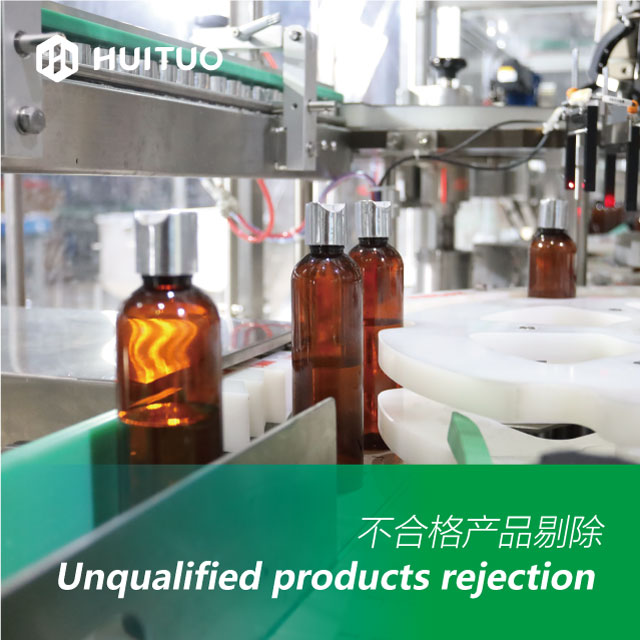

Unqualified Product Rejection
Dual-conveyor with sensors automatically splits unqualified products (no cap, no inner tube, tilted cap) to another conveyor.
Frequently Asked Questions
Q1: What types of bottles and caps is this machine compatible with?
The machine is designed for cylinder, flat, and irregular shape bottles. It handles various caps including regular pumps, spray pumps, foam pumps, pull-push, flip-top, and disc-top caps.
Q2: How fast is the capping process?
The machine can reach a speed of up to 200bpm for pump-style caps and 300bpm for standard screw-on caps.
Q3: How is the capping torque controlled?
There are two options: through servo motors which allow modification via the touch screen, or via a permanent magnet clutch.
Q4: Does the machine handle different bottle sizes easily?
Yes, it uses modular design templates made of PP. Changeover for different bottle shapes and sizes can be completed within 15 minutes.
Q5: What happens if a cap is applied incorrectly?
The machine features an unqualified product rejection system. Sensors detect issues like missing caps or tilted caps and automatically divert them to a separate conveyor.
Q6: Can it be integrated into an existing production line?
Absolutely. It is designed for easy connection to front-end filling machines and back-end labeling equipment.
