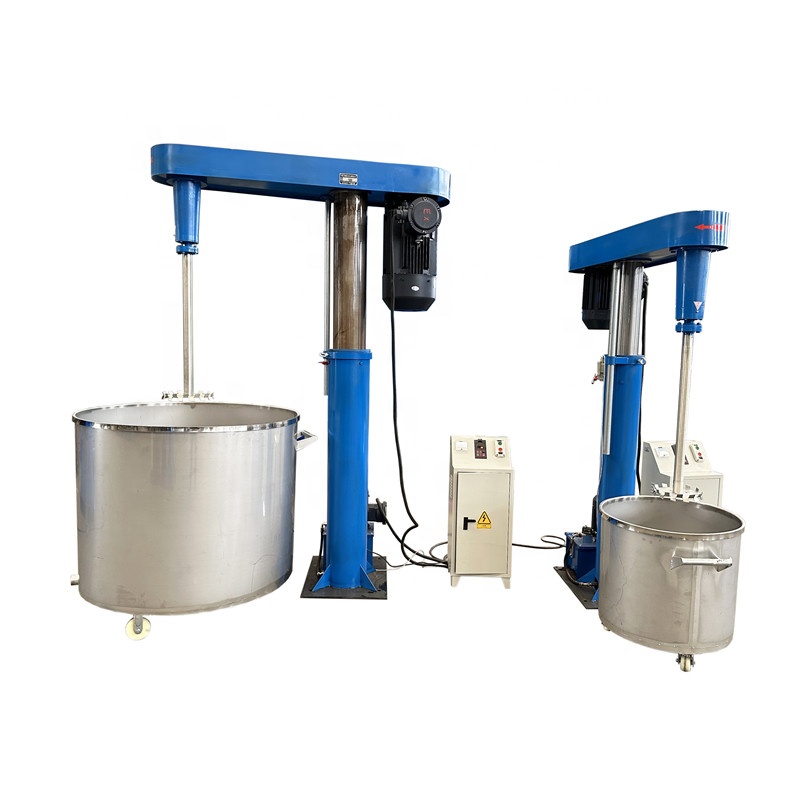

500L Paint Dispersing Mixing Machine 7.5KW High Speed Acrylic Coatings Disperser Emulsion Dissolving Dispersion Dissolver Mixer
Product Description
High-speed Disperser is a highly efficient mixing device that can be widely used in fields such as chemical industry, paint, inks, coatings, pigment and cosmetics. It's primarily for the mixing, dissolving, dispersing, and homogenizing of liquid-powder materials.
Through the high-speed rotation of a serrated dispersing disc, it generates intense shear forces and turbulence, enabling rapid depolymerization, refinement, and uniform distribution of materials.
⚡ High Efficiency: Rapid refinement and uniform distribution for complex formulas.
Application Field
- Coatings, inks, dyes, pigments
- Cosmetics, pharmaceutical lotion
- Adhesive, resin, lithium battery slurry
- Building thick coatings, dispersion of titanium dioxide slurry

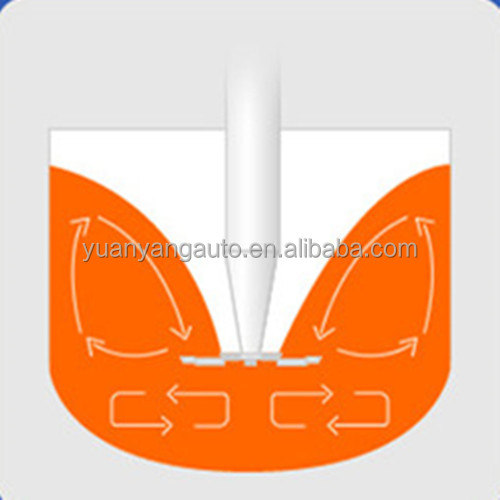

Working Principle
🔄
Circulation and Vortex:
The high-speed rotation of the dispersing disk causes the slurry to form a rolling annular flow, and the surface particles spiral down to the bottom of the vortex.
💥
Shear Impact Zone:
A turbulent zone is formed at 2.5-5 mm from the edge of the dispersing disk, where the material is subjected to strong shear and impact.
🌊
Circular Flipping:
Forming upper and lower streams outside the area to promote sufficient circulation of the slurry.
Selection Suggestion
Match the most suitable configuration according to the needs:
Lab scale: 0.4KW, 0.75KW, 1.1KW (suitable for rapid formula validation).
Small batch production: 1.5KW, 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW.
Middle scale production: 11KW, 15KW, 18.5KW, 22KW, 30KW, 37KW.
Large scale production: 45KW, 55KW, 75KW, 90KW, 110KW.
| Model | FS-7.5 |
| Mixing capacity | 200-500L |
| Main motor | 7.5KW Explosion-proof |
| Hydraulic lifting height | 1100 mm |
| Hydraulic motor | 0.75KW Explosion proof |
| Speed | 0-1450 RPM adjustable |
| Material | Contact part: stainless steel Non-contact part: carbon steel |
| Net size | ≈ 1650 * 600 * 1730 mm (L * W *H) |
| Net weight | ≈ 450 KGS |

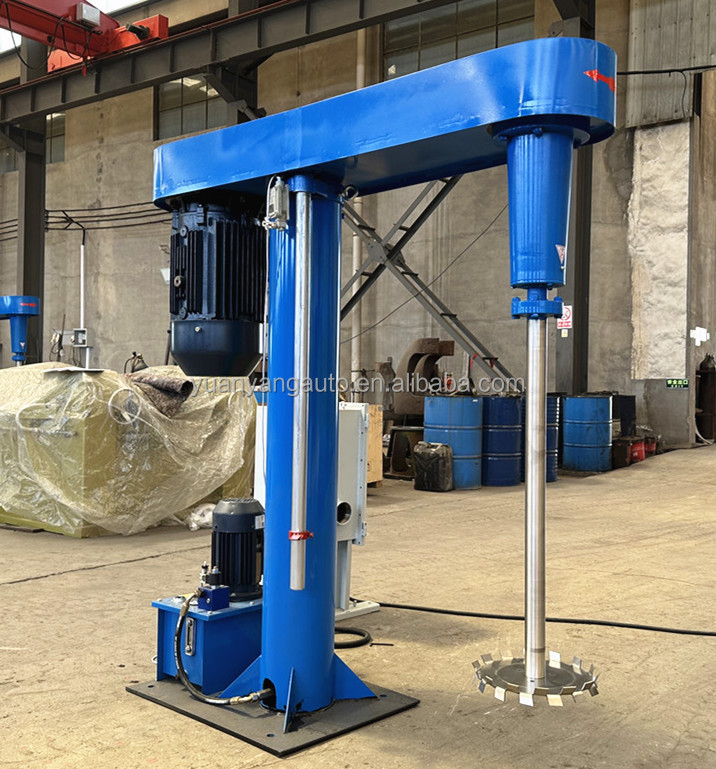

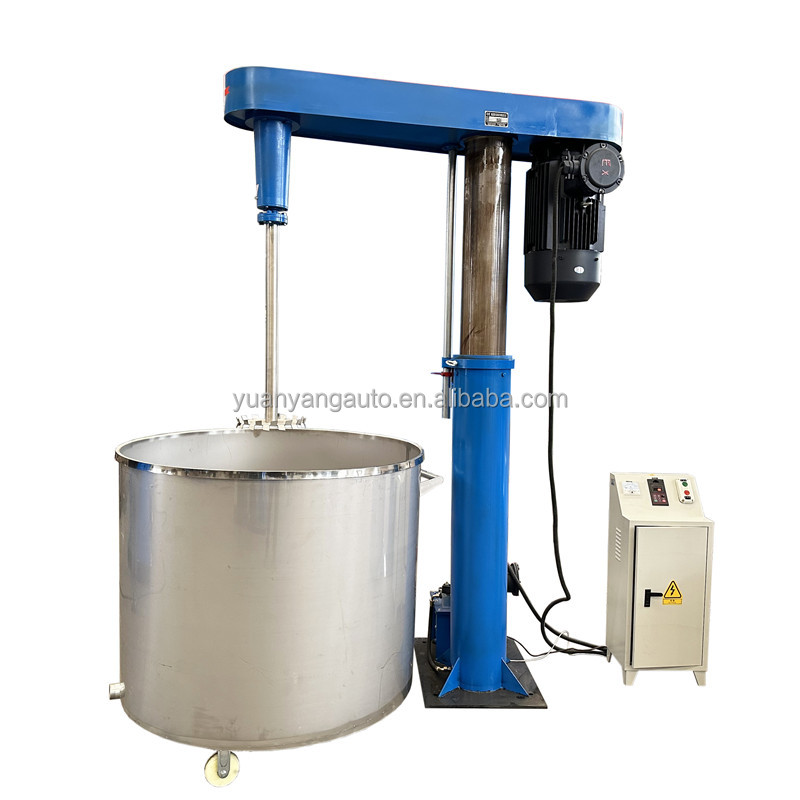

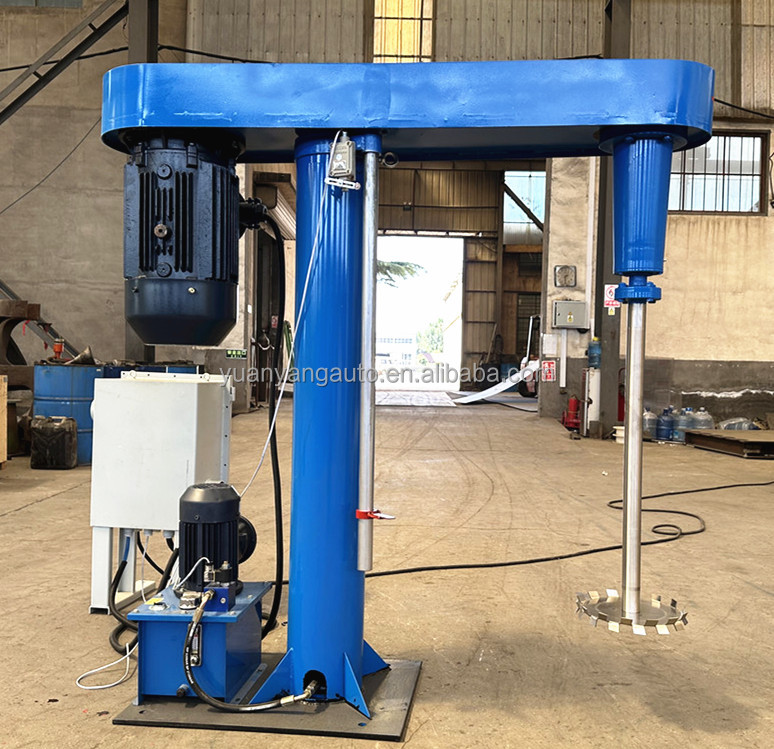

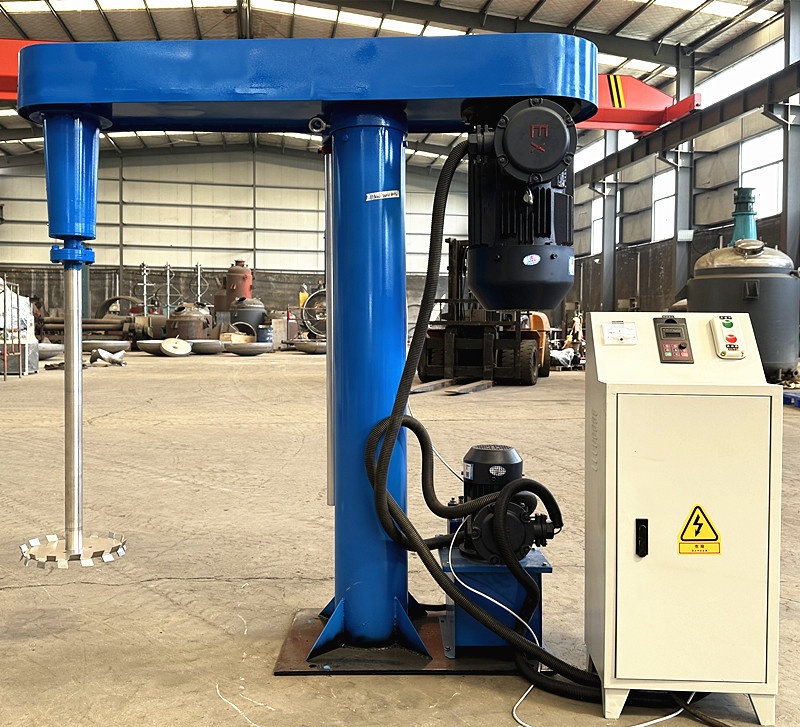

Look from all angles:

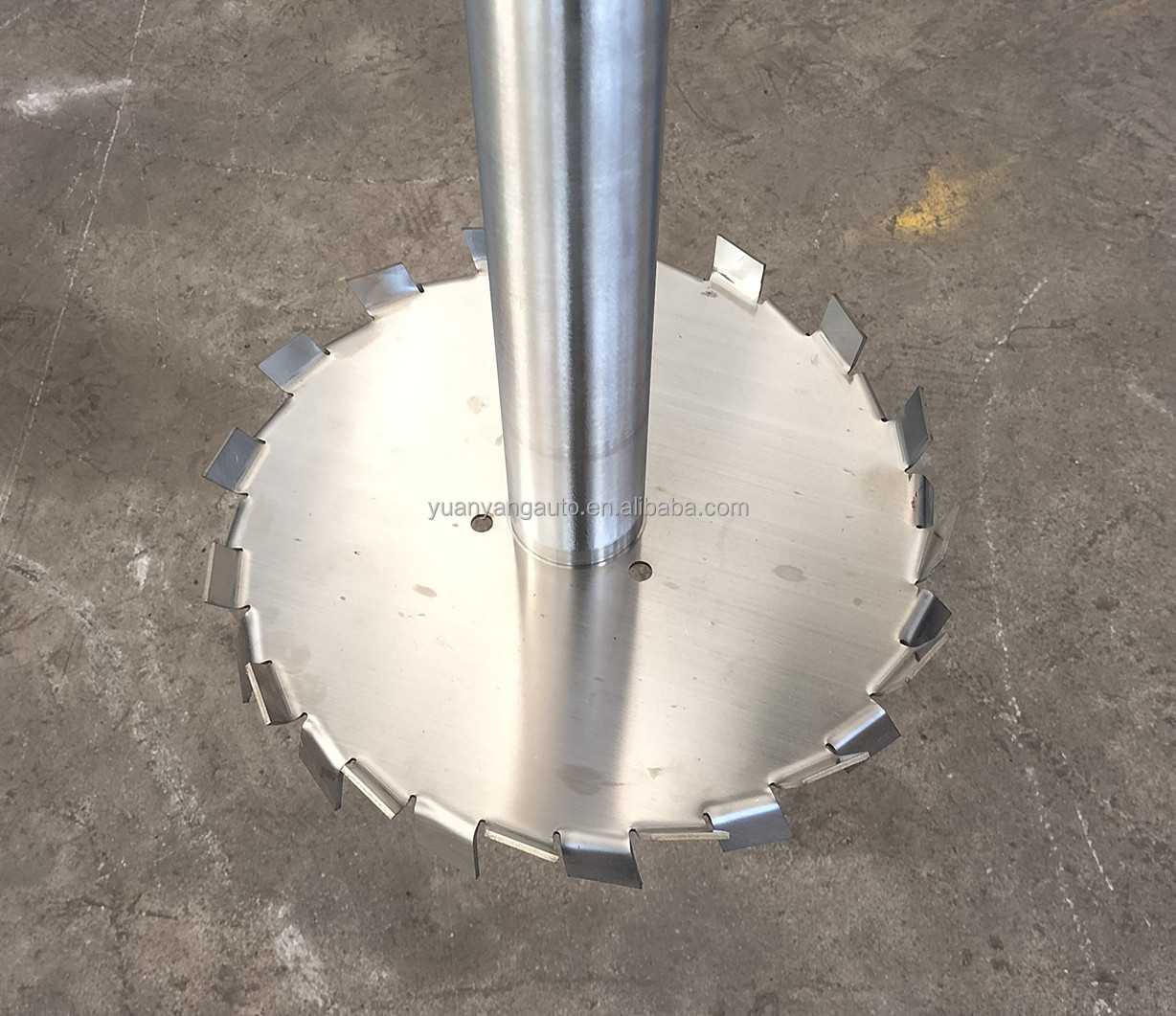

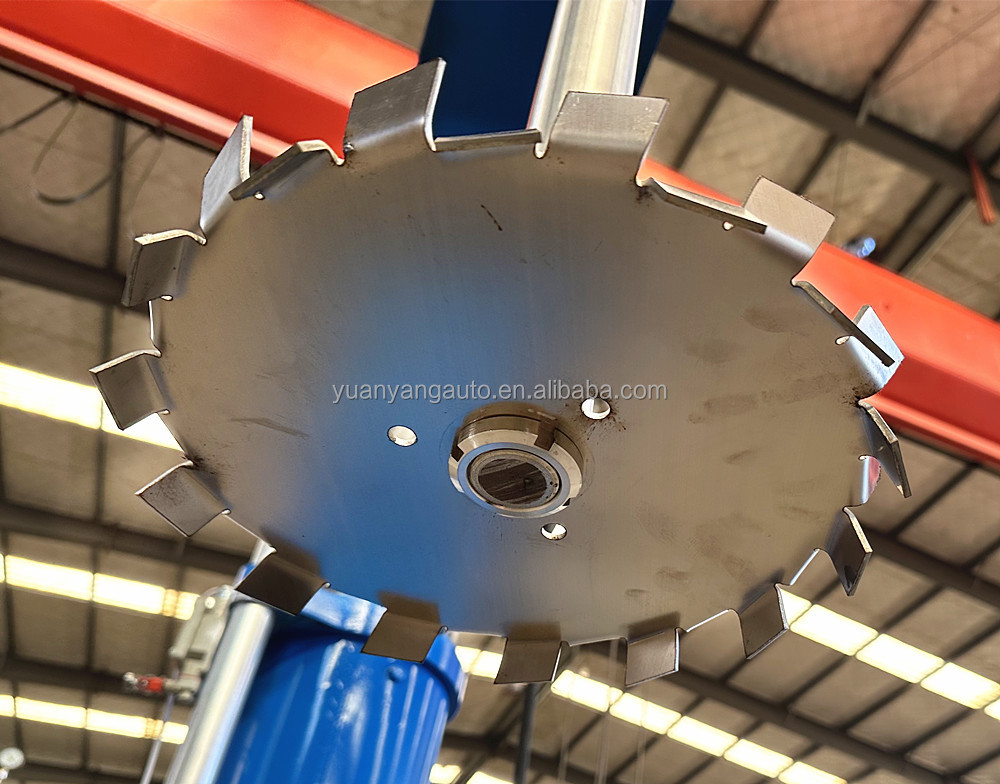

Disperser disc Details:

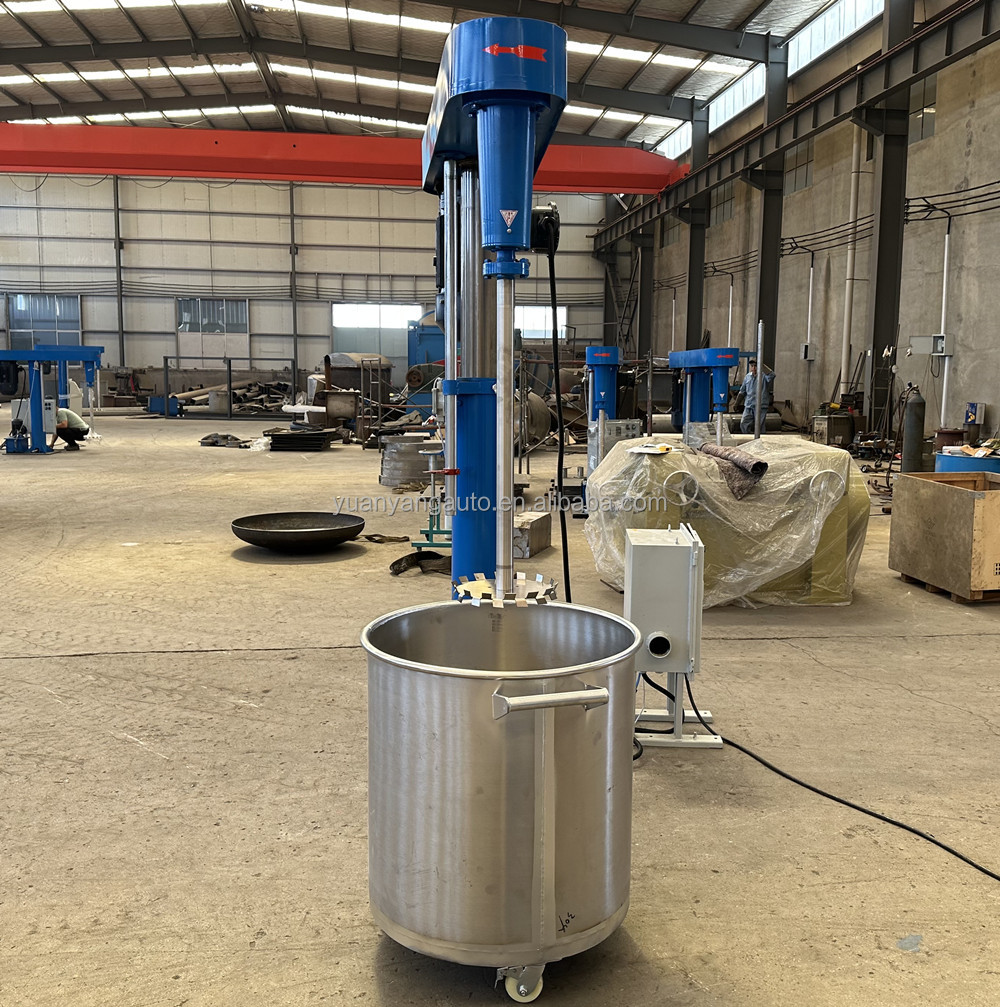

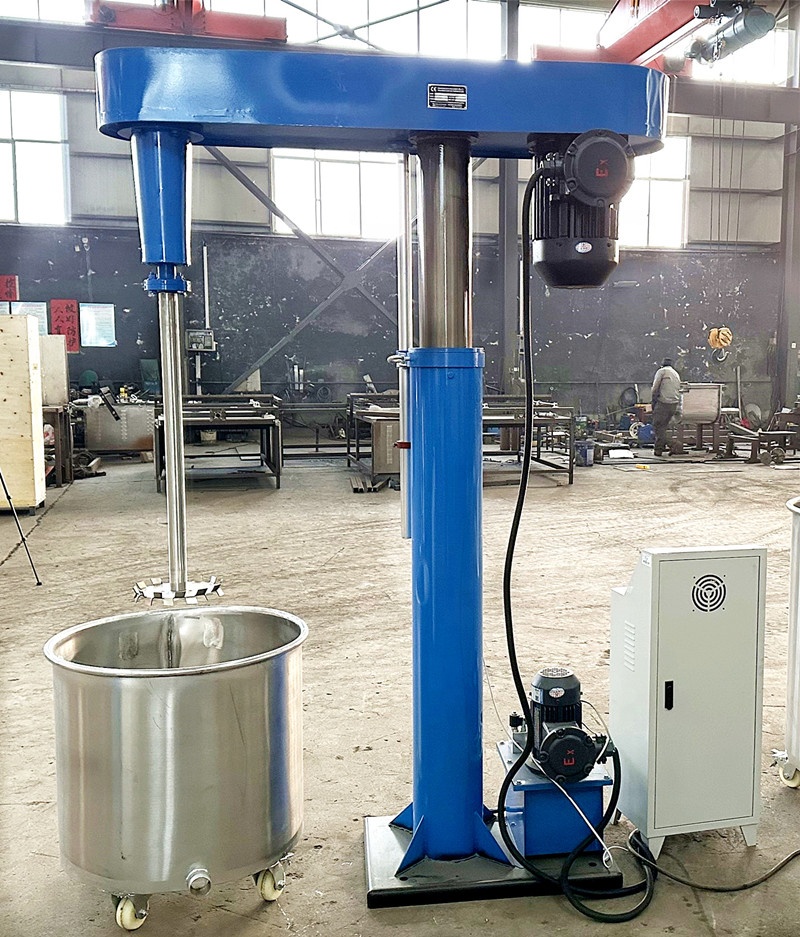

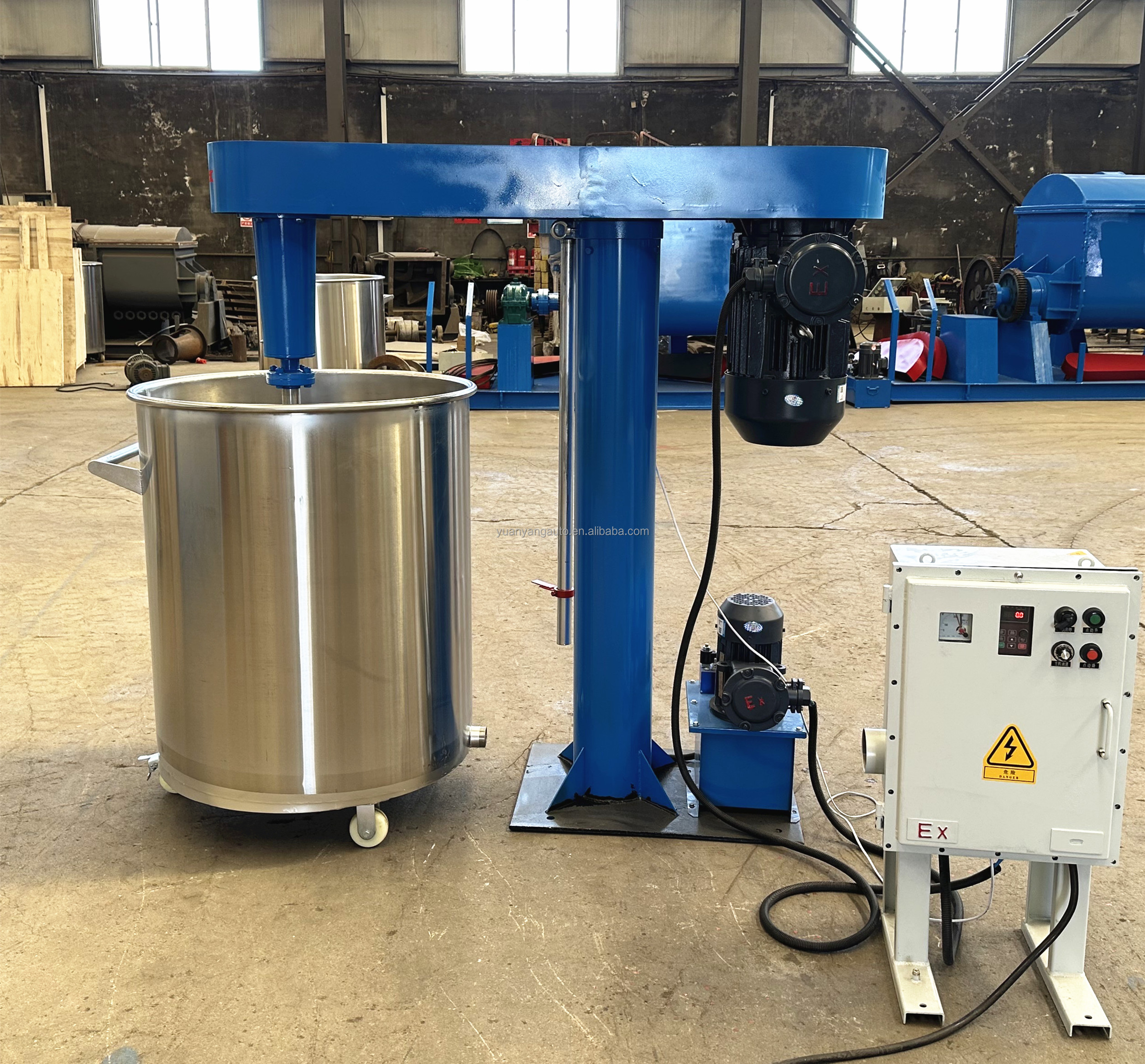

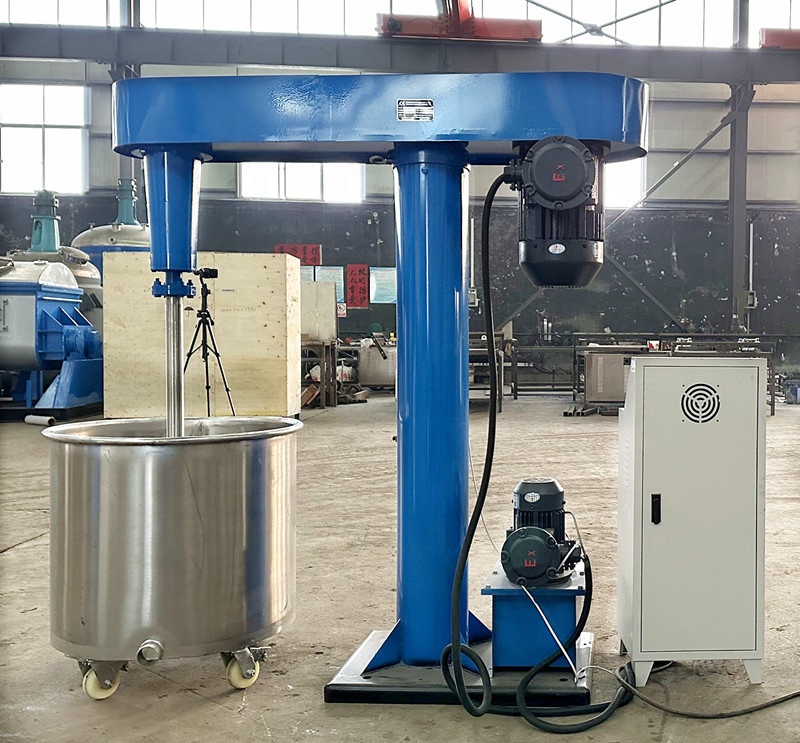

Together with 500L Tank (Lifting operation):

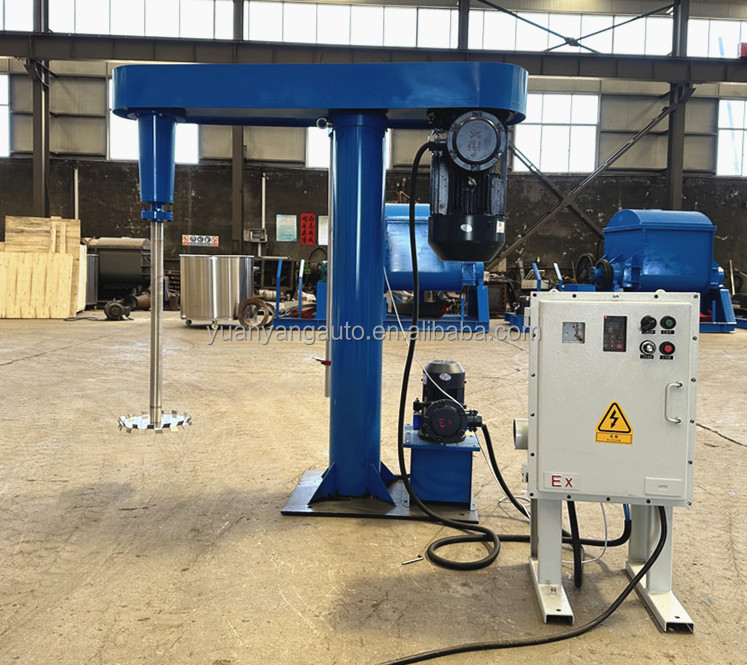

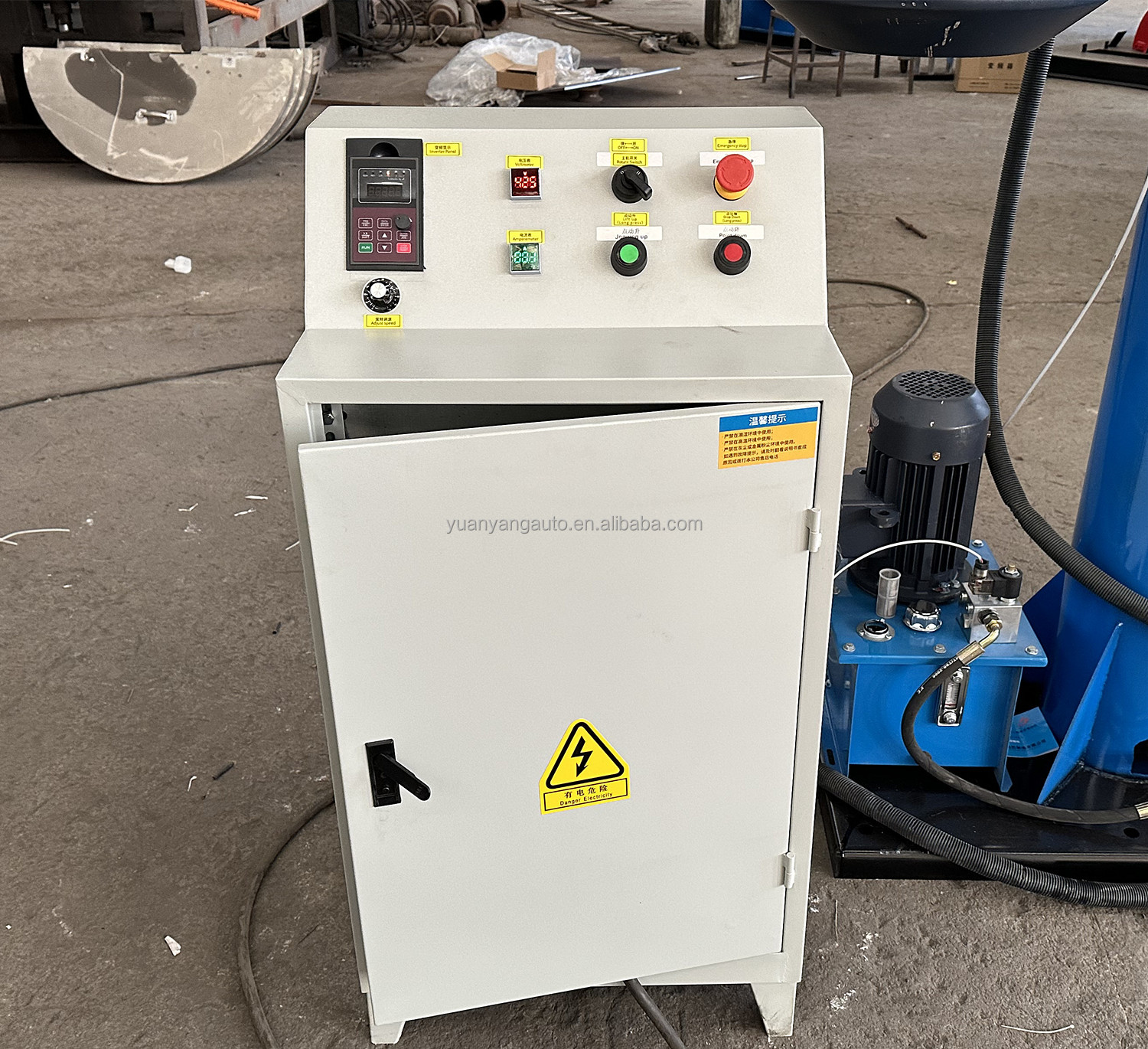

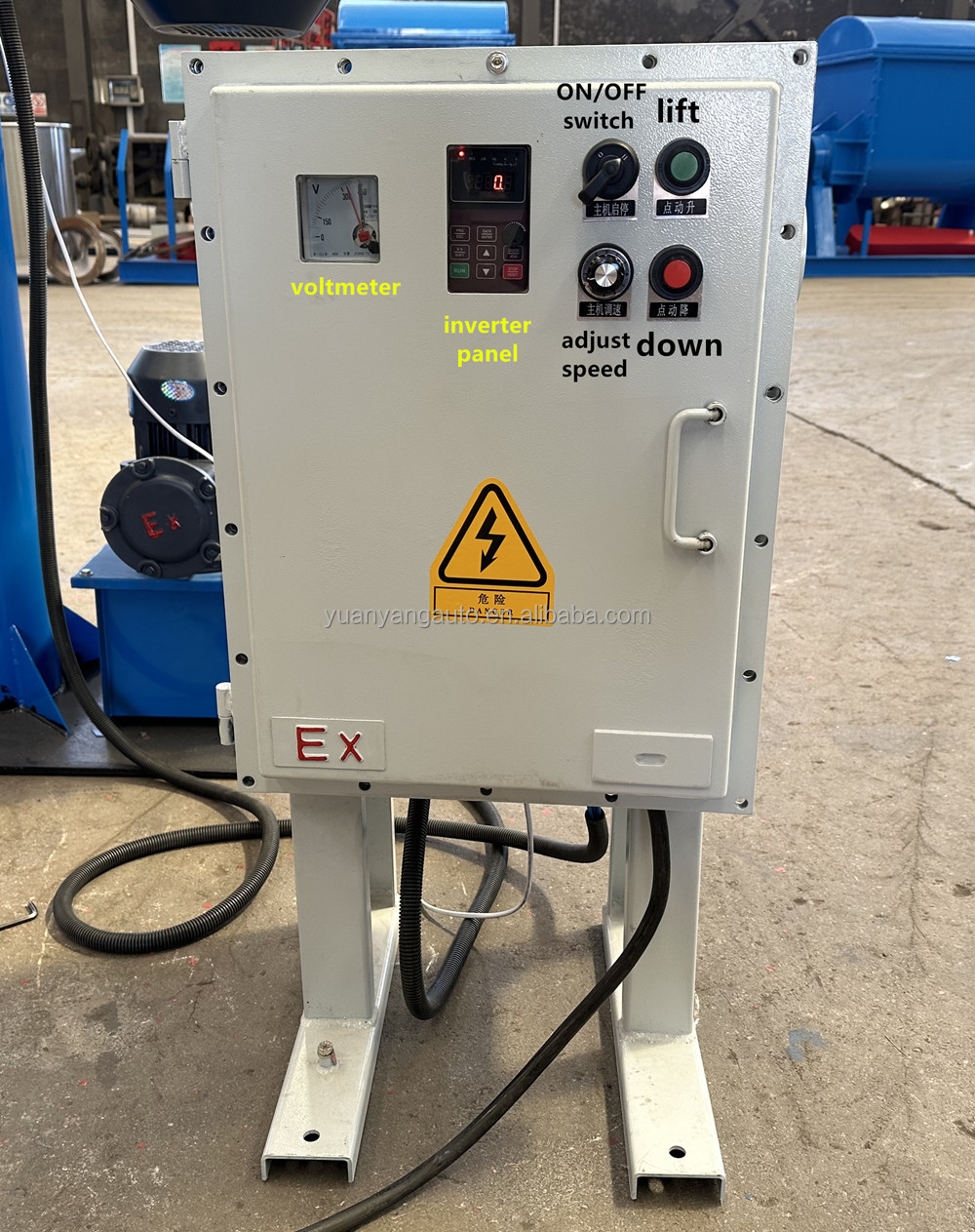

Electric Cabinet:

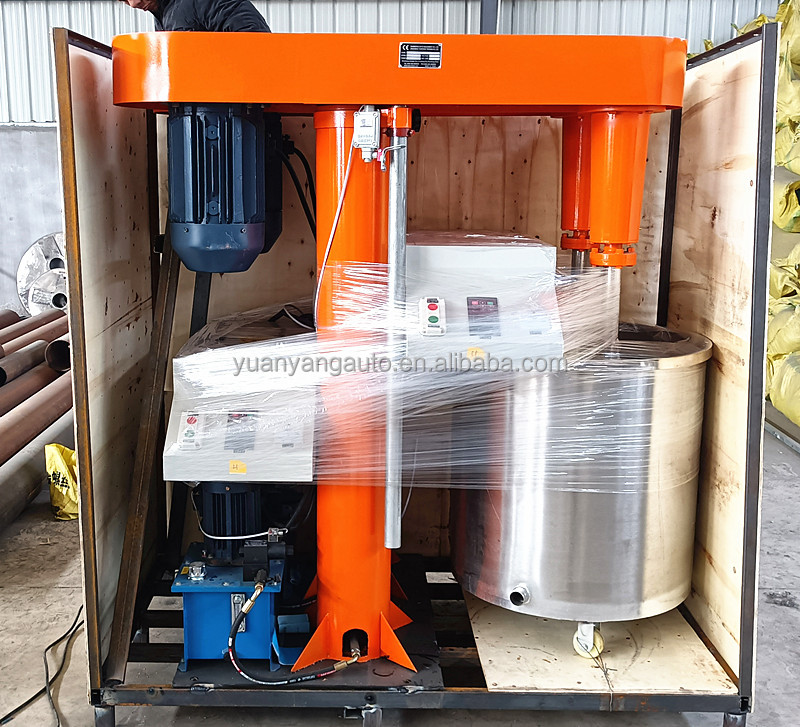

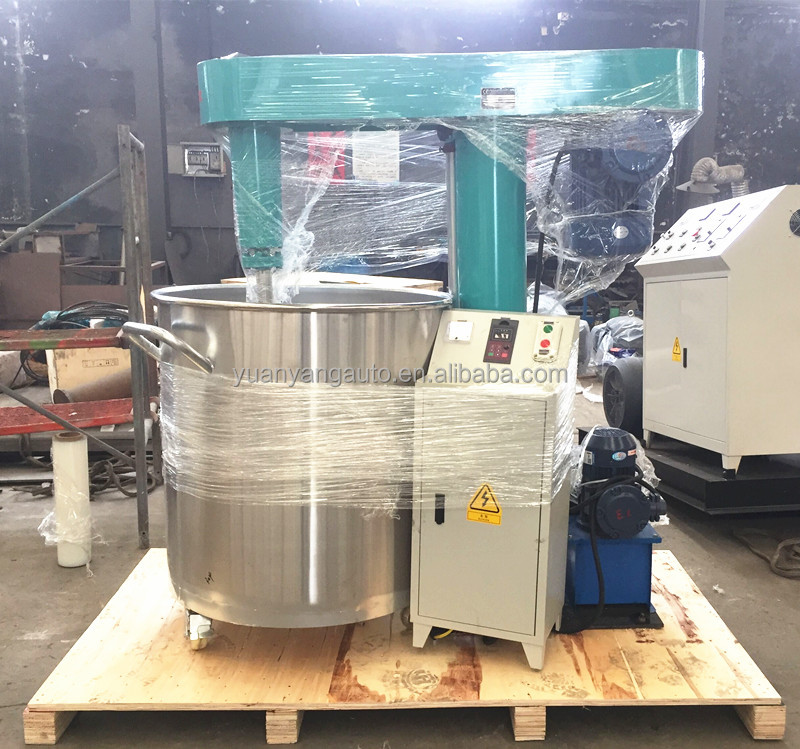

Standard plywood case or full container packing, optional transportation by sea, air, or train.

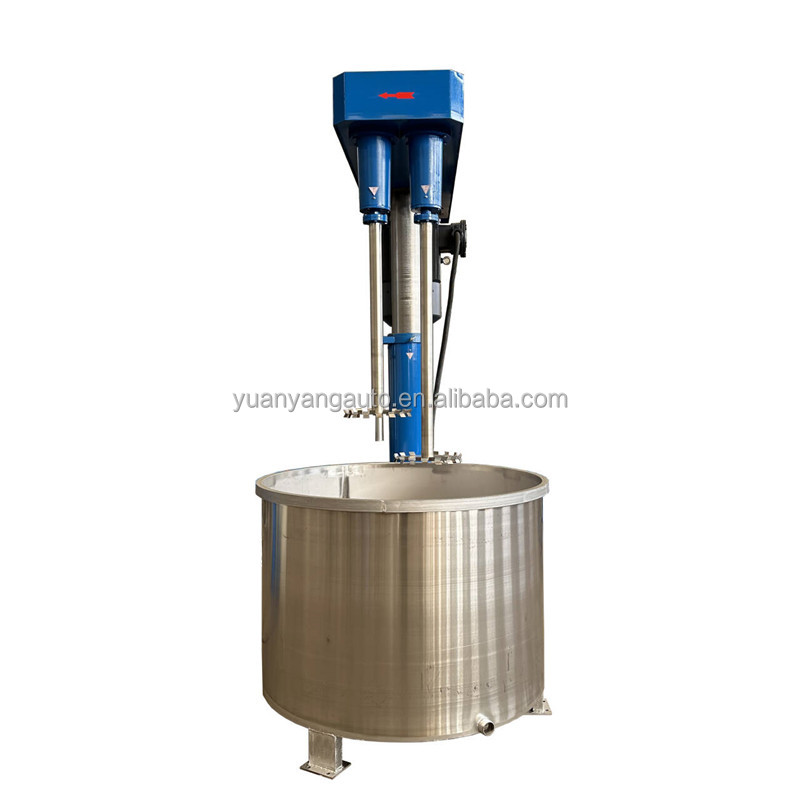

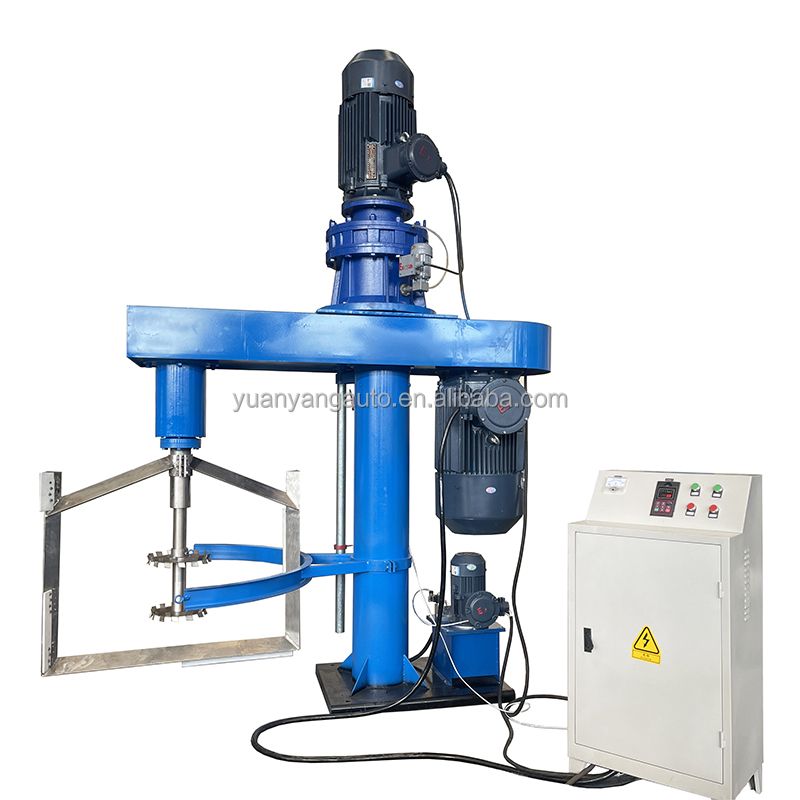

45KW Double shaft Disperser
(1500-2000L capacity)
45KW Disperser with Scraper
(500-1000L capacity)

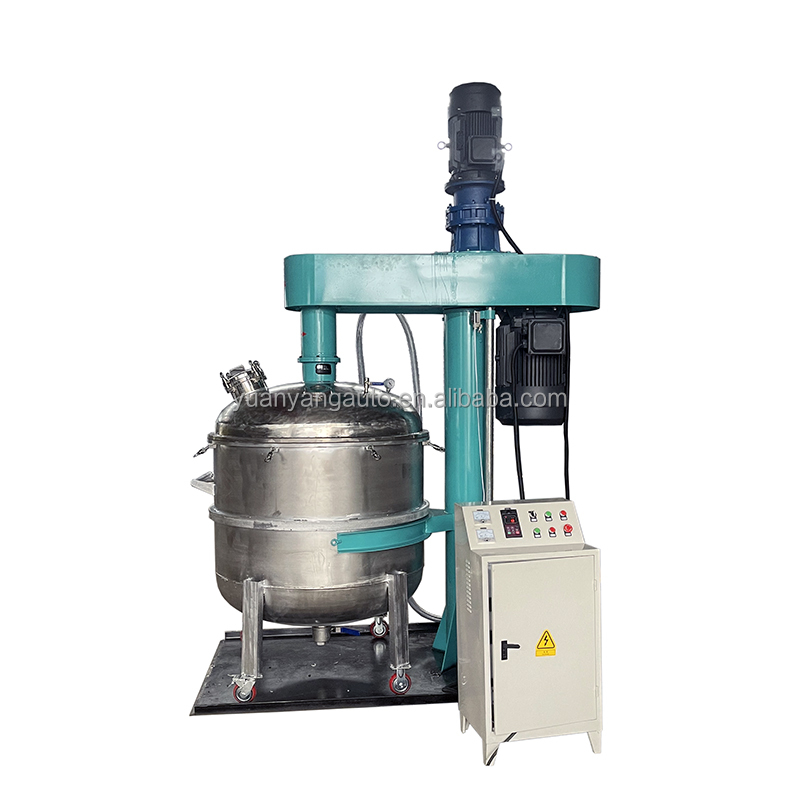

45KW Vacuum Disperser
(500-1000L capacity)

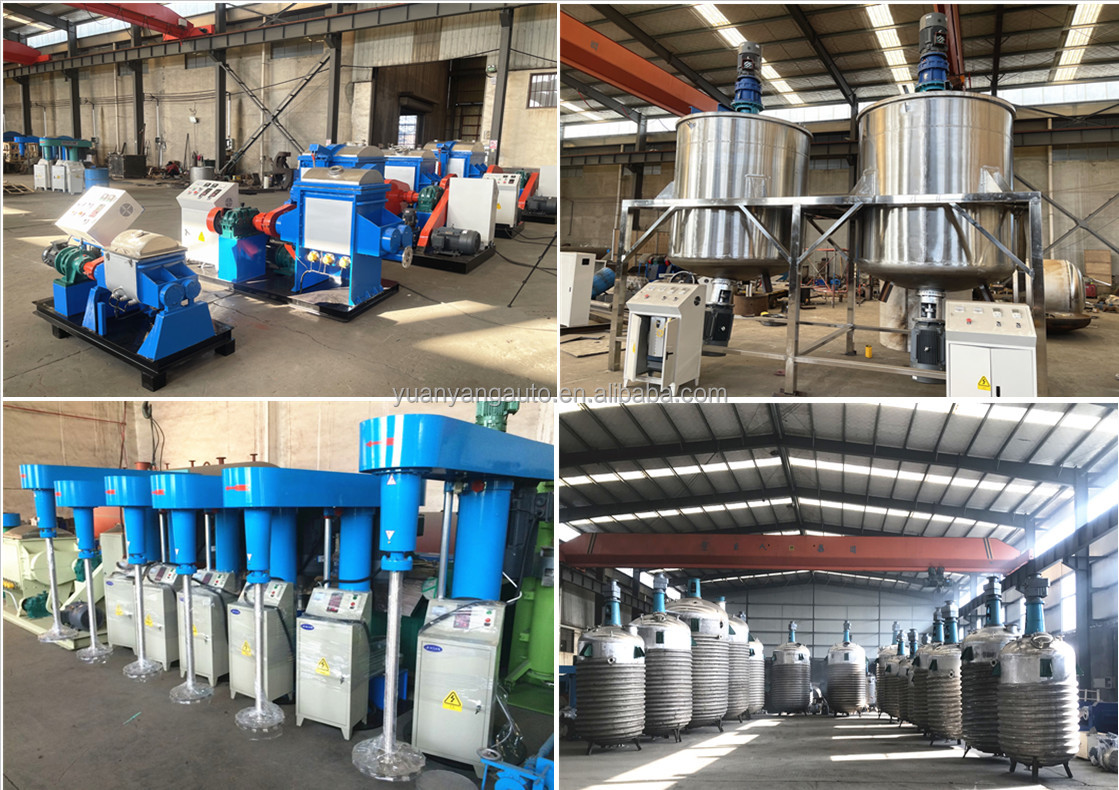

We focus on design, manufacture and sales of Chemical Machinery, including Reactors, Sigma Kneaders, Ribbon Mixers, Paint Mixing Machines, and complete production lines. We maintain a strict QC&QA system and a professional technology research and development center.
What is the standard warranty for the high-speed disperser?
The guarantee period is 12 months starting from the arrival of goods. Under normal use, we provide replacement for faulty components like motors or reducers on our account.
How is the equipment inspected before delivery?
Internal QC performs a detailed general inspection and trial operation to ensure everything runs normally before the product is shipped.
How do you handle technical issues after the warranty expires?
We provide lifetime maintenance advice and technical guidance. For parts replacement beyond warranty, we provide them at cost price and assist in finding the most favorable transport mode.
What happens if the equipment is damaged due to operating error?
We provide customers with free technical guidance for replacement and repairing, even if the fault is due to operational mistakes.
How do I choose the right power for my production volume?
Selection depends on capacity: 0.4-1.1KW for lab use, 1.5-7.5KW for small batches, up to 110KW for large-scale production. We recommend matching the motor power to your specific mixing volume and material viscosity.
What materials are the contact parts made of?
The contact parts of our dispersers are made of high-quality stainless steel to ensure durability and prevent contamination, while non-contact parts typically use robust carbon steel.
